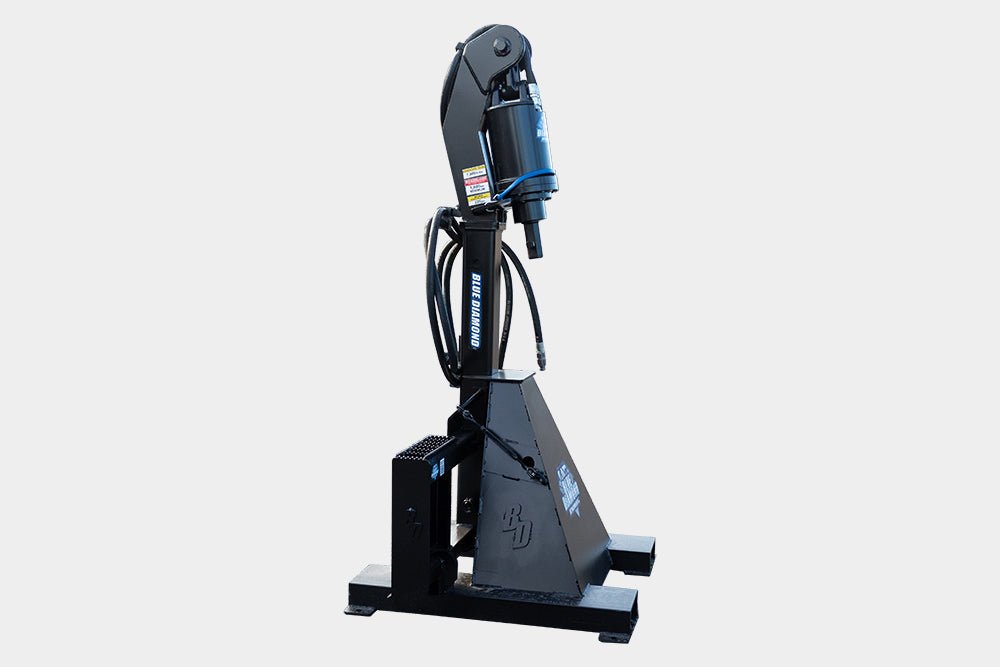

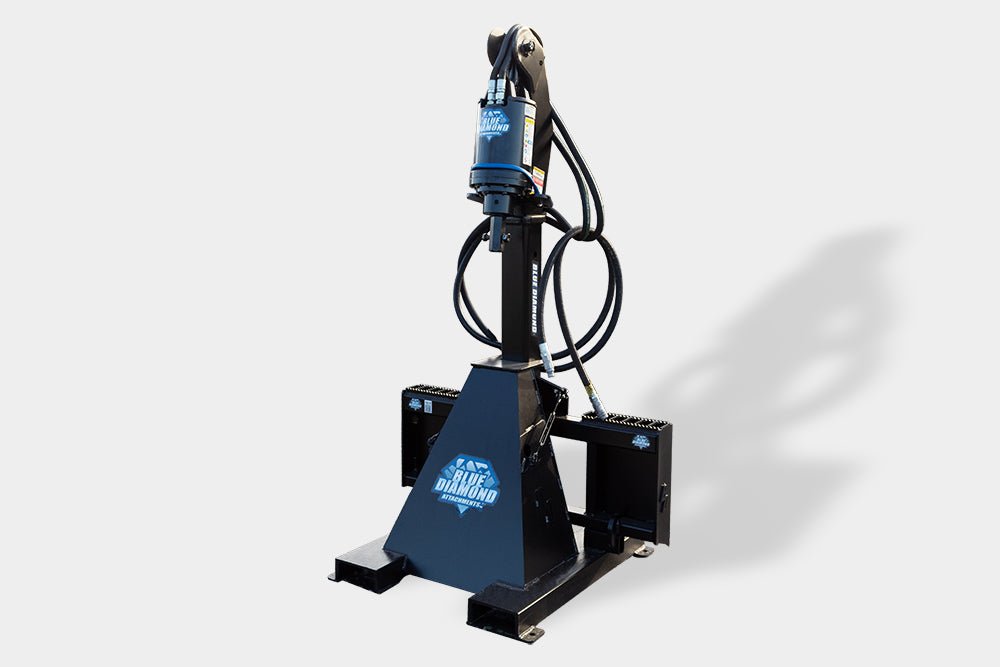

Blue Diamond Telescopic Auger Mount

Increase your reach for added drilling depth or helical pile installation with the Blue Diamond Telescopic Auger Mount.

Blue Diamond Attachments' piling and drilling mounts increase your reach for added drilling depth or helical pile installation. These extension mounts use only the highest quality steel and strict quality control to ensure reliable performance. The telescopic extension mount has a retracted length of 78 inches and is extendable by 36 inches, providing the flexibility you need for various drilling applications. Designed for skid steers with a minimum rated operating capacity of 1,800 lbs, this mount supports auger drives up to 7,000 ft-lbs of torque and auger bits up to 220 lbs.

Features

• 78" retracted length
• Extendable by 36" for increased reach
• Minimum skid steer rated operating capacity: 1,800 lbs
• Maximum auger drive torque: 7,000 ft-lbs
• Maximum auger bit weight: 220 lbs
• Highest quality steel construction
• Strict quality control
• Optional transport stand available
• Hose sets available with pressure gauge option
• Multiple hose set configurations available
