Vestil Tie Rod Jibs

$612⁰⁵

Shipping calculated at checkout.

Capacity (lbs)

300 600 1000 2000

Product variants

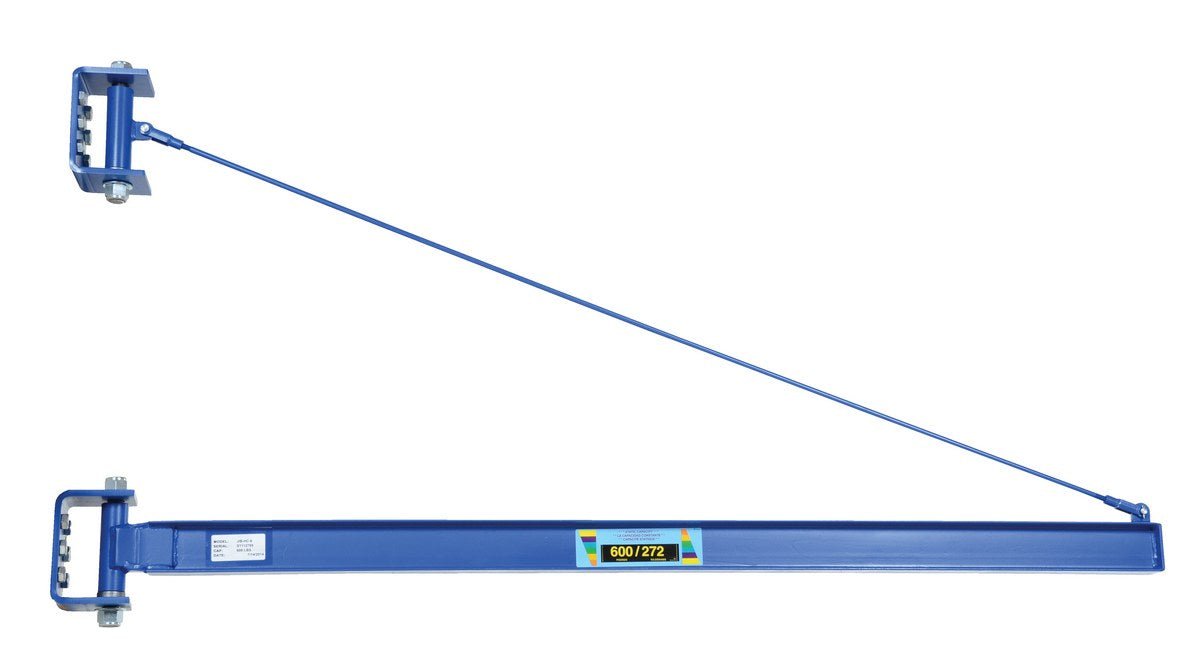

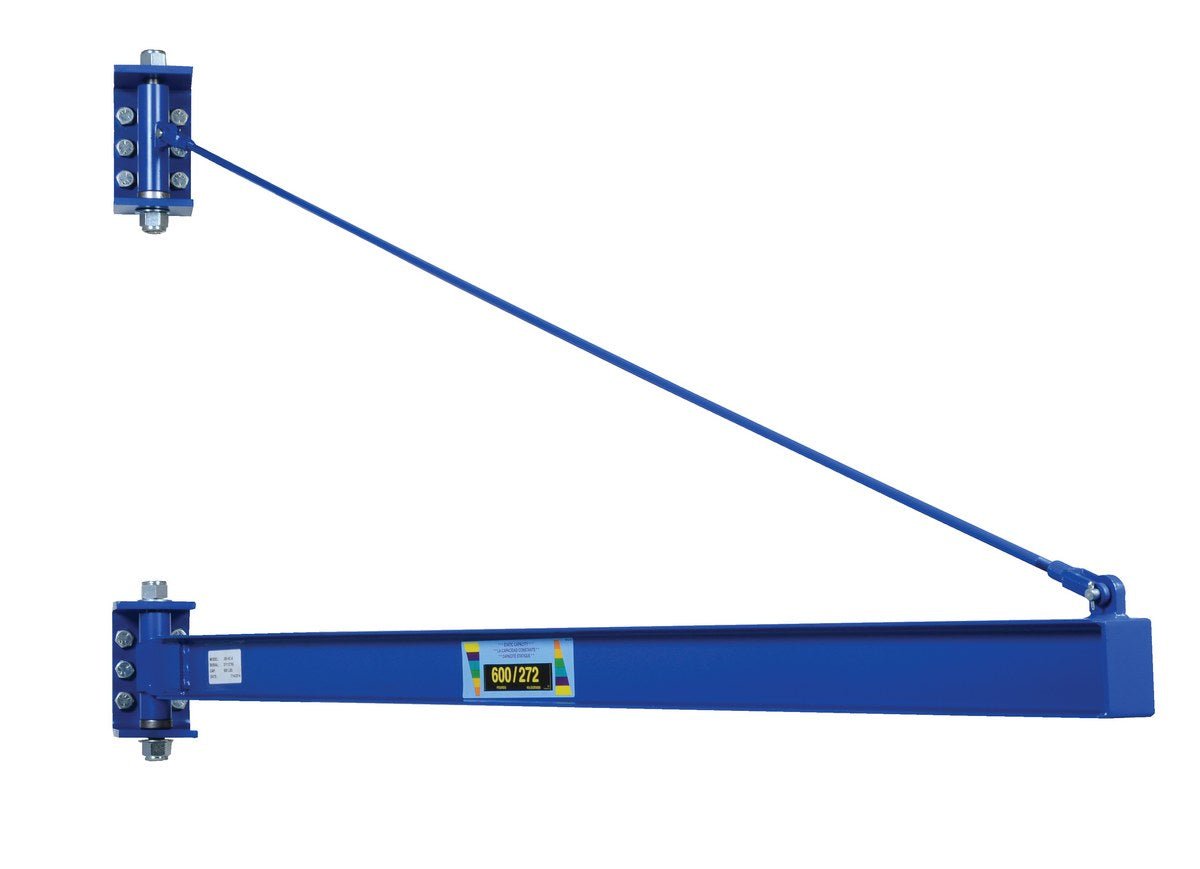

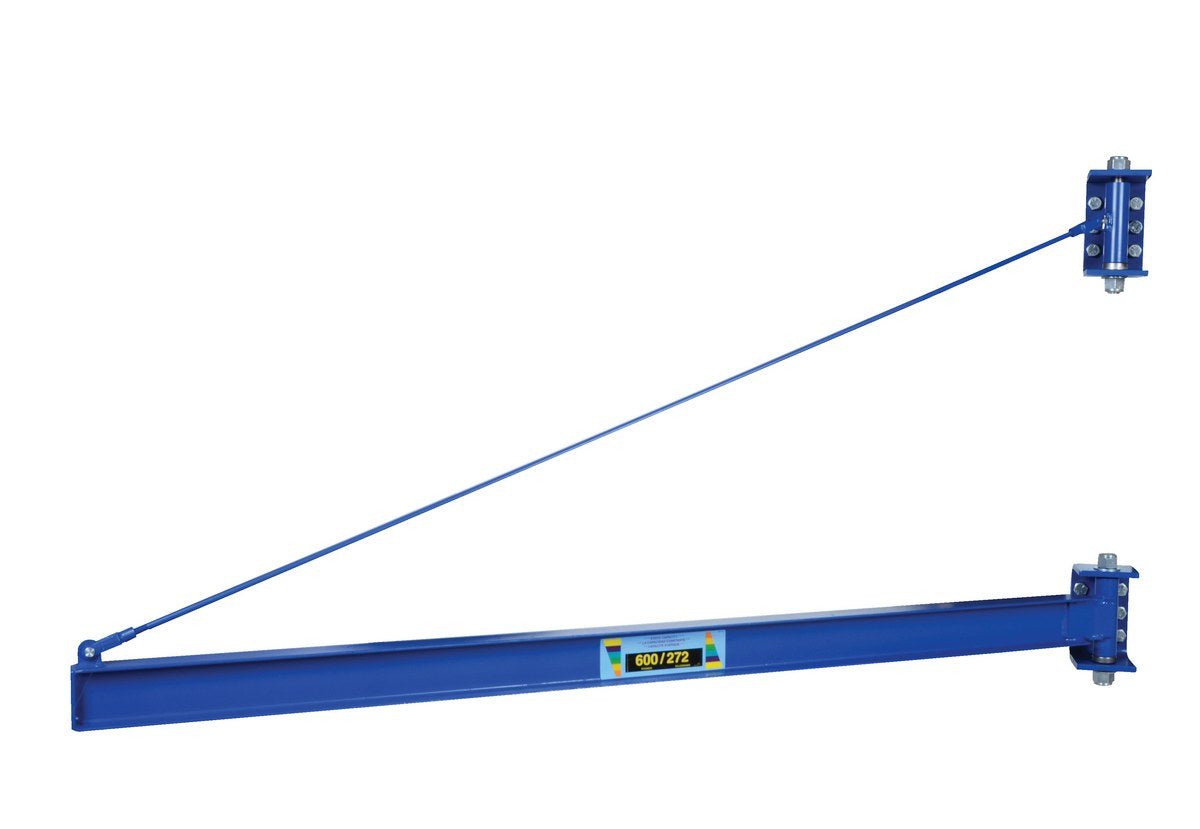

Tie Rod Jibs for achieving maximum floor space and utilize wasted air space

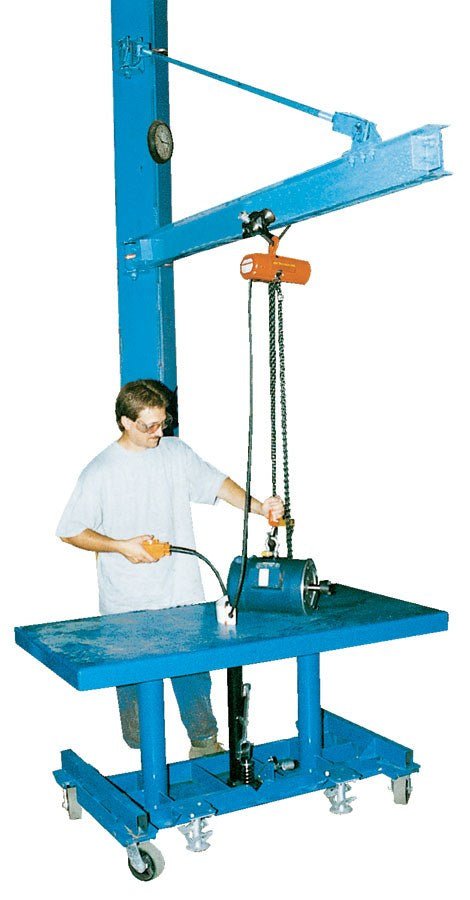

Mount to walls or columns to increase hook coverage over workstations. Unit rotates 180 degrees. Usable I-beam length is 79-3/4". All steel construction with pained blue finish provides years of service. Hoist and trolley can be ordered separately.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Tie Rod Jibs (for high ceilings)
Model	PDF's	Overall Length	Cable Support Length	Overall Height	I-Beam Flange (Width x Height)	Capacity (lbs)	Wt. (lbs)
JIB-HC-3		86"	82-1/4"	45-1/4"	2-11/16"x 4"	300	144
JIB-HC-6		86"	82-1/4"	45-1/4"	2-11/16"x 4"	600	144
JIB-HC-10		86"	76-3/4"	45-1/4"	2-11/16"x 4"	1,000	160
JIB-HC-20		86"	76-3/4"	45-1/4"	4"x 6"	2,000	216
