Shop Vestil  |  SKU: JIB-P-10-6-6

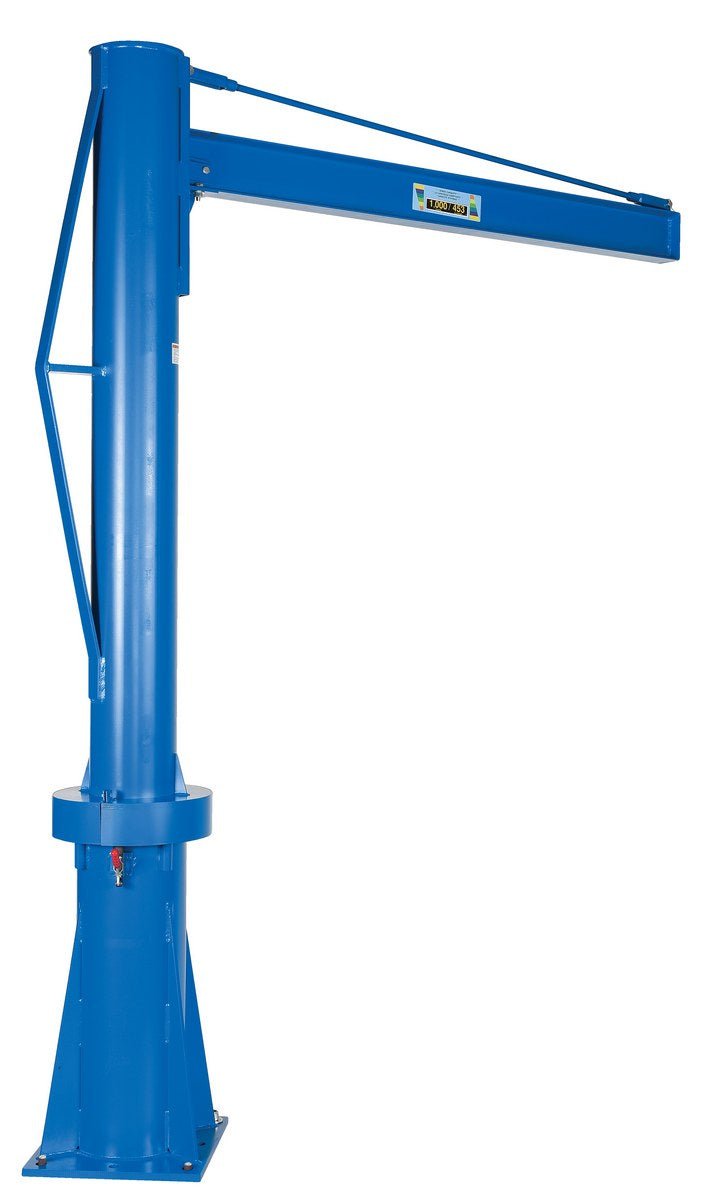

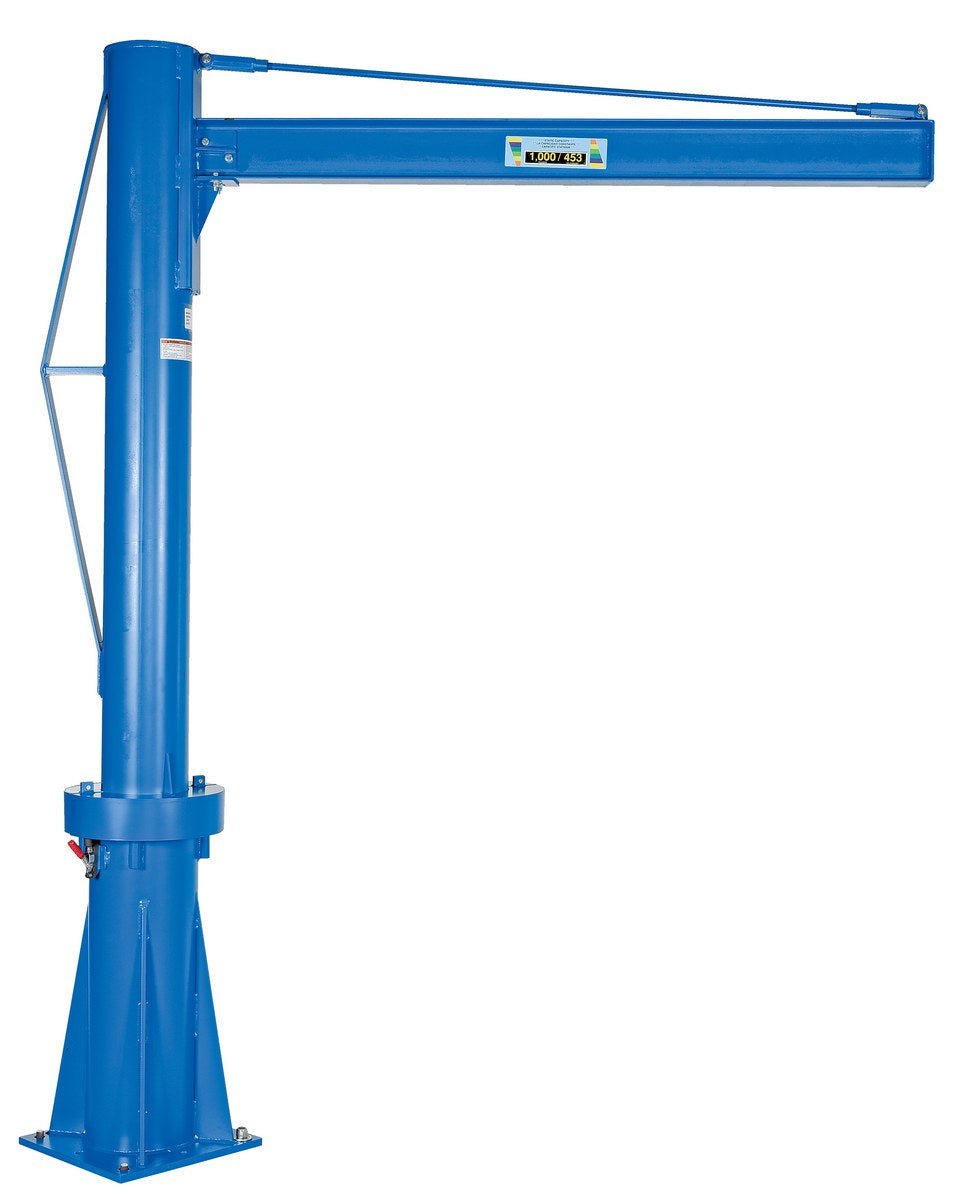

Vestil Multi-Station Transportable Jib Cranes

$2,24090
Shipping calculated at checkout.
Overall Boom Length
Usable Height

Multi-Station Transportable Jib Cranes designed for use in multiple locations, includes jib crane and one base socket

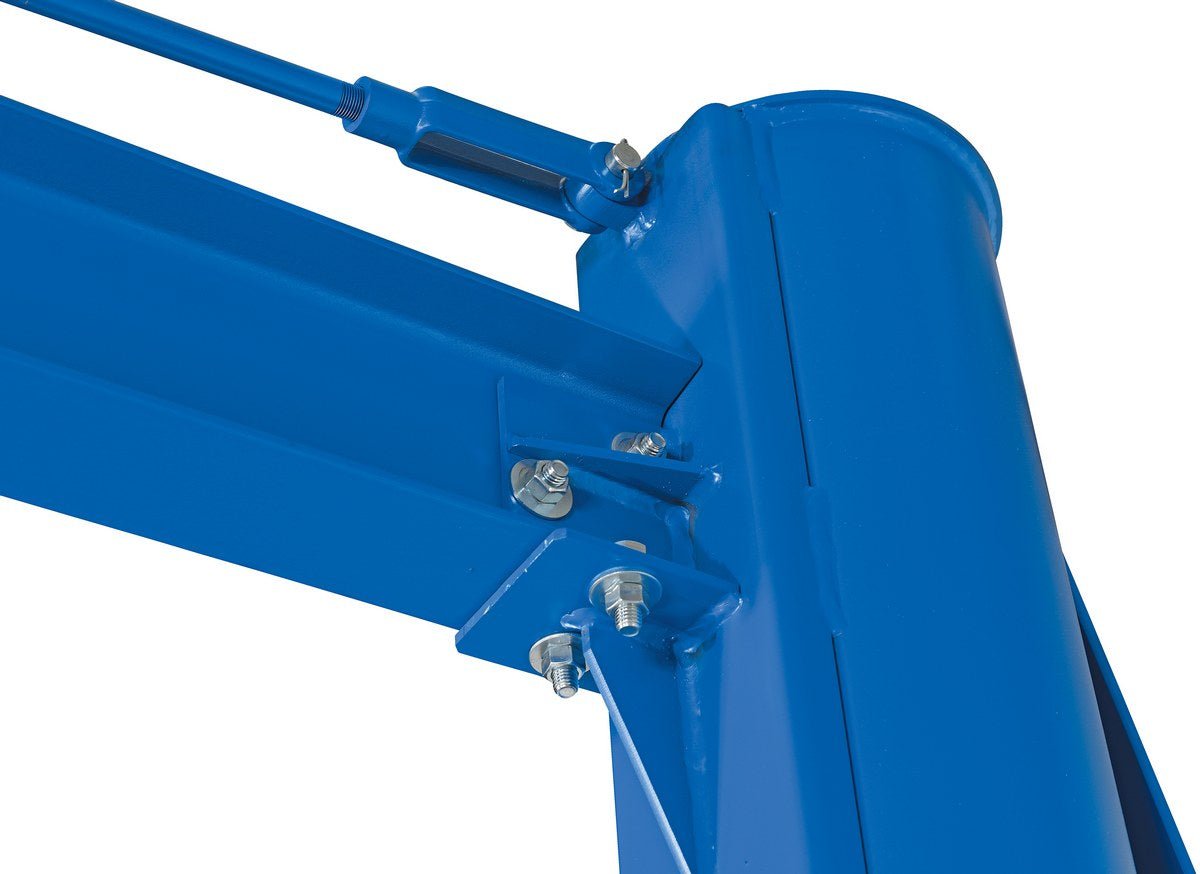

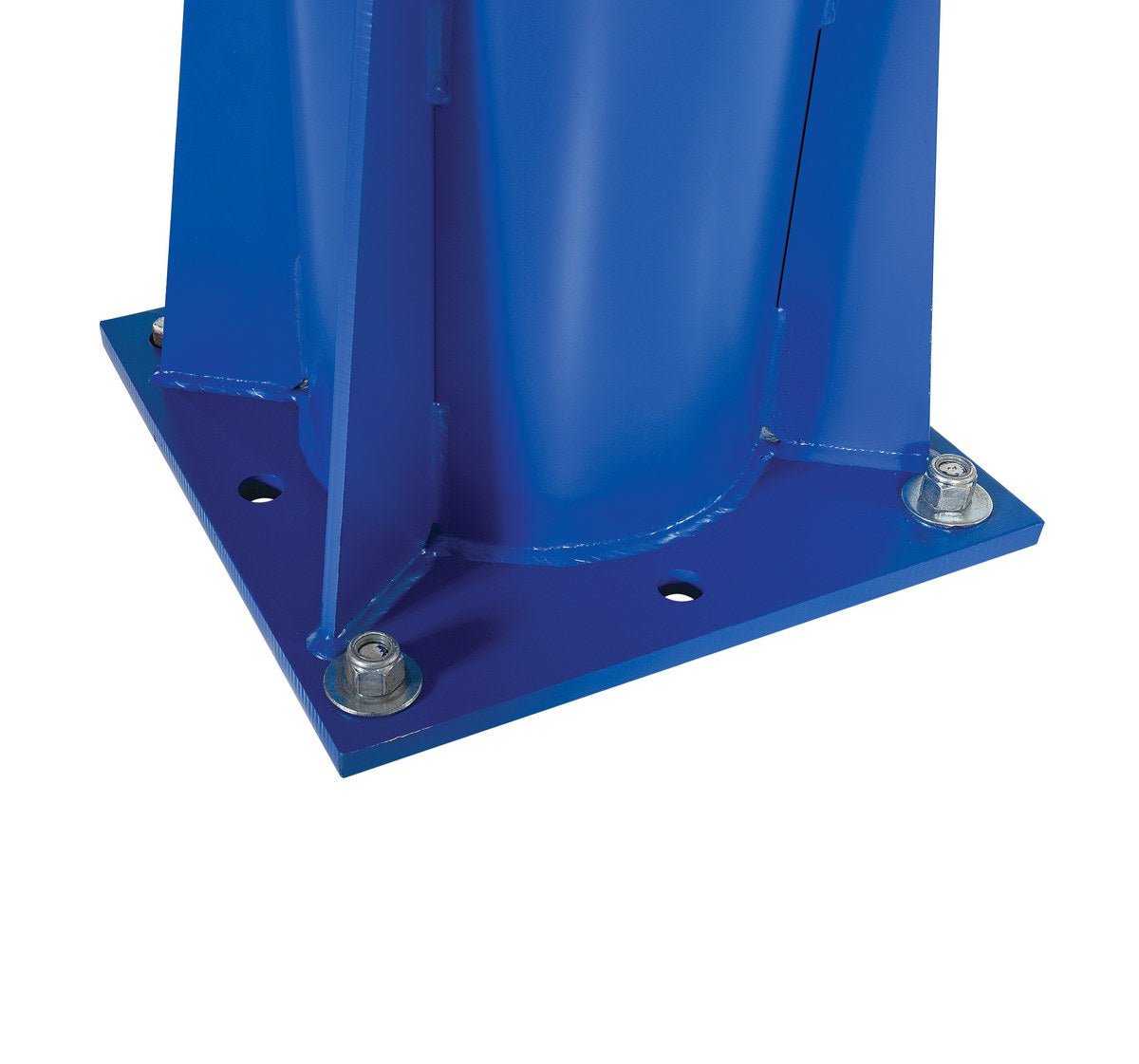

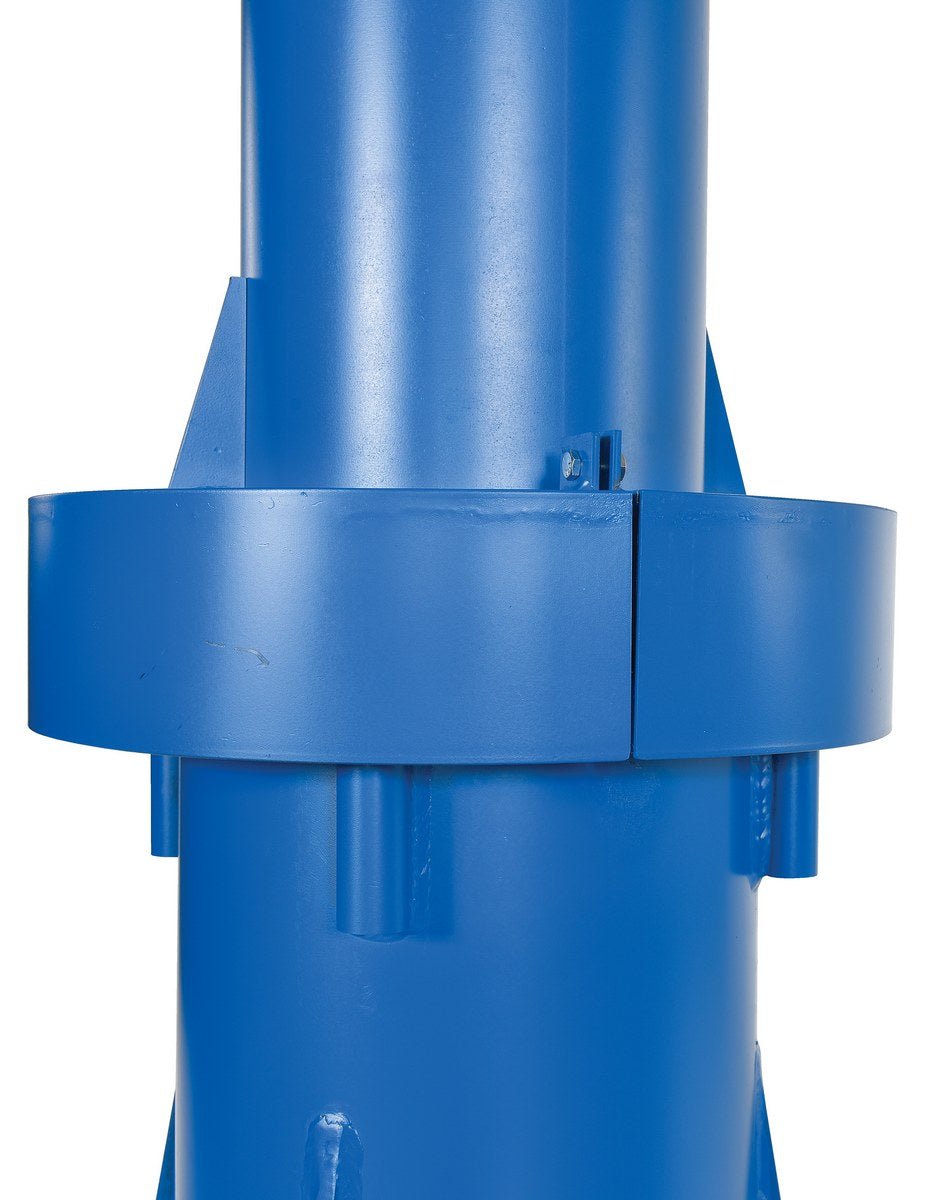

Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately. Painted finish.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Multi-Station Transportable Jib Cranes
Model PDF Overall
Boom
Length		 Usable
Height		 Capacity
(lbs)		 Wt.
(lbs)
JIB-P-10-6-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 71-13/16" 1,000 603
JIB-P-10-6-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 95-13/16" 1,000 701
JIB-P-10-6-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 119-13/16" 1,000 731
JIB-P-10-8-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 96" 71-13/16" 1,000 606
JIB-P-10-8-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 96" 95-13/16" 1,000 683
JIB-P-10-8-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 96" 119-13/16" 1,000 773
JIB-P-10-10-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 120" 71-13/16" 1,000 710
JIB-P-10-10-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 120" 95-13/16" 1,000 790
JIB-P-10-10-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 120" 119-13/16" 1,000 805
