Vestil Multi-Purpose Tote Dumpers

Collect, transport, and dump materials while saving time and reducing work related injuries

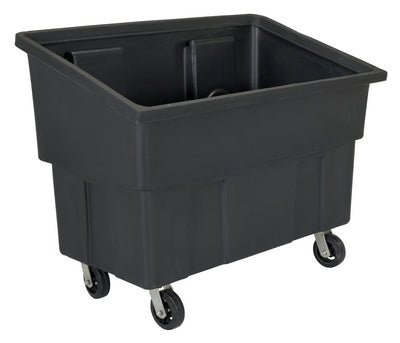

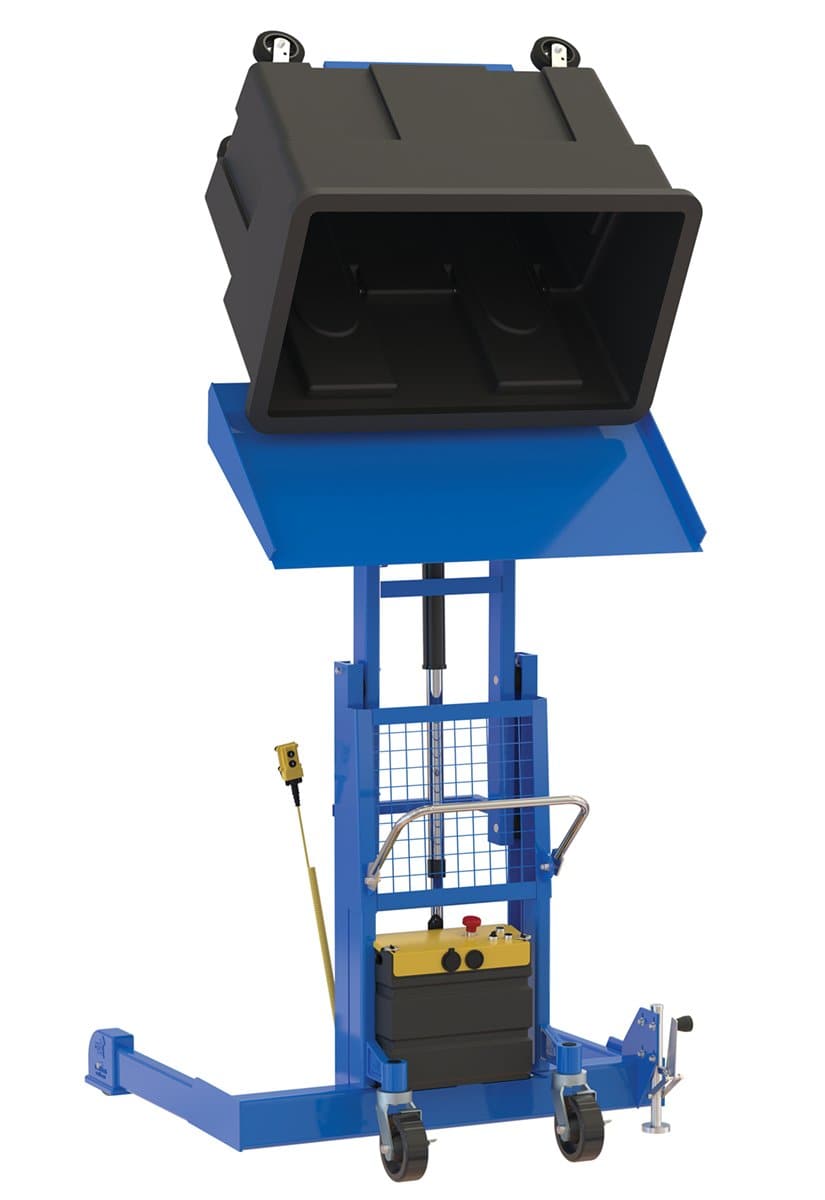

Ideal for schools, hospitals, commercial, and industrial applications. One person can easily and safely empty loads weighing up to 600 pounds. To use, roll the tote into dumper, secure tote in place, and depress the 24V hand control. The tote will rotate over 135 degrees to dump contents. Dump time is approximately 25 seconds. Standard features: Two (2) 8" x 2" glass filled nylon front wheels, Two (2) 8" x 3" phenolic rear casters, floor lock, one (1) 12V DC power, hand pendant control on 8 foot coil cord and one (1) MPT-2 polyethylene tote.

Multipurpose Tote Dumpers
Model	Image	PDF's	Dump Height	Rotated Height	Capacity (lbs)	Overall (WxL)	Wt. (lbs)

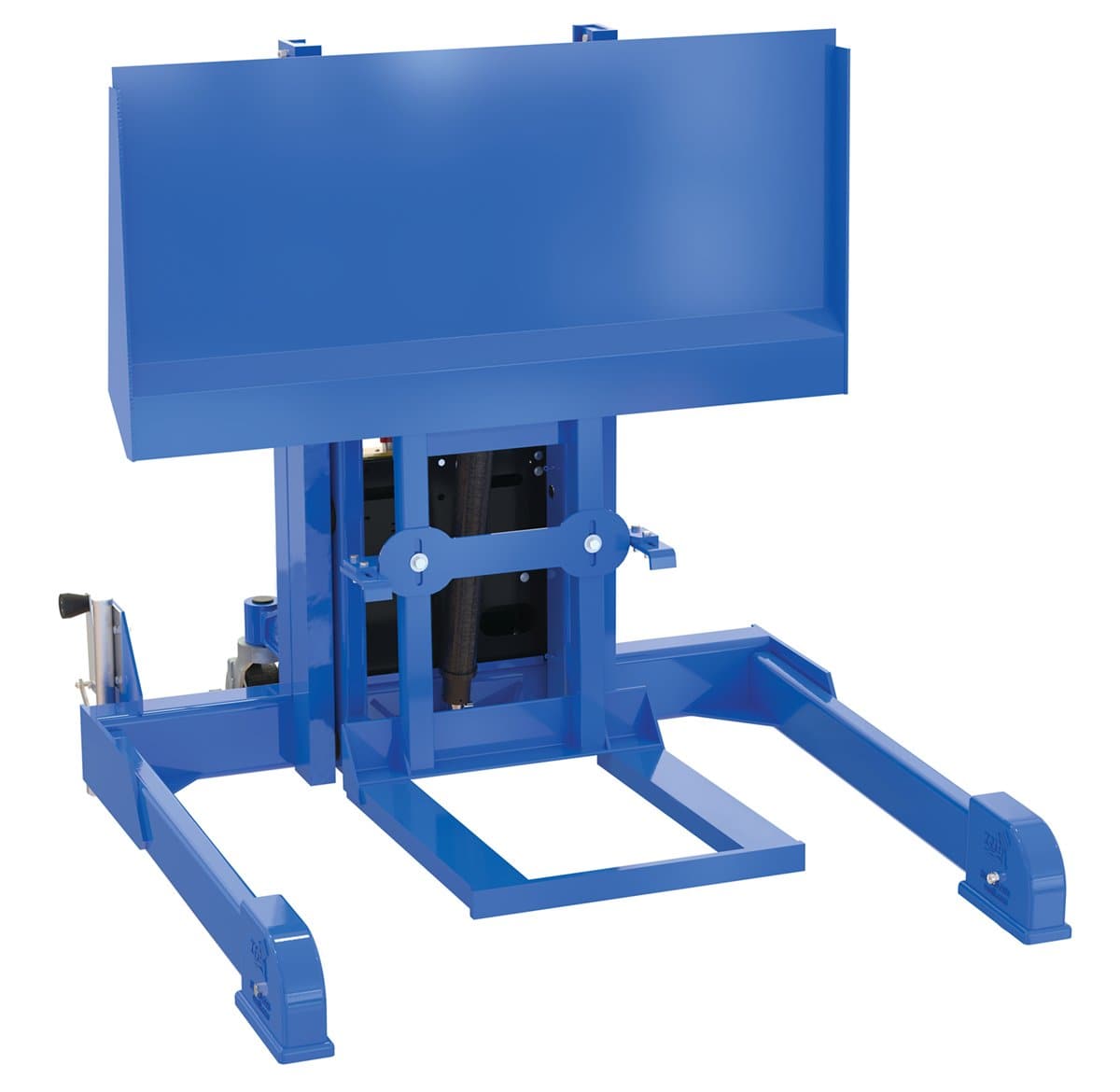

JMD-1000-48			48"	105-3/4"	600	57-1/4"x65-1/8"	1061
JMD-1000-60			60"	117-3/4"	600	57-1/4"x65-1/8"	1075
JMD-1000-72			72"	129-3/4"	600	57-1/4"x65-1/8"	1099

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
