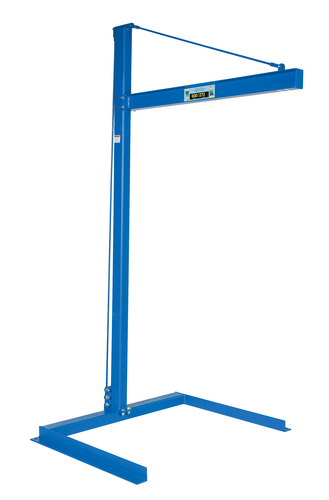

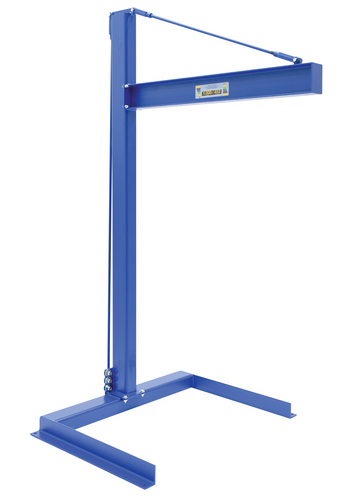

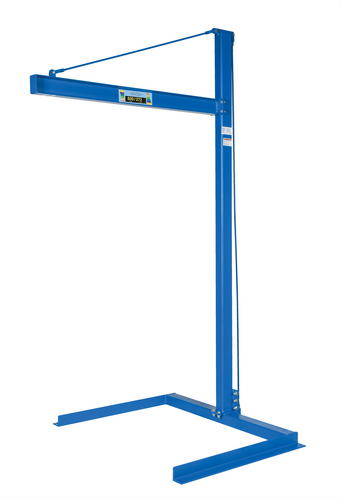

Vestil Mini Overhead Cantilever Jibs

$1,05785
Shipping calculated at checkout.
Mini Overhead Cantilever Jibs - Lifting Capacity

Mini Overhead Cantilever Jibs for easily lifting products from cart to workbench.

Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the 39-3/4" long outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 47-3/4" (ID). Hoist, trolley and cart not included. Steel construction. Durable blue powder coat finish.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Specifications

Model Under I-Beam To Ground Overall Height I-Beam Usable Length I-Beam Flange (WxL) Capacity (lbs) Wt. (lbs)
CJIB-3 84" 106-11/16" 54" 2.66"x4.00" 300 318
CJIB-6 84" 106-11/16" 54" 2.66"x4.00" 600 327
CJIB-10 78-1/2" 103-11/16" 54" 4.00"x6.00" 1,000 496
CJIB-20 78-1/2" 103-11/16" 54" 4.00"x6.00" 2,000 512
