Vestil Fork Mounted Poly Drum Handlers

These easy to use plastic drum handlers are constructed of all welded steel. Includes safety chains for securing unit to the fork truck. Durable powder coat finish.

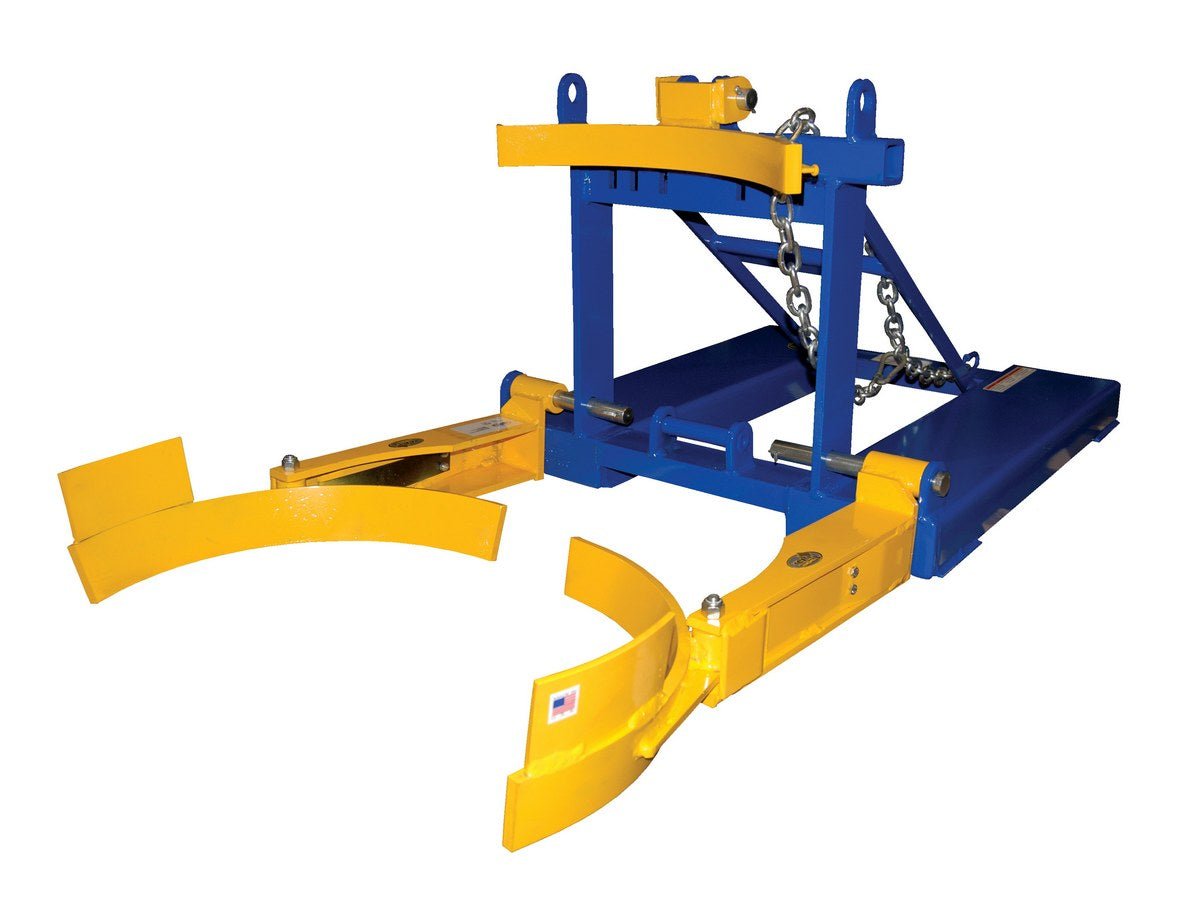

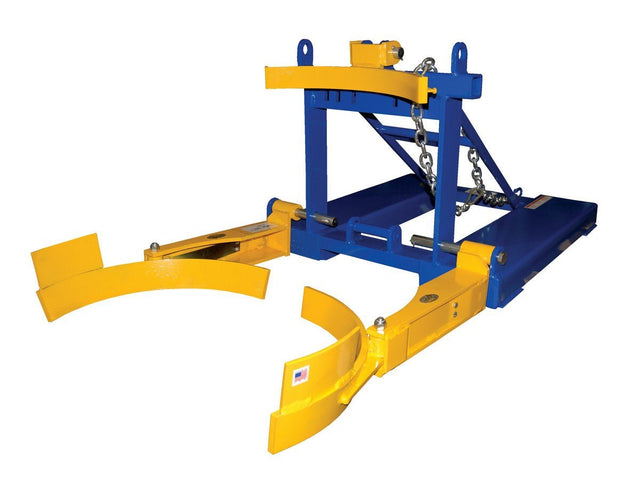

Model FPDL-8-L Adjustable arms are designed to fit 55 gallon tapered round bottom plastic drums. Low drum attachment point allows for use of both open and closed head drums. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain.

Model FPDL-11-H A top lip plastic drum lifter for use with 30 and 55-gallon plastic closed head drums. 7-1/2" wide x 2-1/2" high usable fork pockets on 20-1/2" centers. High drum attachment point for use with top lip at least 3/16" high. Will also work with steel and fiber drums, with open (lid installed and secured) and closed head drums.

Fork Mounted Poly Drum Handlers
Model	Image	PDF's	Description	Capacity (lbs)	Overall Size (WxLxH)	Wt. (lbs)
FPDL-8-L			Bottom Grip	800	28-1/2"x56-1/4"x22-3/8"	235
FPDL-11-H			Top Grip	1,100	28-1/2"x48-3/8"x22-3/8"	196

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
