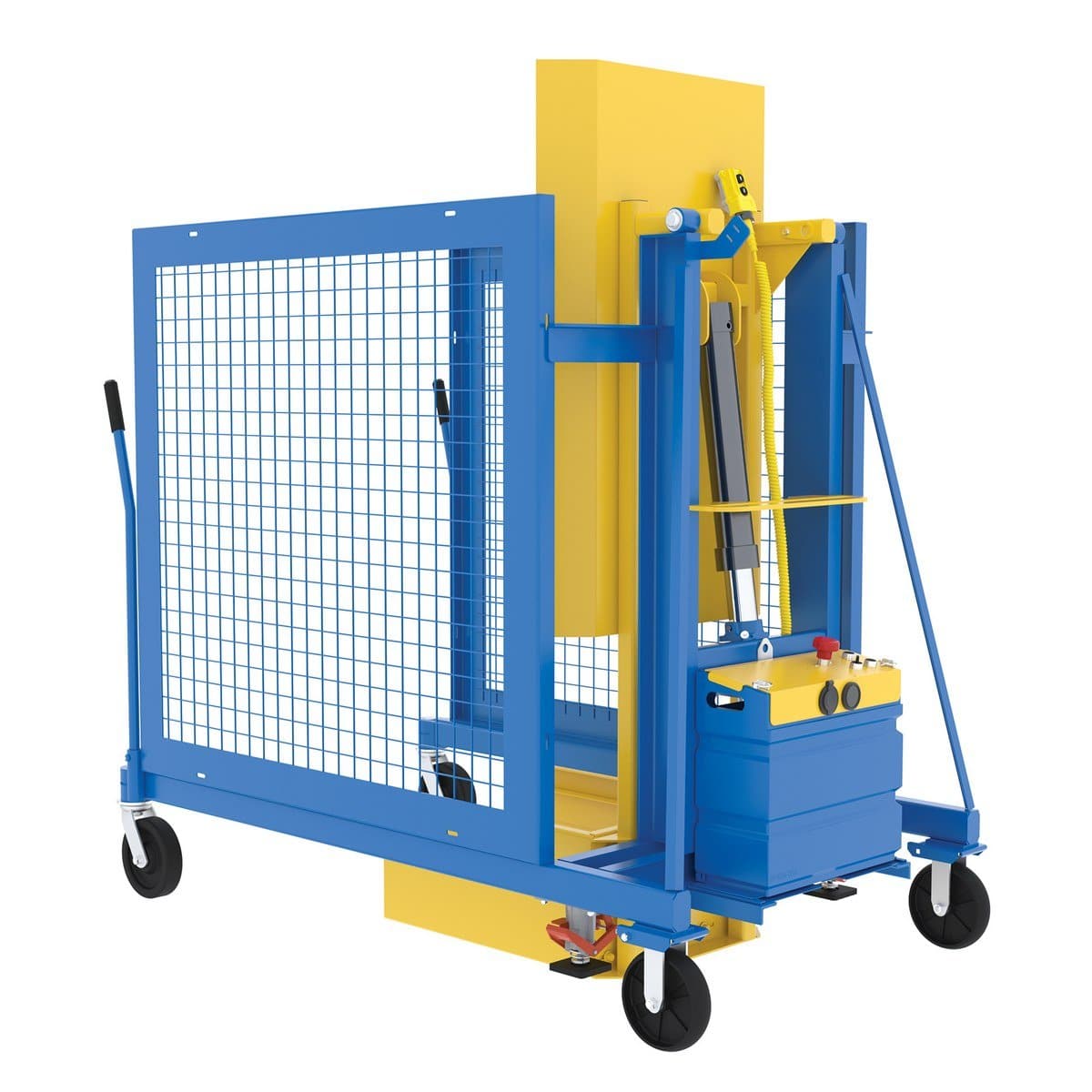

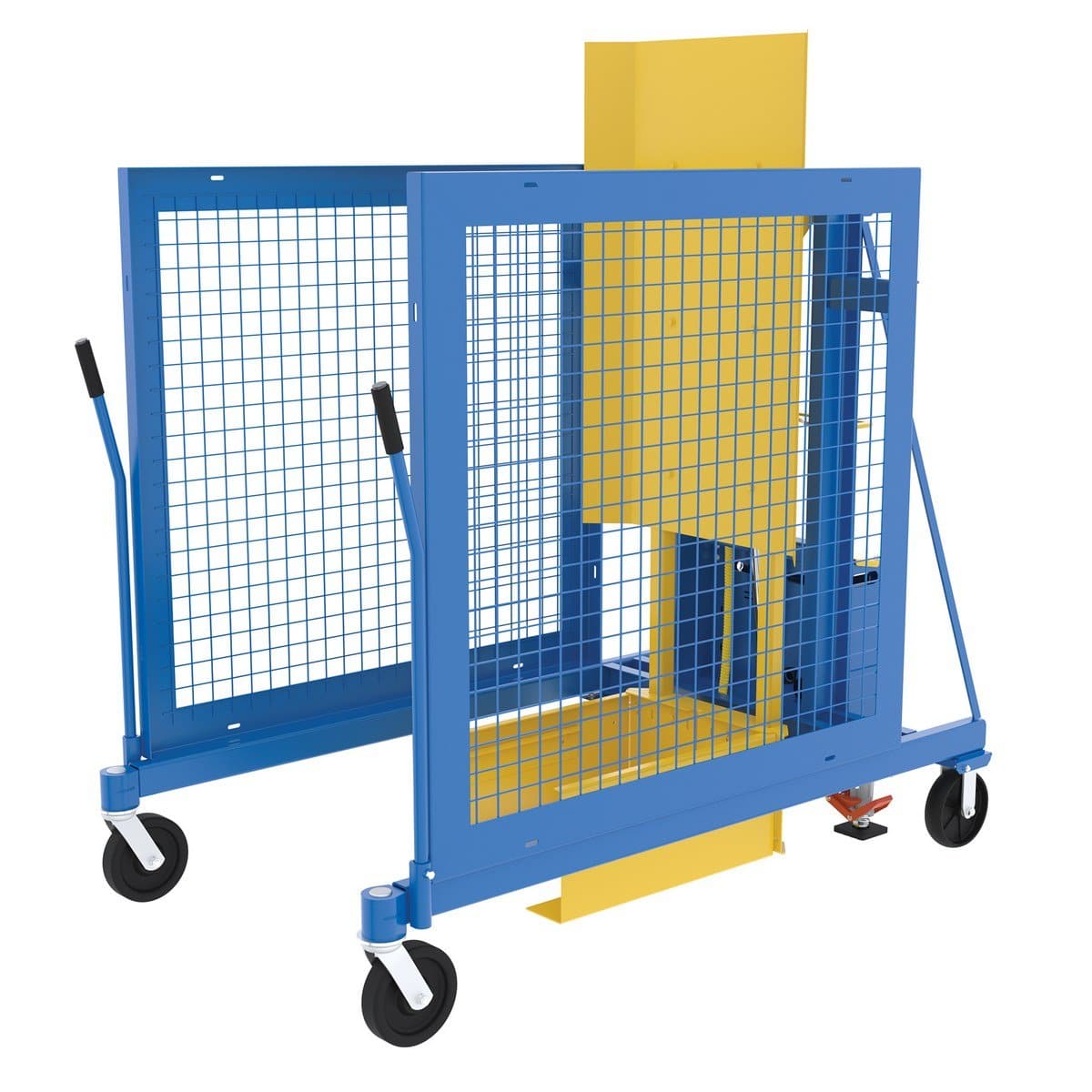

Vestil Electric Hydraulic Trash Can Dumpers

Trash Can Dumpers are designed so one person can easily dump contents of trash cans

Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8" x 2" glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.

Trash Can Dumpers
Model	Image	PDF's	Operation	Max. Dump Angle	Max. Dump Height	Capacity (lbs.)	Wt. (lbs.)
TCD-M-48-AC			115V / 1 Phase AC Powered	135 degrees	48-3/4"	400	703
TCD-M-48-DC			12V DC Powered	135 degrees	48-3/4"	400	753
TCD-M-60-AC			115V / 1 Phase AC Powered	135 degrees	60-3/8"	400	755
TCD-M-60-DC			12V DC Powered	135 degrees	60-3/8"	400	815
TCD-M-72-AC			115V/ 1 phase AC Powered	135 degrees	72-3/8"	400	766
TCD-M-72-DC			12V DC Powered	135 degrees	72-3/8"	400	826

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
