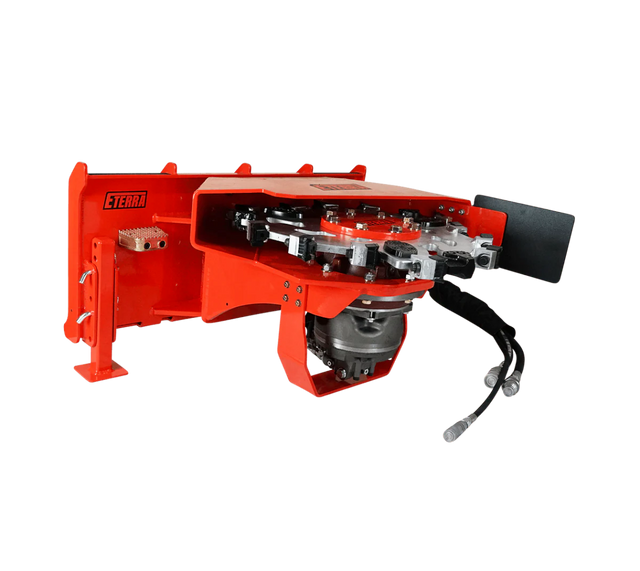

VORTEX SKID STEER STUMP GRINDER ATTACHMENT | Stump Grinding Attachment – Steer Masters

WHEN POWER MEETS EFFICIENCY

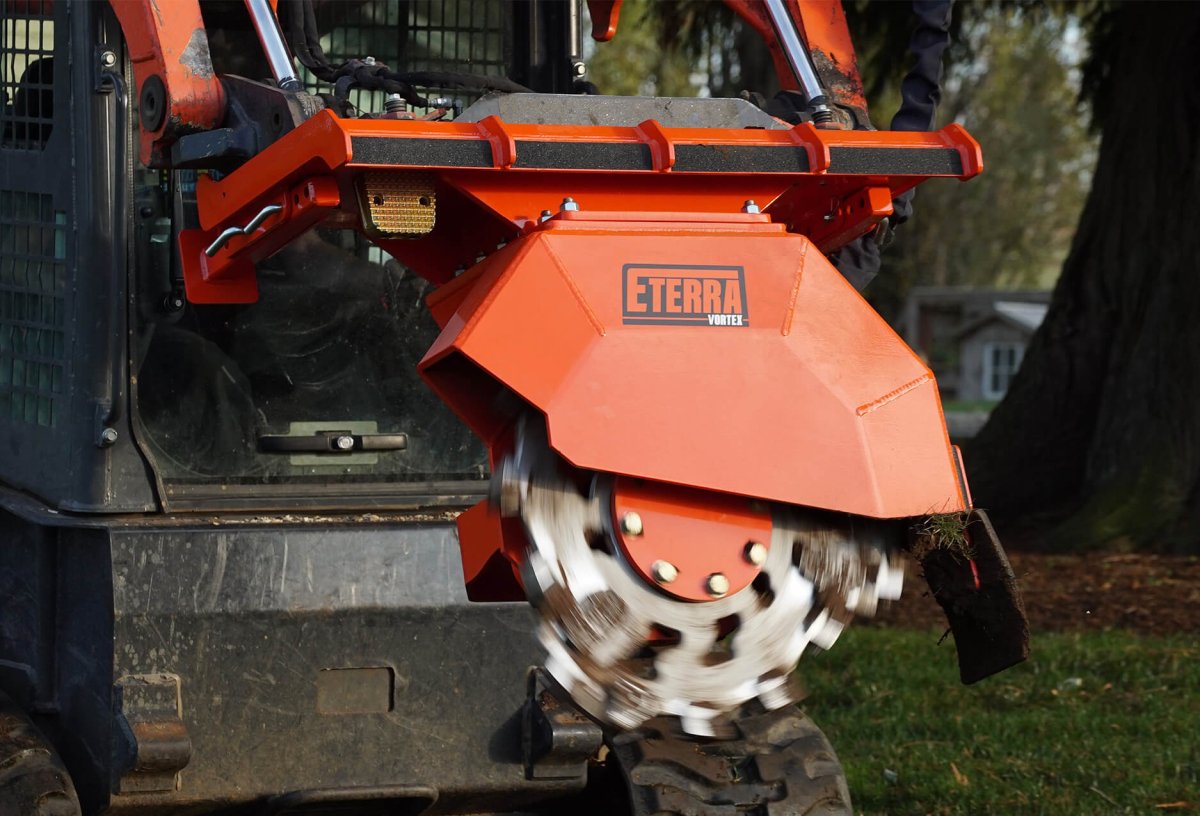

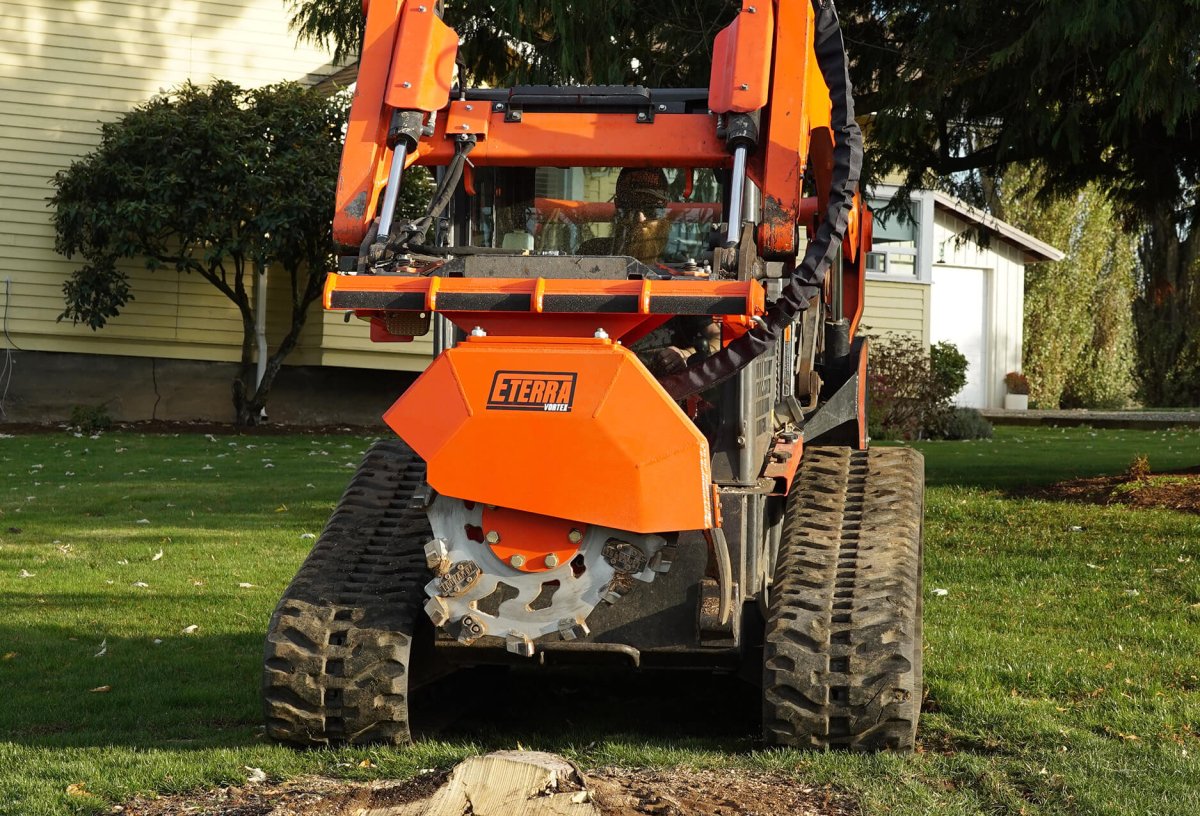

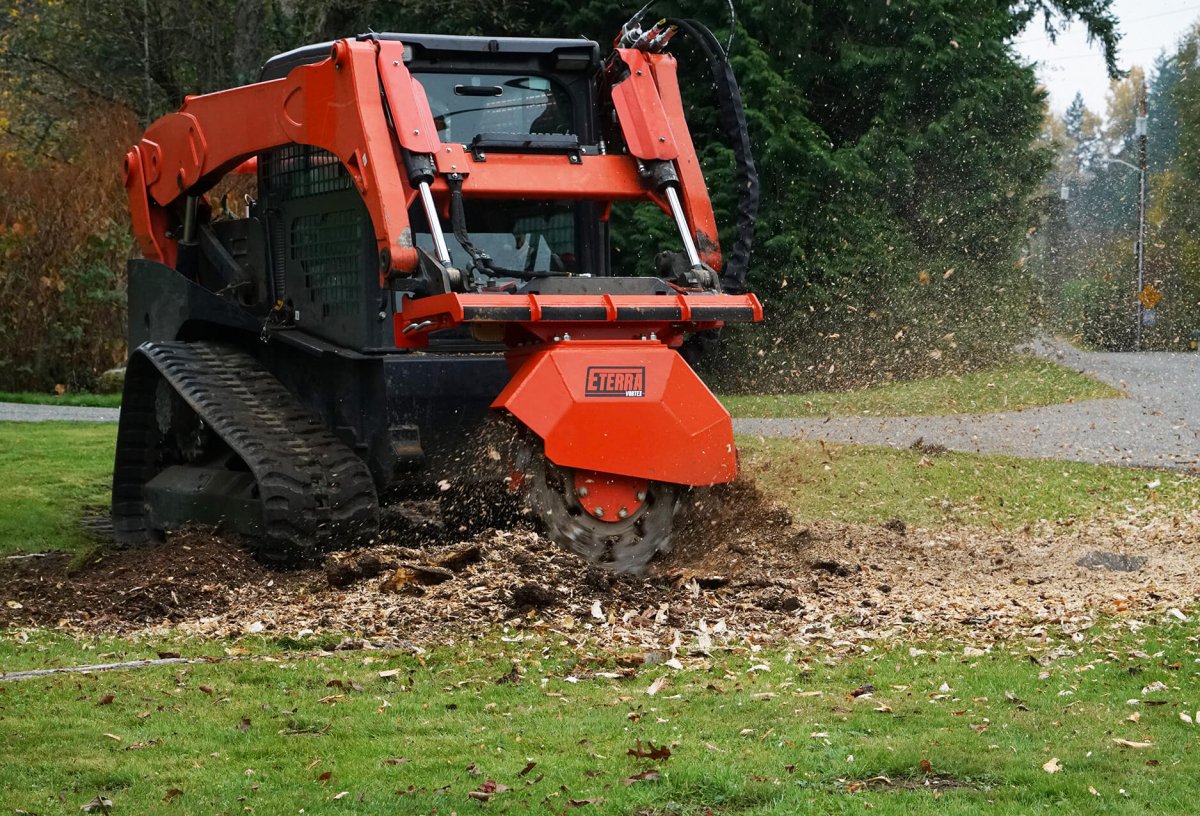

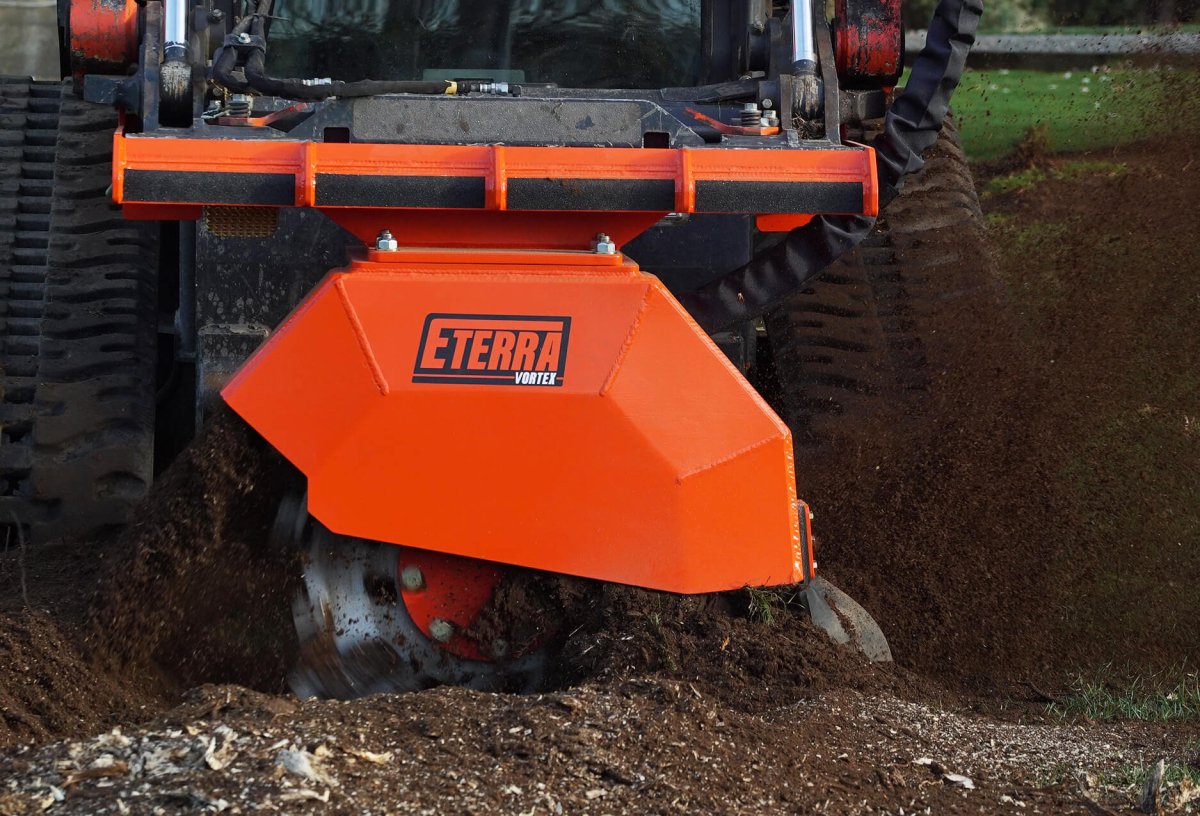

Eterra's Vortex Stump Grinder was designed and manufactured to improve stump grinding efficiency and capacity with a beefy radial piston motor and 3/4" non-symmetrical wheel. Available in 27" or 31" models. This attachment is ideal for operators looking to quickly remove hard or softwood tree stumps with a machine that doesn't leave anything on the field. With this overbuilt, reliable, high-powered grinder system, you'll be turning stumps to dust in no time.

GET TO KNOW THE VORTEX

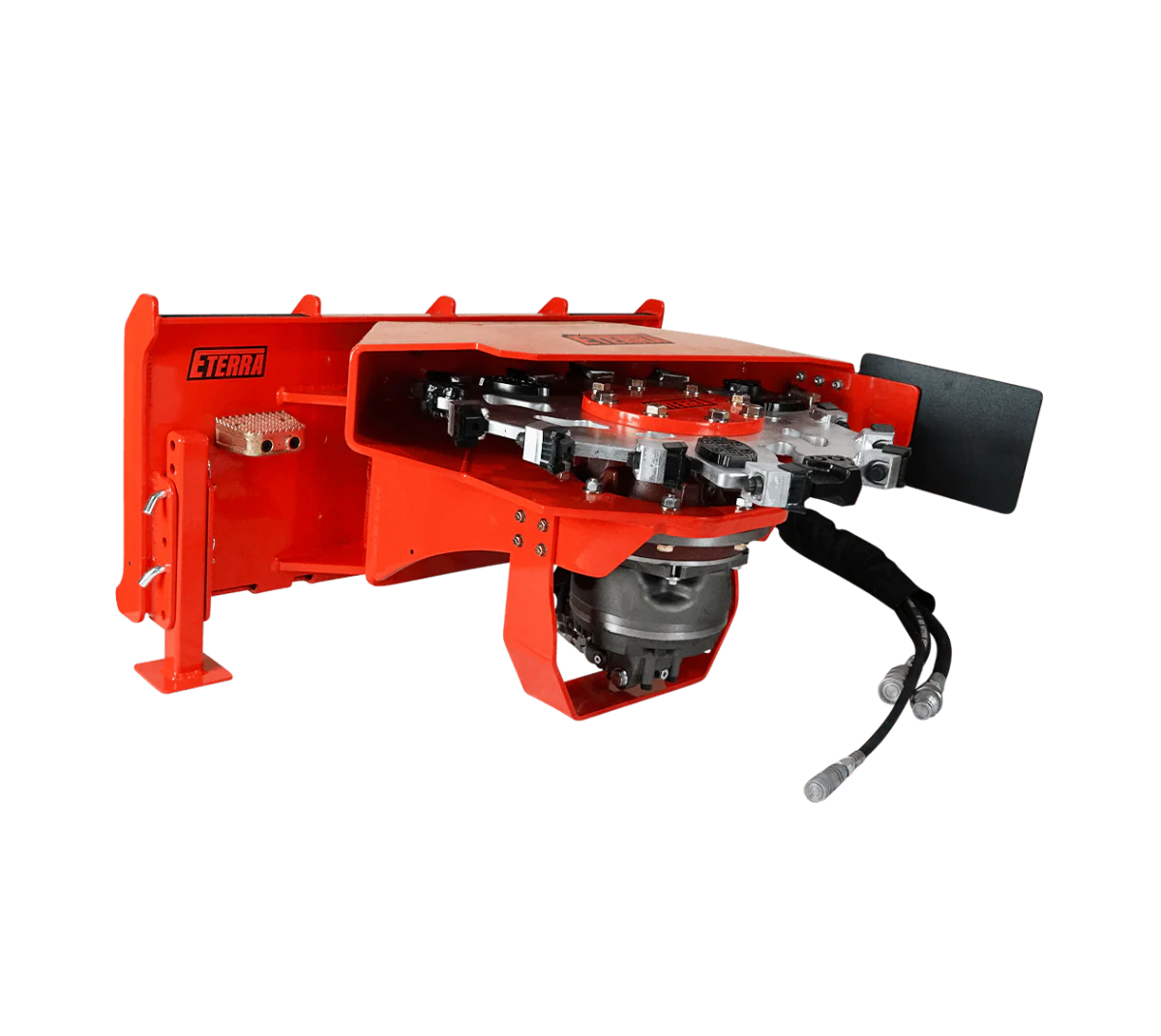

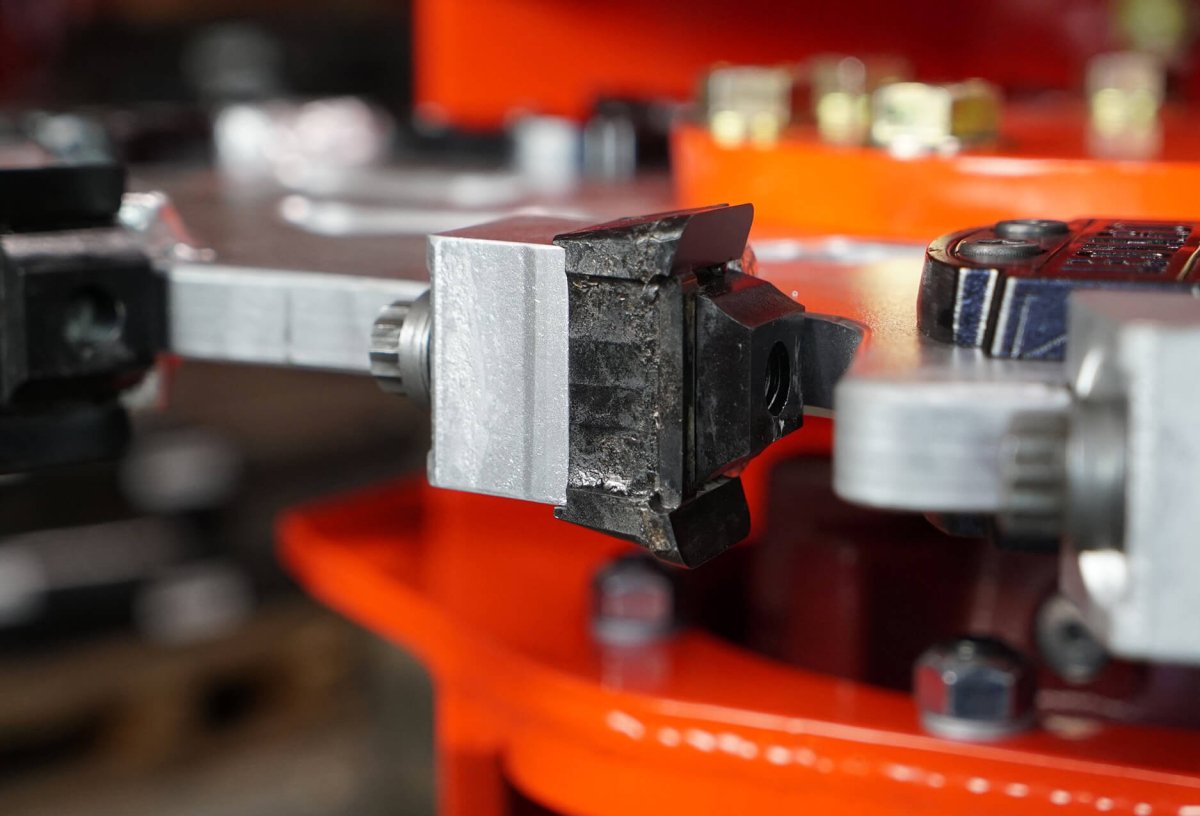

The Vortex Stump Grinder features a high torque output radial piston motor which is highly efficient, converting close to 95% of the hydraulic energy into horsepower. The direct drive system is an oil bath enclosed hub system, meaning there are no external couplers and nothing to grease. The asymmetrical high strength alloy steel wheel provides great visibility and features replaceable teeth, rock guards, and abrasion resistant wear plates.

UNDER THE HOOD

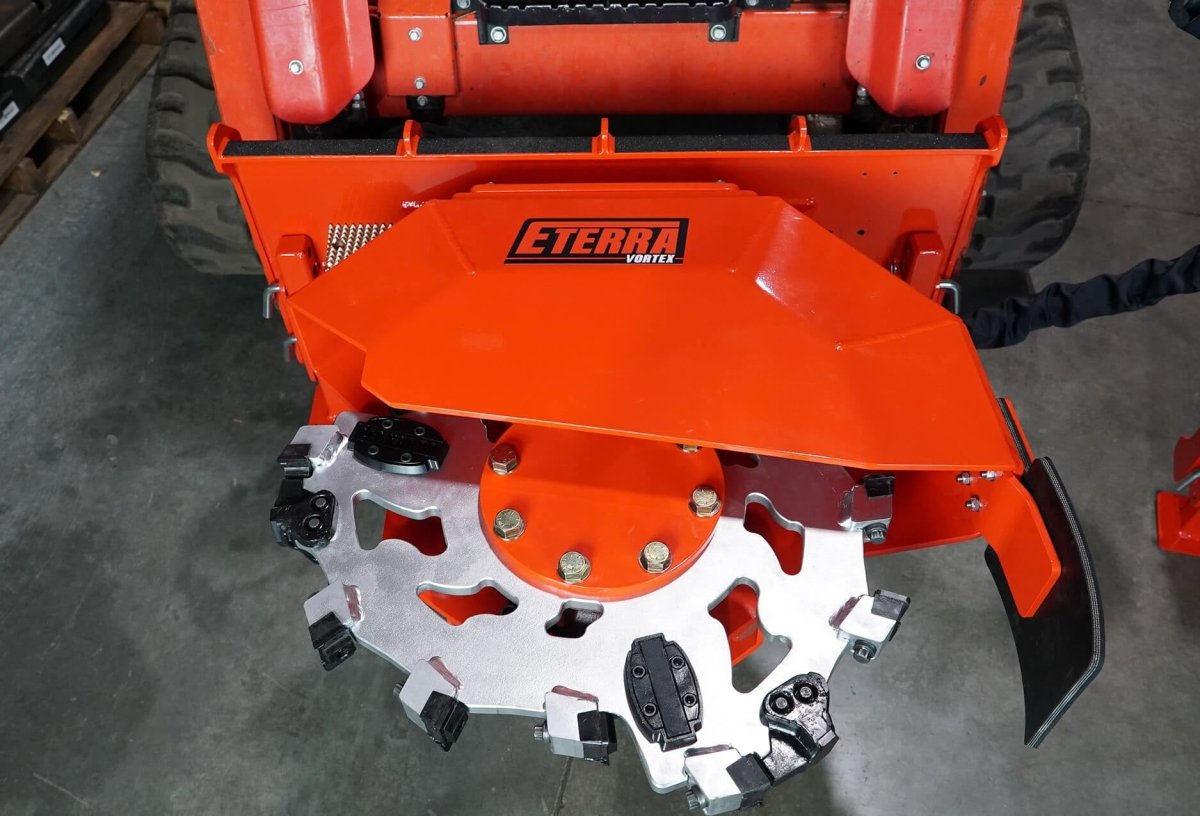

The Vortex Stump Grinder for Skid Steers utilizes an extremely efficient hydraulic radial piston motor that converts your machine's hydraulic flow directly into grinding power. Capable of grinding hard and soft woods, the asymmetrical cutting wheel not only provides great visibility, but also maximizes the life of the cutter teeth.

DESIGNED FOR POWER

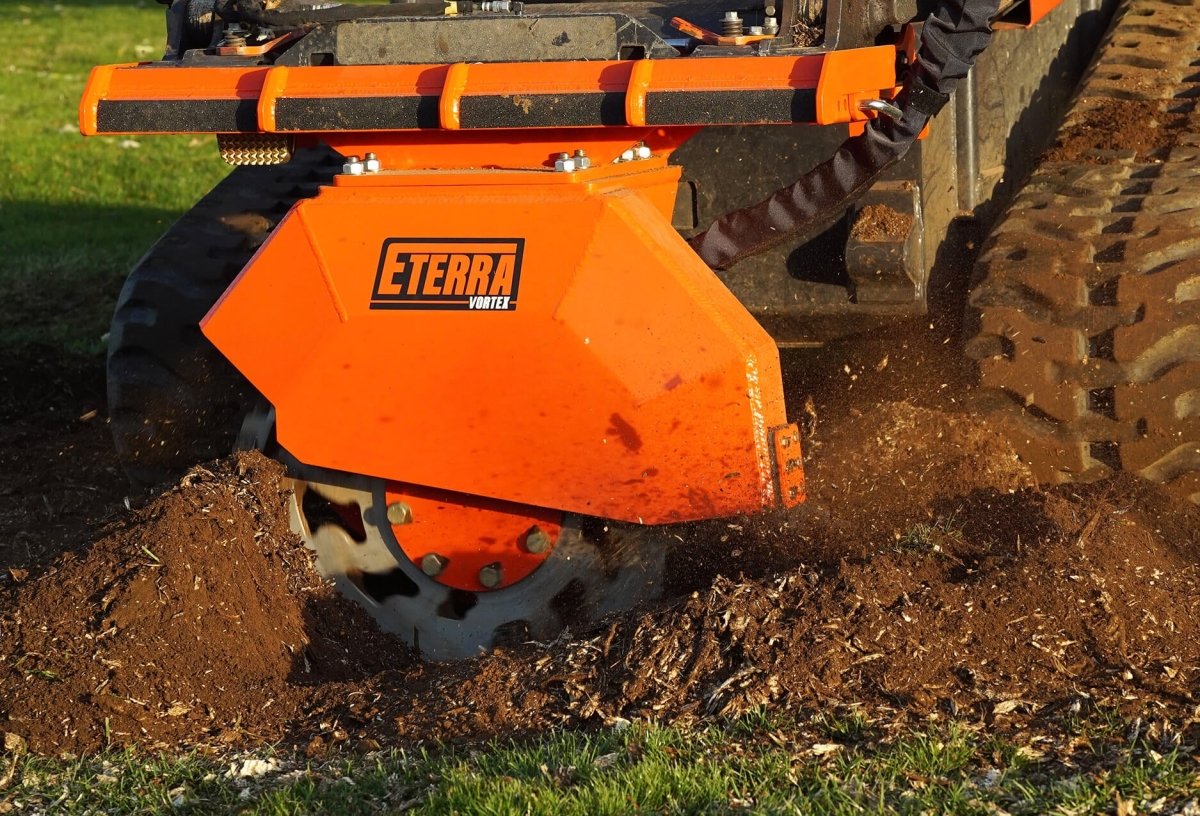

Constructed of A572 Grade 50 high strength steel. A Robust housing design is meant to handle the abuse required to grind stumps 20"+ below ground. A rubber chip guard absorbs debris impact and minimize the debris created from grinding the stump.

WATCH VIDEO

Features

SF Model Weight

1075 lbs.

SF Model Flow Range

18-30 GPM

SF Model Width

46"

SF Model Length

41"

SF Model Wheel Speed

450-700 RPM

SF Model Motor

Hydraulic Radial Piston Motor

SF Model Drive

Direct Drive Mega Hub Drive System

SF Model Cutting Depth

20 below ground"

SF Model Number of Cutting Teeth

12 Teeth, 3 Rock Guards

SF Model Type of Teeth

Sand/Clay Tooth, Standard Tooth, Z-Tooth, Rock Tooth

SF Model Material

ASTM A572 Grade 50 Steel Housing and Mount

Design Specs

HF Model Weight

1075 lbs.

HF Model Flow Range

30-45 GPM

HF Model Width

46"

HF Model Length

41"

HF Model Wheel Speed

450-735 RPM

HF Model Motor

Hydraulic Radial Piston Motor

HF Model Drive

Direct Drive Mega Hub Drive System

HF Model Cutting Depth

20 below ground"

HF Model Number of Cutting Teeth

12 Teeth, 3 Rock Guards

HF Model Type of Teeth

Sand/Clay Tooth, Standard Tooth, Z-Tooth, Rock Tooth

HF Model Material

ASTM A572 Grade 50 Steel Housing and Mount
