Vestil Variable Height Sheet Racks

$45107
Shipping calculated at checkout.
Options

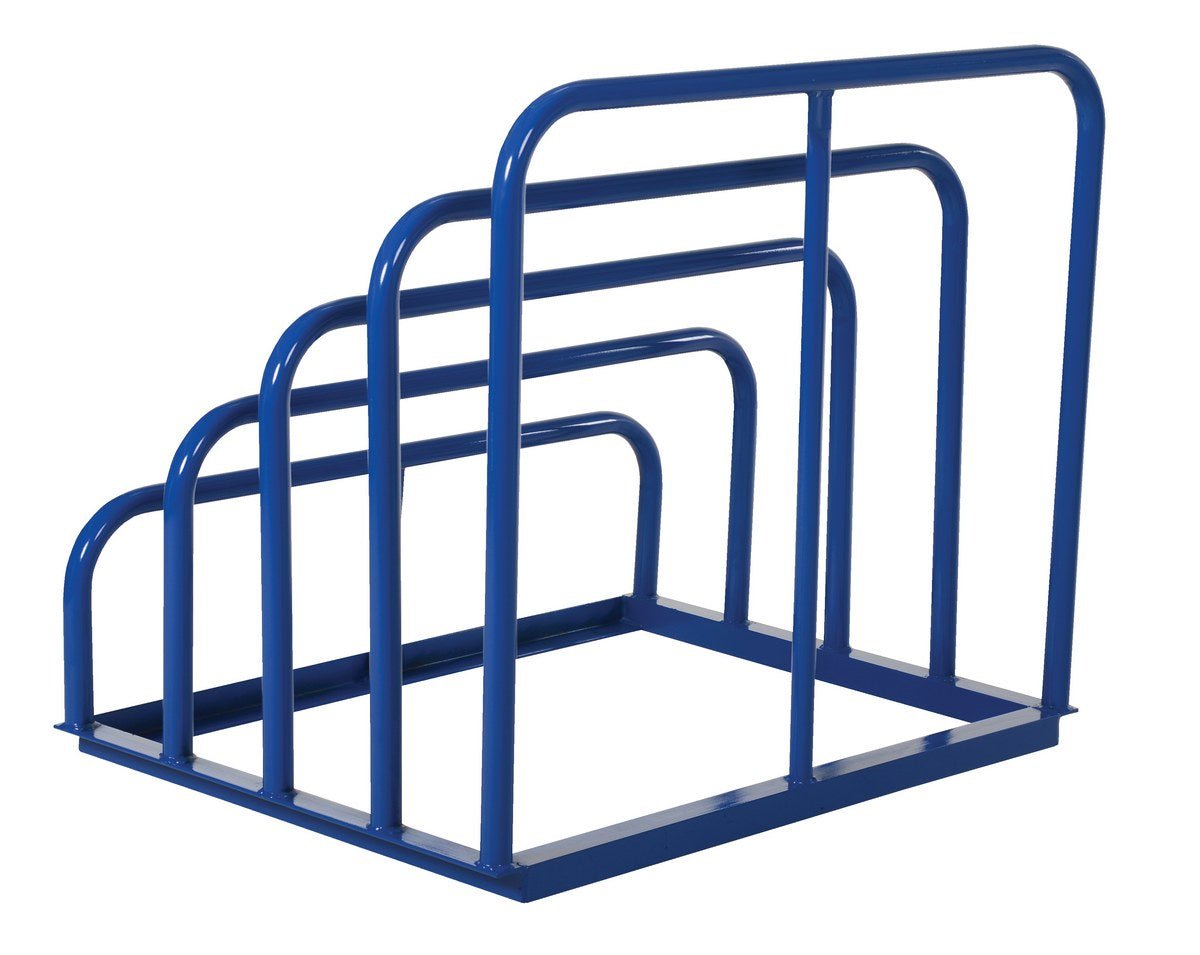

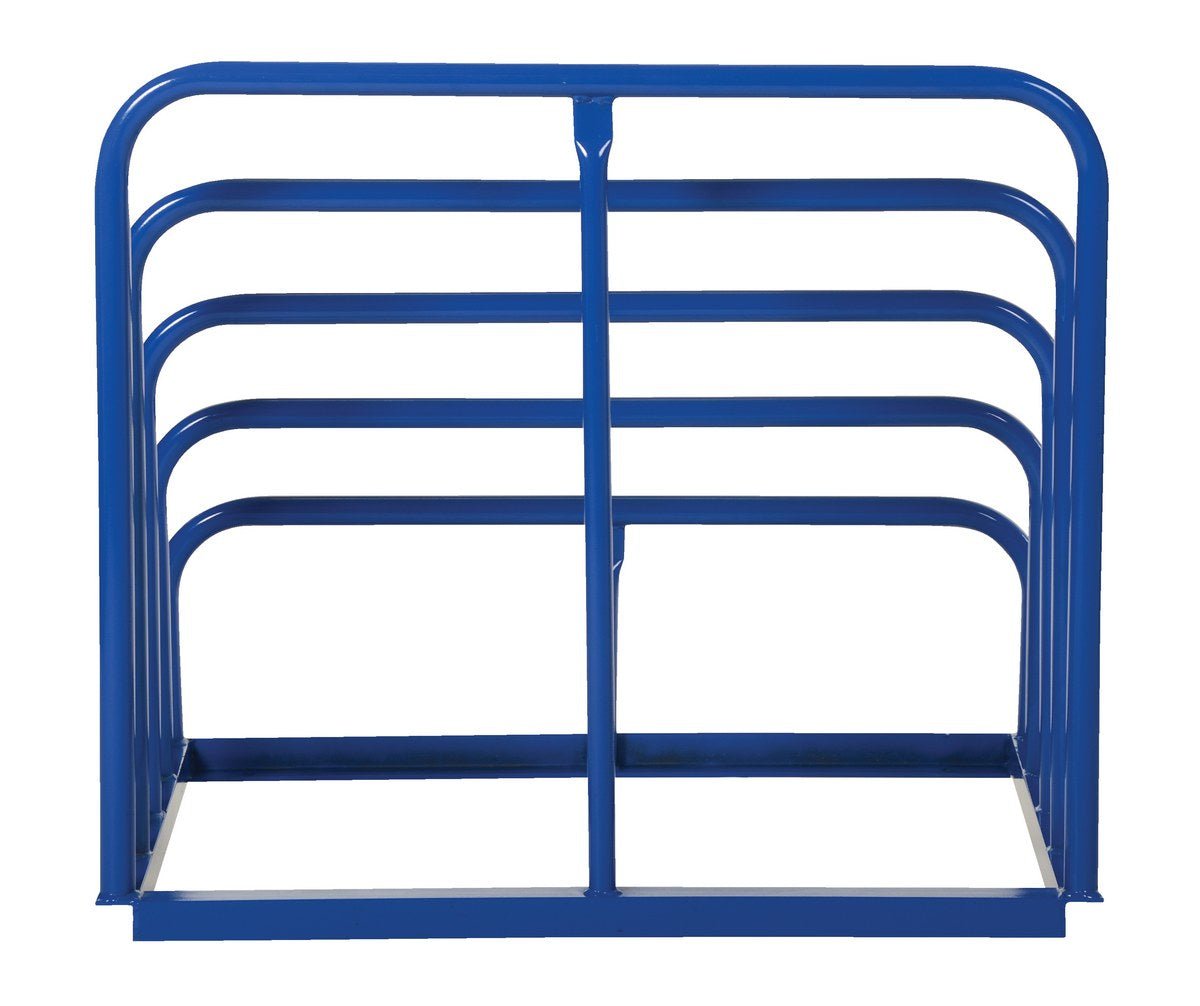

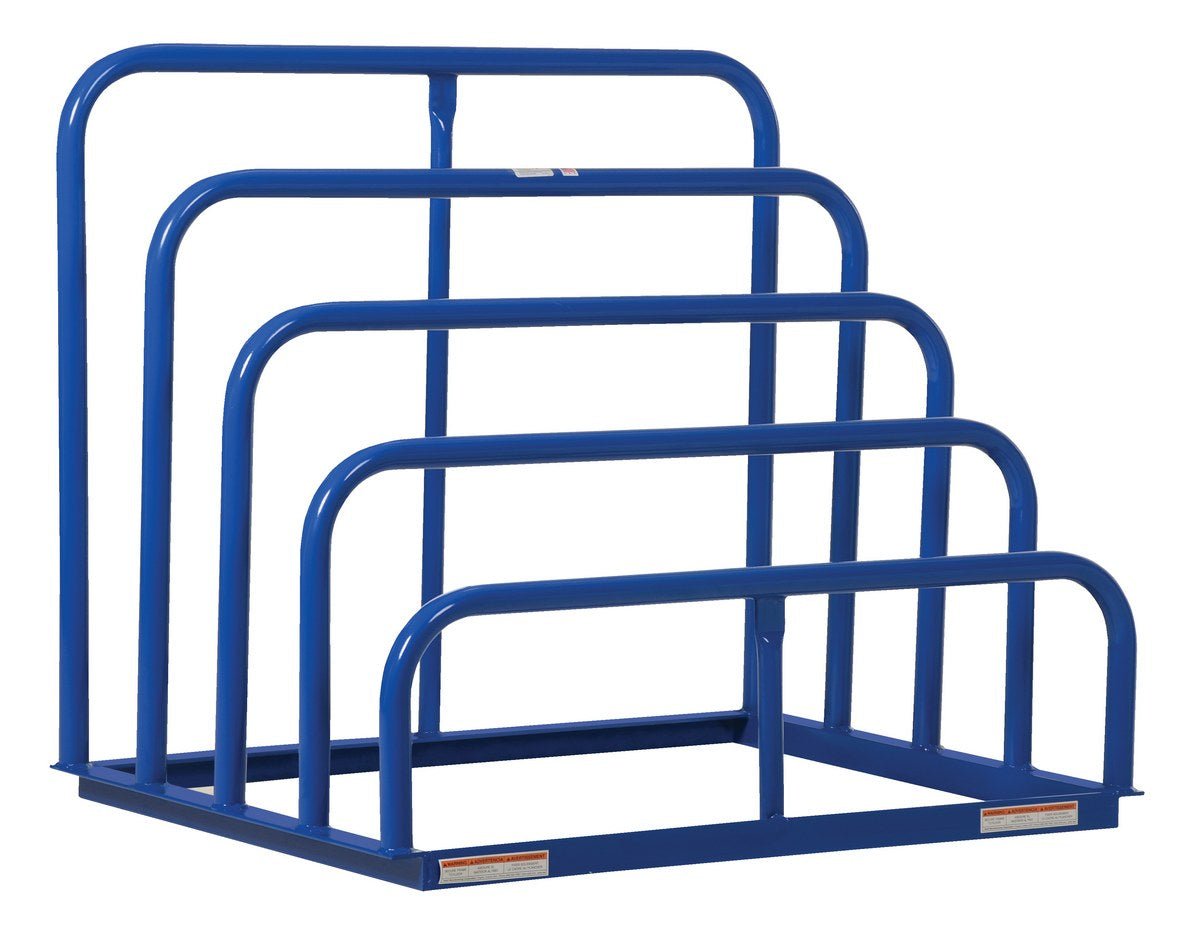

Variable Height Sheet Rack for organized sheet storage

The Blue Diamond® Variable Height Sheet Rack provides efficient storage for various sizes of sheet goods in the vertical position, making it easier to view and retrieve stock. With four bays of different heights, visibility and accessibility of materials is greatly improved. These racks are available in welded steel construction (models VHSR-4 and VHSR-8) or bolt-together construction (model VHSR-4B). Bolt-together versions include adjustable-width uprights for flexible storage needs.

Each bay has a capacity of 1,500 lbs, and the unit is supplied with lag-down points for secure installation. A baked-in powder coat finish enhances durability while reducing abrasions.

The knock-down sheet rack (model VHSR-4BA-KD) ships at a lower freight class, averaging 50% savings compared to the welded model VHSR-4.
  • Four storage bays with different heights for improved visibility
  • Available in welded or bolt-together construction
  • Adjustable-width uprights on bolt-together models
  • 1,500 lb. capacity per bay
  • Powder-coated finish for durability
  • Includes lag-down points for stability

Specifications

Model Overall Size (W x D x H) Number of Bays Distance Between Bays Weight
VHSR-4 47-3/8″ x 36″ x 41-3/4″ 4 6-7/8″ 154 lbs
VHSR-4BA-KD 37-15/16″ x 48-7/8″ x 39-3/4″ 4 6-11/16″ 160 lbs

Supporting Documents

All measurements are approximate. Slight variations, tolerances, or changes may occur at any time. Weights shown are approximate shipping weights.
