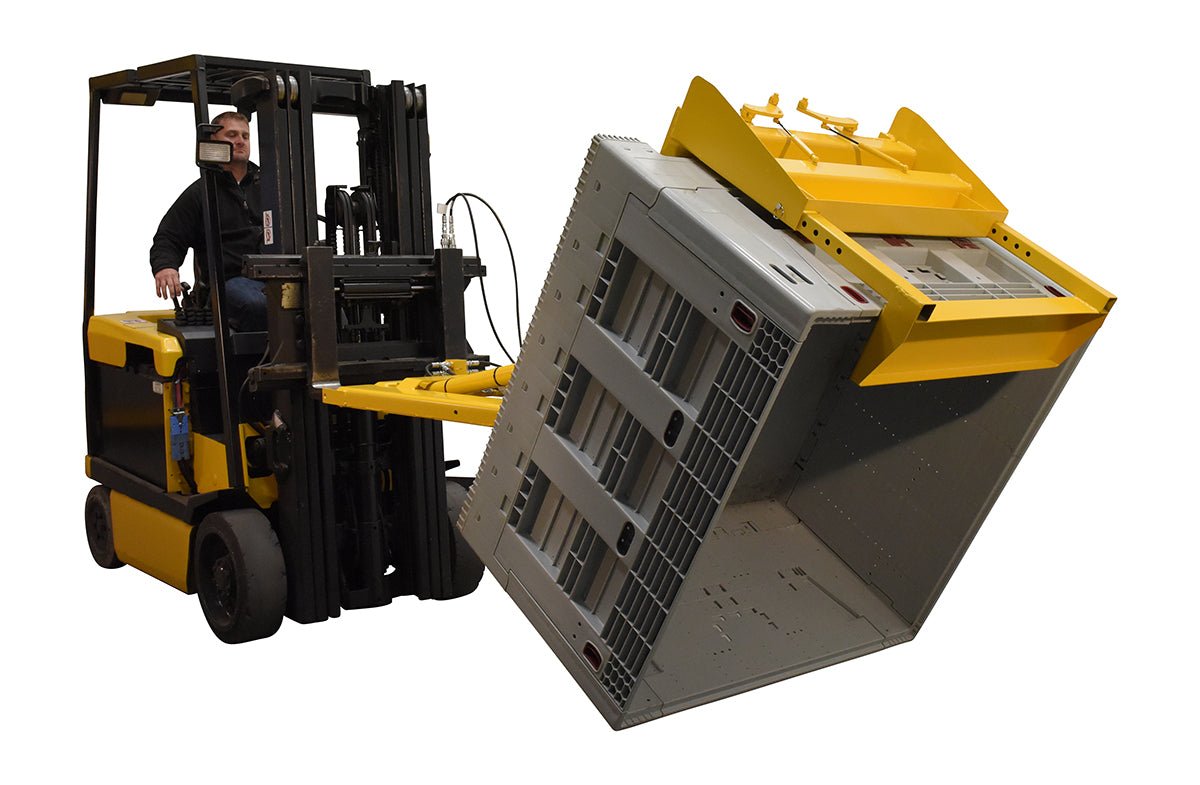

Vestil Truck Powered Crate Turner/Dumper

When a crate needs turned, look no further than the hydraulic crate turner.

With two easily accessible fork pockets, the unit can be simply attached to a fork lift or other lifting device. During the attachment process, an upper top lip fits tightly against the crate creating a secure connection during movement. The turner is constructed of steel for strength and dependability over consistent use. A painted finish adds a smooth surface to limit abrasions. Fork truck must have an auxiliary port to allow attachments on the fork truck.

• Painted Finish
• Tightly secures crate in place
• Simple and safe connection to a fork lift or other lifting device
• Durable construction throughout daily use

Truck Powered Crate Turner/Dumper
Model	Image	Uniform Capacity (lbs)	Overall Size (WxLxH)	Fork Pockets (WxHx Center)	Wt. (lbs)
CTD-H-TP-3000		3000	30-1/2"x65-1/2"x30-1/2"	8"x5-1/2"x23-1/4"	441

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
