Shop Blue Diamond Attachments  |  SKU: 108503

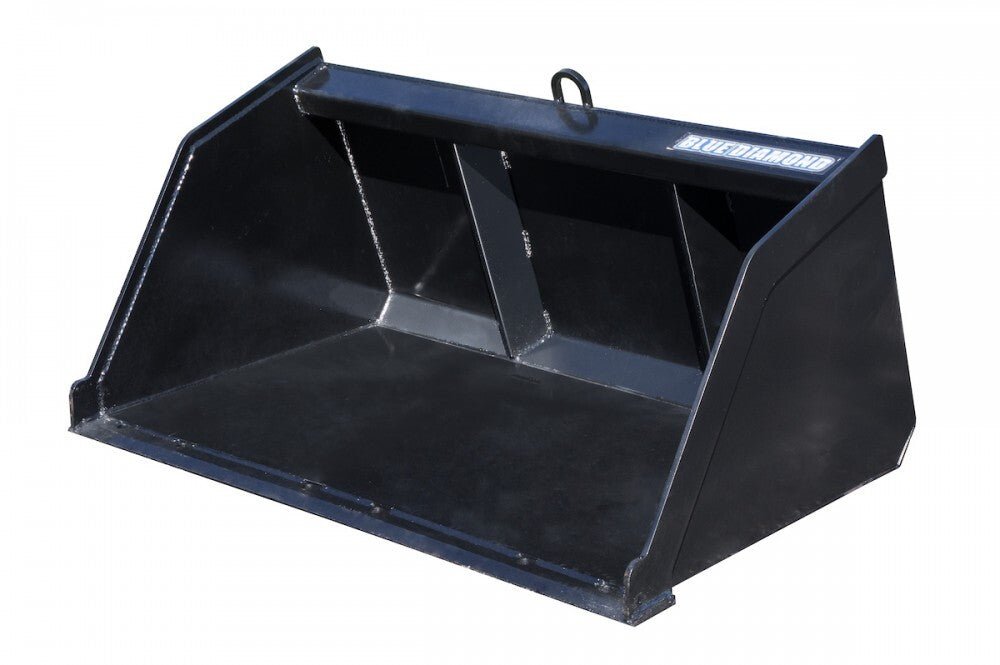

Blue Diamond Mini Skid Steer Snow And Mulch Bucket

$1,06300
Shipping calculated at checkout.
Size

The Blue Diamond® Mini Snow & Mulch Bucket is ideal for handling bulky items with your mini skid steer.

This bucket will survive the toughest conditions with its reinforced bracing in the main frame, wear bars on the underside, and quality construction. It is made of 3/16” steel and comes standard with a D-ring.

Features

  • Available to fit most mini skid steers
  • Standard widths: 36″, 44″, & 52″
  • Optional bolt-on cutting edge
  • Reinforced frame
  • 22″ tall
  • Standard D-ring

Product Specs

PART NUMBER MODEL STRUCK CAP. WEIGHT
108503 34” Bucket, Snow/Mulch, 22” Back 8.51 CU FT 101 lbs.
108505 36” Bucket, Snow/Mulch, 22” Back 9.41 CU FT 249 lbs.
108510 44” Bucket, Snow/Mulch, 22” Back 11.50 CU FT 414 lbs.
108512 48” Bucket, Snow/Mulch, 22” Back 12.09 CU FT 325 lbs.
108515 50” Bucket, Snow/Mulch, 22” Back 12.55 CU FT 310 lbs.
108517 52” Bucket, Snow/Mulch, 22” Back 13.64 CU FT 331 lbs.
108518 54” Bucket, Snow/Mulch, 22” Back 14.09 CU FT 450 lbs.
108520 60” Bucket, Snow/Mulch, 3/16” Wrap 15.17 CU FT 450 lbs.
108685 44” Bucket, Snow/Mulch, High Back W/Mesh 12.31 CU FT 400 lbs.
108690 48” Bucket, Snow/Mulch, High Back W/Mesh 13.5 CU FT 350 lbs.
108513 48” Bucket, Snow/Mulch 1 YARD 507 lbs.
108612 48” Bucket, Snow/Mulch, 1/4 Wrap 1 YARD 620 lbs.
