Shop Blue Diamond Attachments  |  SKU: 106440

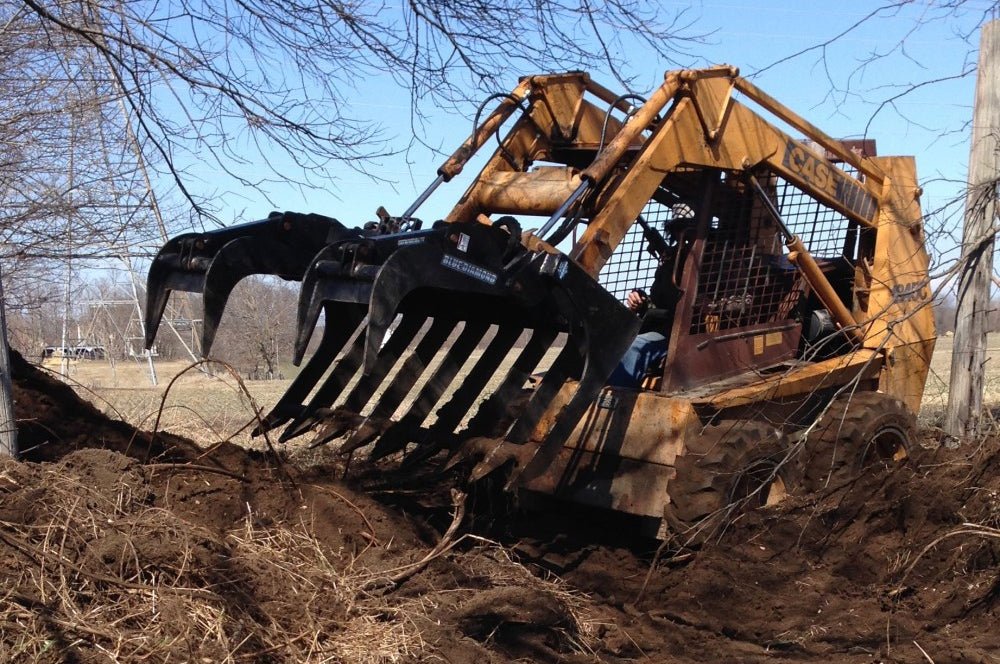

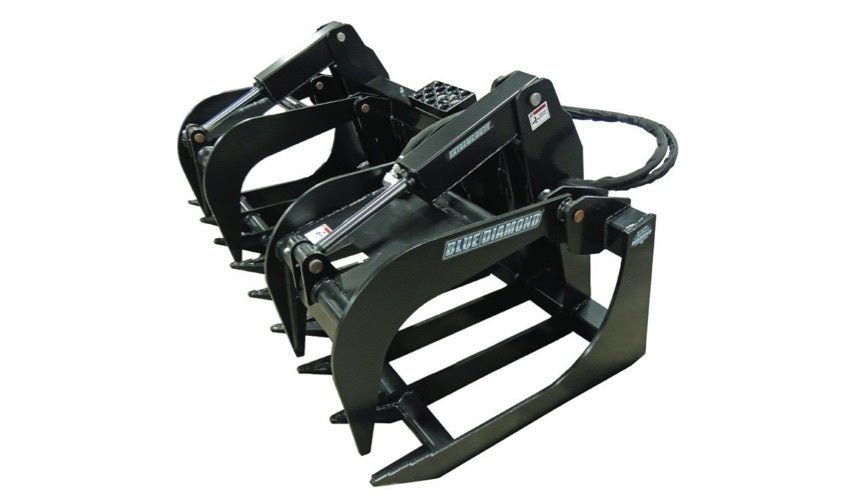

Blue Diamond Root Grapple – Severe Duty

$5,12200
Shipping calculated at checkout.
Size

This Blue Diamond® Severe Duty Root Grapple has a number of improved features that take it a step above the extreme design.

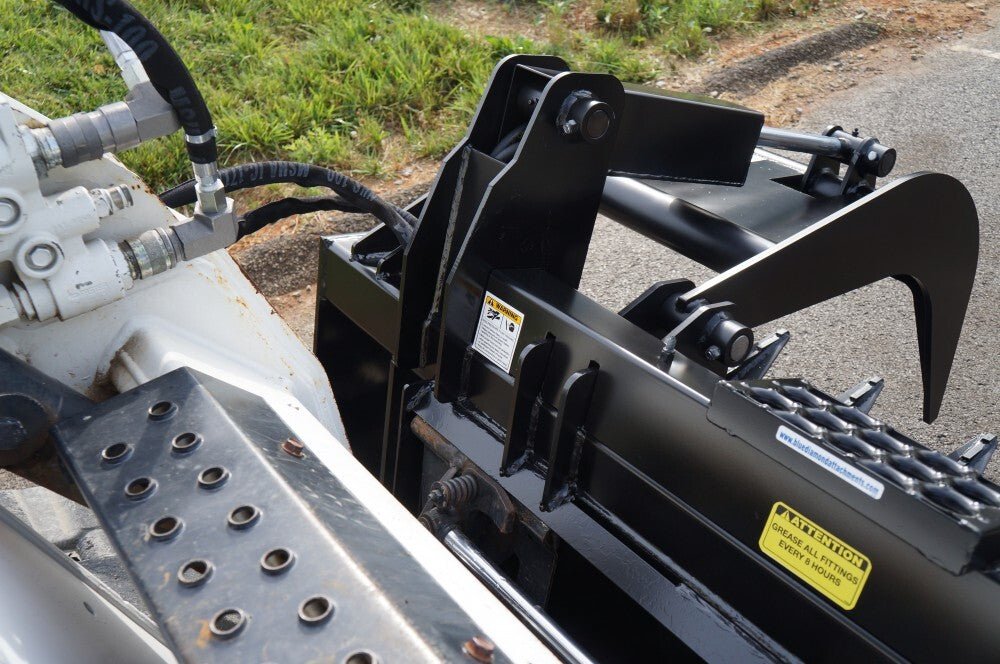

An enclosed back, heavier top clamps, 1-piece tines, and hose routing are all improvements to reinforce areas that are prone to damage from heavy use. In addition, extra long tubing in the top clamp prevents twisting.

Features

  • 1/2″, extra strong one-piece tines throughout
  • Closed in quick attach area
  • Reinforced top clamps

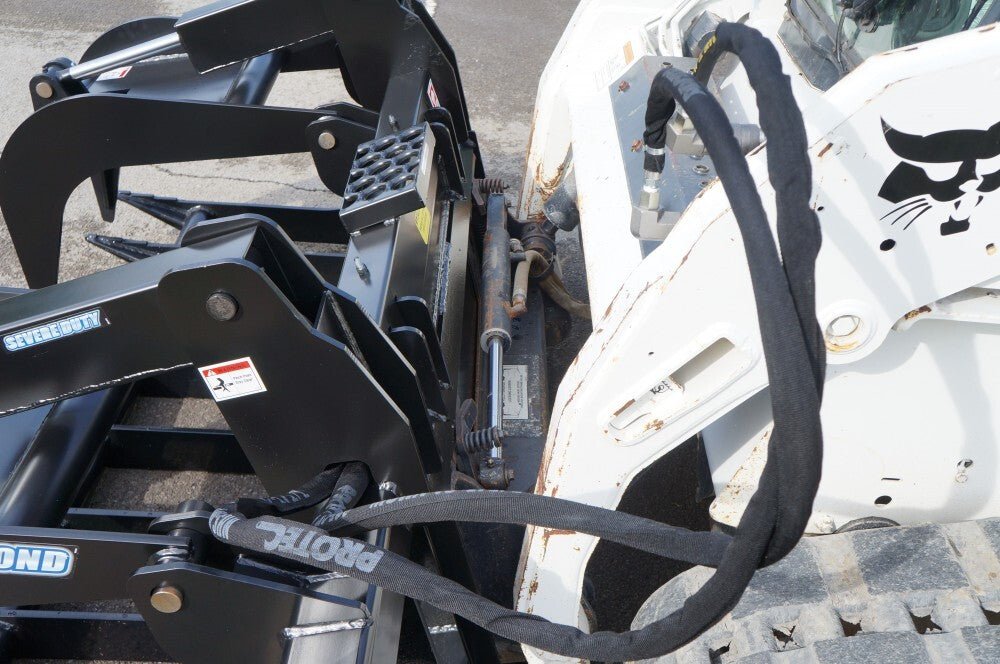

  • New "no pinch" hose routing
  • Opens to 34″
  • 35″ deep
  • 8″ tine spacing
  • 1 1/4″ pivot pins in bushings with grease fittings

Specifications

PART NUMBER MODEL WEIGHT
106440 66" Root Grapple, Severe Duty 608 lbs
106450 72" Root Grapple, Severe Duty 633 lbs
106460 78" Root Grapple, Severe Duty 689 lbs
106470 84" Root Grapple, Severe Duty 985 lbs

Severe Duty - for machines with 50+ HP.
