Shop Blue Diamond Attachments  |  SKU: 106022

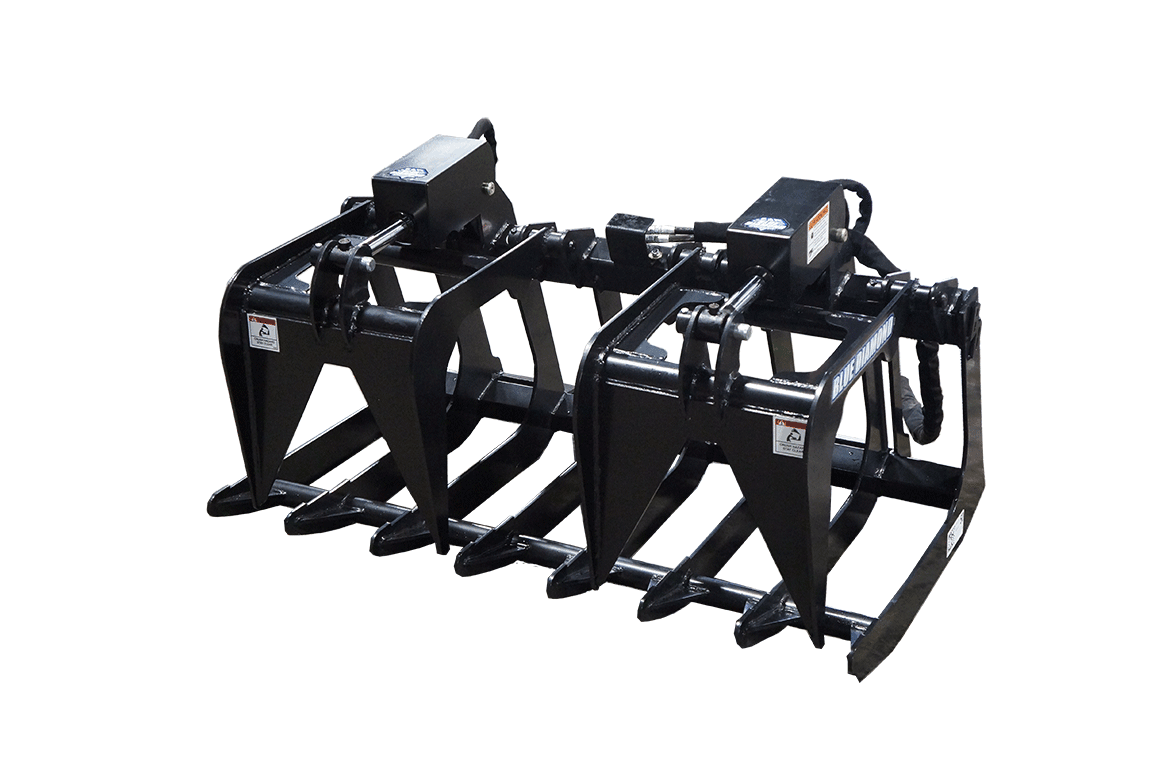

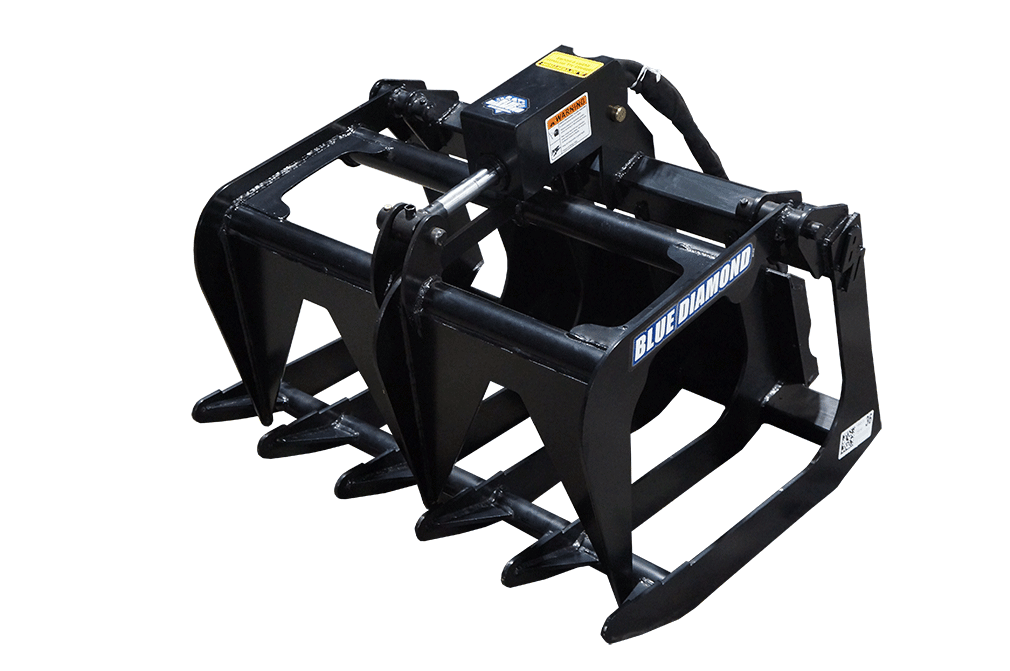

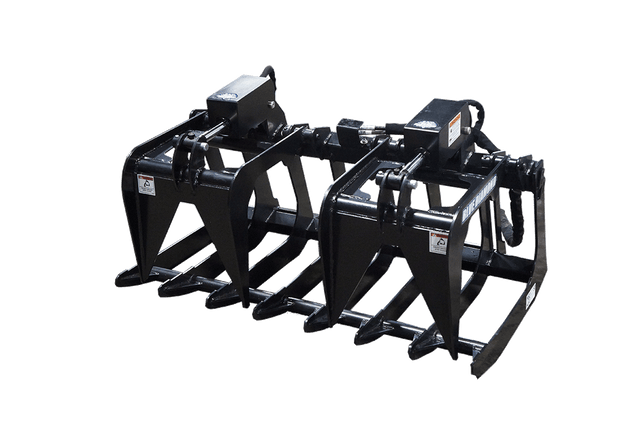

Blue Diamond Root Grapple – Mini Series

$2,37500
Shipping calculated at checkout.
Size

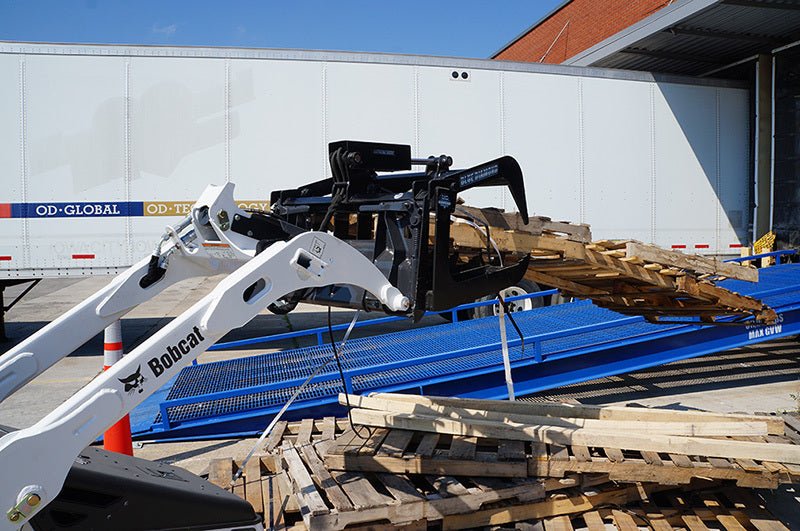

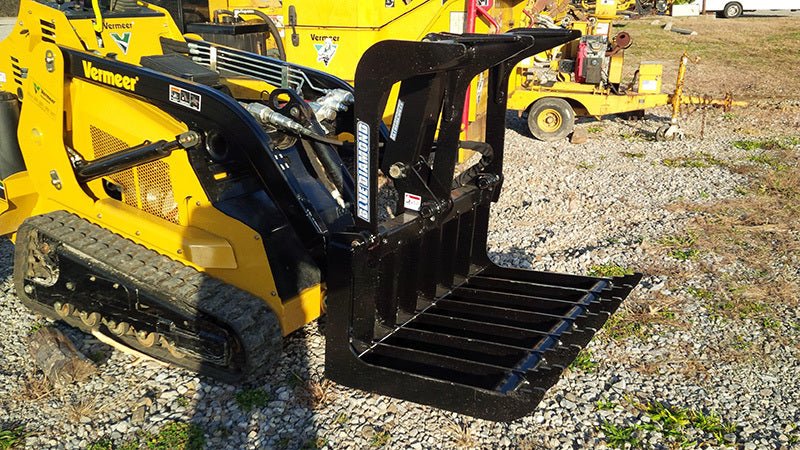

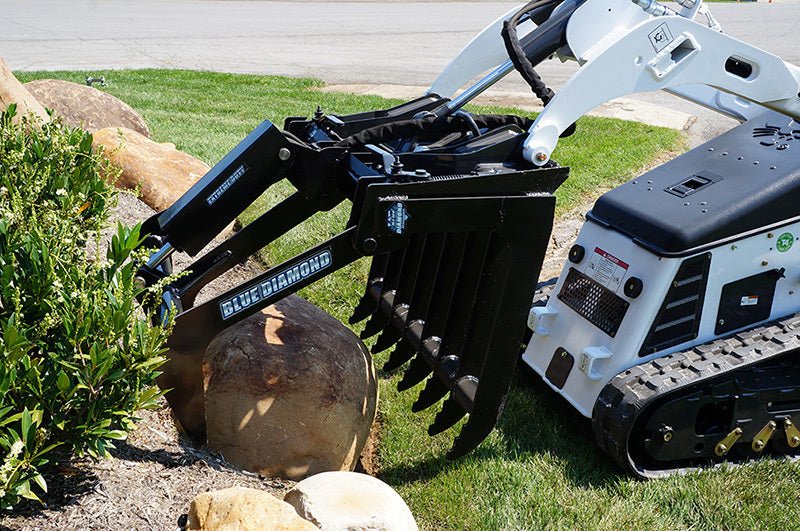

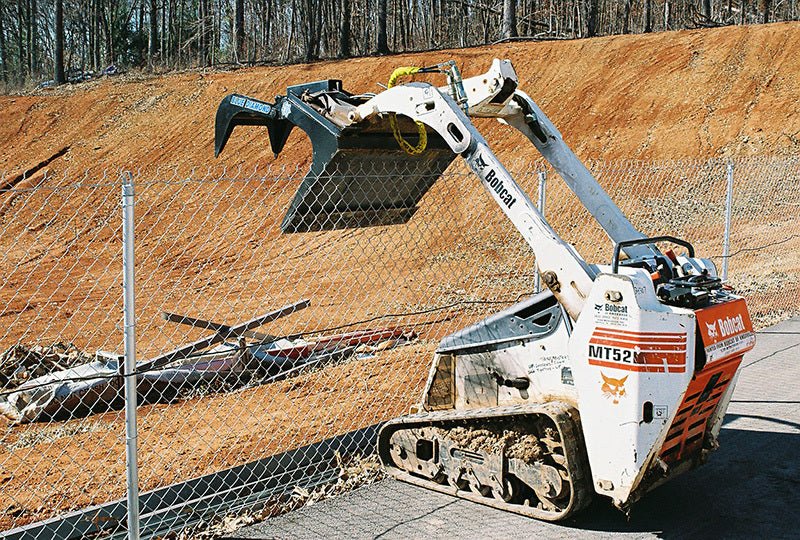

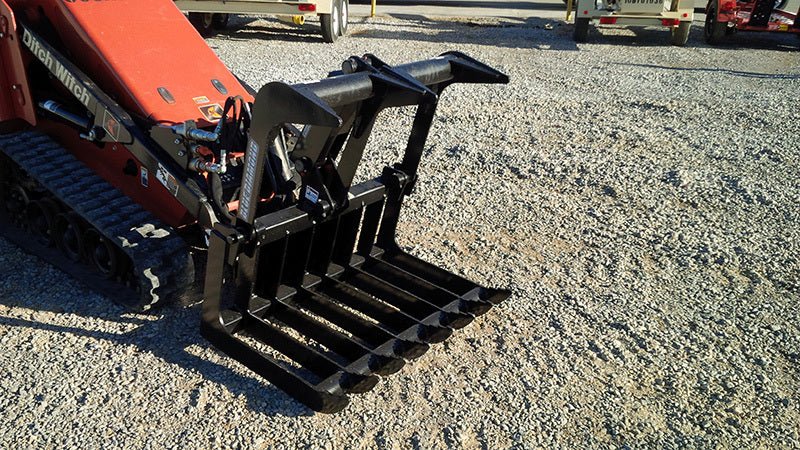

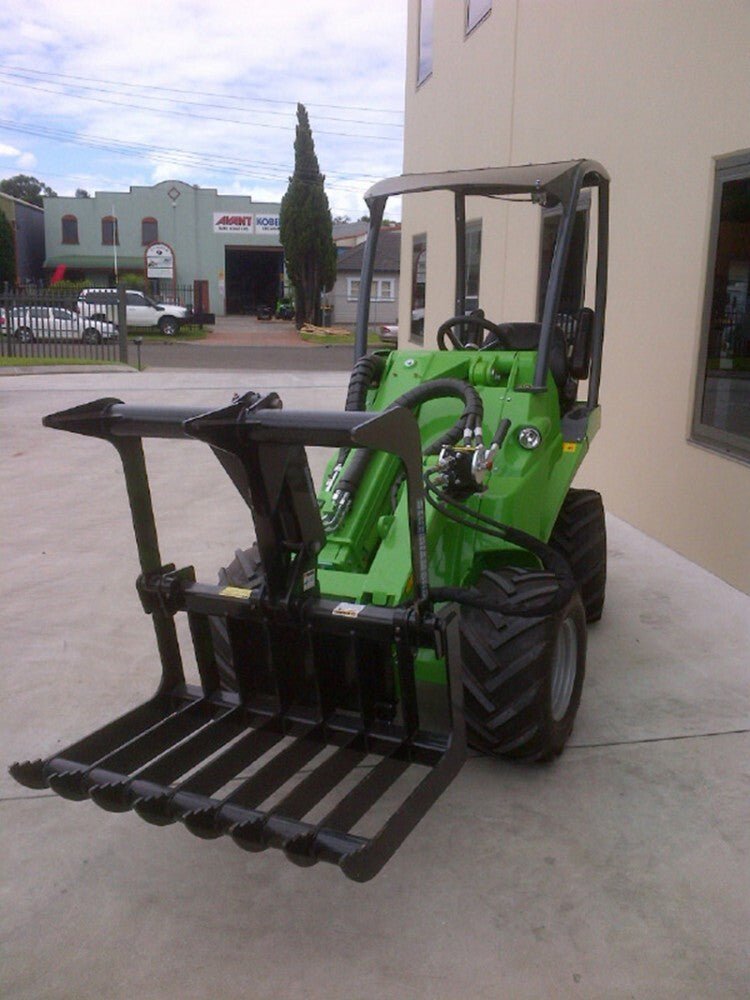

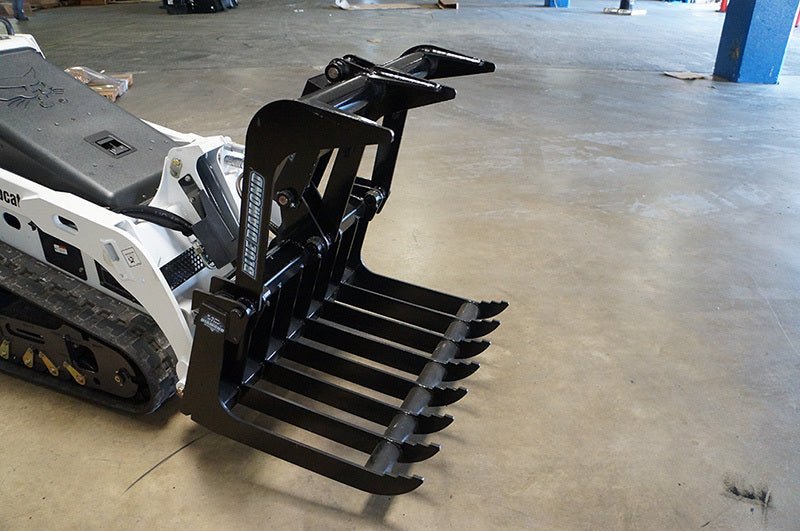

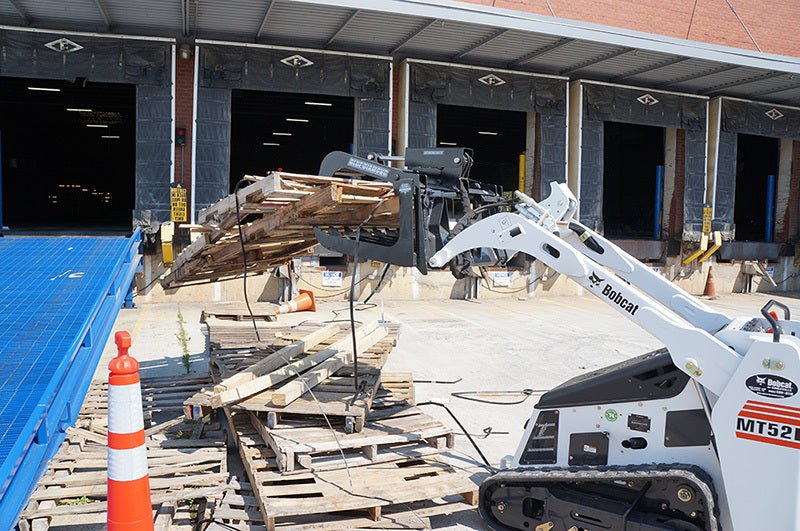

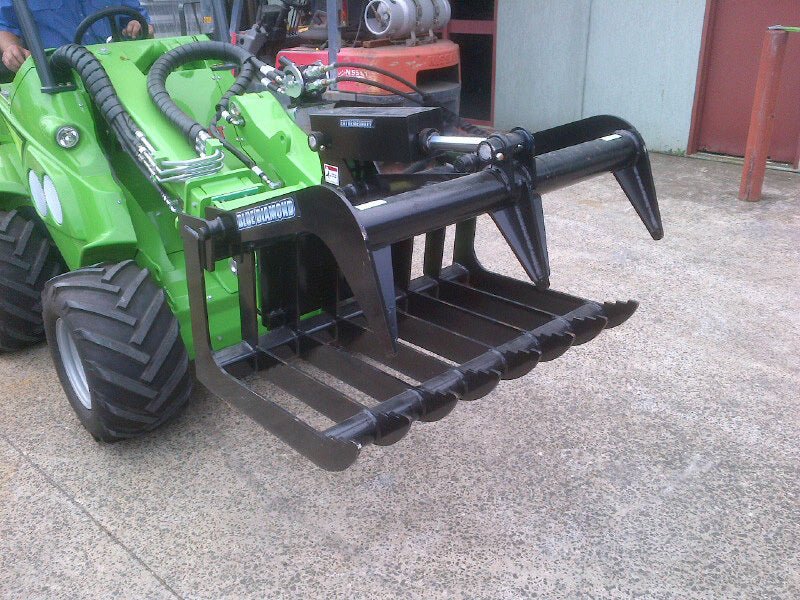

Blue Diamond® offers the Mini Series Root Grapple for your mini skid steer needs. These exceptionally tough grapples originated through a need for a tough yet light grapple for interior demolition.

This very demanding application gave this grapple an opportunity to make a name for itself as the top in its class. Industrial grade components, from the pivot pins to the cylinders, make this attachment ready for the most demanding conditions.

Features

  • 1” pivot pins in bushings
  • Welded cylinder with 2″ bore
  • Protected cylinder and lines
  • Available from 36″ to 59″ wide
  • Bolt-on edge included with grapple bucket

Product Specs

PART NUMBER MODEL WEIGHT
106022 36" Grapple, Root, Single Top Clamp 342 lbs
106025 38" Grapple, Root, Single Top Clamp 350 lbs
106031 42" Grapple, Root, Single Top Clamp 350 lbs
106033 44" Grapple, Root, Single Top Clamp 358 lbs
106040 50" Grapple, Root, Single Top Clamp 368 lbs
106043 50" Grapple, Root, Double Top Clamp 500 lbs
106425 54" Grapple Root, Severe Duty 825 lbs
106435 60" Grapple Root, Severe Duty 850 lbs
MINI SERIES ROOT GRAPPLE MANUAL
MINI ROOT GRAPPLE SPEC SHEET
