Shop Blue Diamond Attachments  |  SKU: 106220

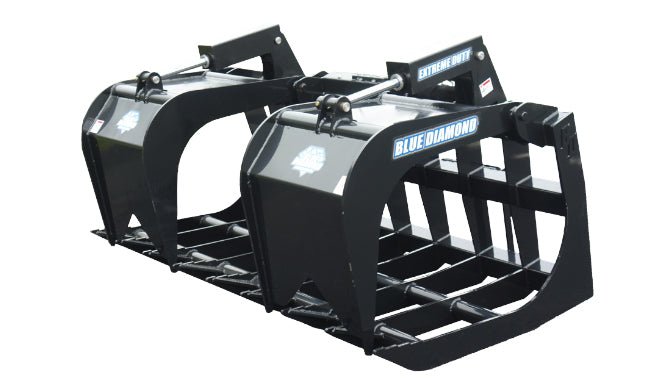

Blue Diamond Root Grapple – Extreme Duty High Capacity

$7,43000
Shipping calculated at checkout.
Size

This Blue Diamond® Extreme Duty High Capacity Root Grapple is designed to handle huge jobs with ease when attached to a skid steer.

The protected cylinders and hoses ensure that down time is kept to a minimum. From the heavily reinforced mount to the rugged top clamps, this grapple is one of the toughest on the market. The massive top clamps allow for 25"H x 42"D worth of material to be grabbed in each load.

Features

  • 3/8" thick tines with 1/2" top clamps
  • 25"H x 42"D opening inside of clamps
  • Opens to 59" at tip of tines/clamp
  • Dual acting cylinders
  • Heavily reinforced mount
  • Serrated tine tips to rip through roots

Specifications

PART NUMBER MODEL WEIGHT
106220 72" Grapple, Root, Extreme Duty, High Capacity 1,159 lbs
106230 78" Grapple, Root, Extreme Duty, High Capacity 1,194 lbs
106240 84" Grapple, Root, Extreme Duty, High Capacity 1,294 lbs
106260 96" Grapple, Root, Extreme Duty, High Capacity 1,360 lbs
