Shop Star Industries  |  SKU: 170-MI-44

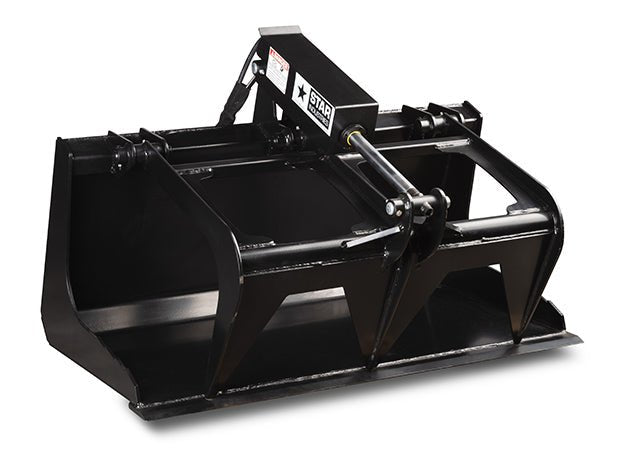

Star Industries Mini Root & Grapple Buckets

$1,92800
Shipping calculated at checkout.
Options
Fits

Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple or Grapple Bucket.

The root grapples let dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. The mini root grapple bucket has a solid bottom to keep all material in the bucket. Both open extra wide for a full load.

  • Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
  • Protective sleeves on all hydraulic lines

Mini Root Grapple

Model 170-MI-44 170-MIBC-44
Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
Empty Weight 245 lbs 245 lbs

Mini Grapple Bucket

Model 175-MI-44 175-MIBC-44
Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
Empty Weight 263 lbs 263 lbs

Specifications

Measurements Grapple Bucket Root Grapple
Width 44” O.D. 44” O.D.
Hyd. Cylinder 2” Bore by 10” Stroke 2” Bore by 10” Stroke
Grapple Tines 5/16” thick 5/16” thick
Grapple Max Opening 30” 30”
Overall Depth 35 ¾” 35 ½”
Overall Height 27 ¾” 26”
Bucket Height 21” 20”
Bucket Depth 26 3/8” Does not apply
Pivot Pins 1” DIA: Grease fittings on all pivot points 1” DIA: Grease fittings on all pivot points
Hyd. Hoses Protective sleeves on all hydraulic lines Protective sleeves on all hydraulic lines
Hyd. Quick-Disconnects Flat face couplers included Flat face couplers included
