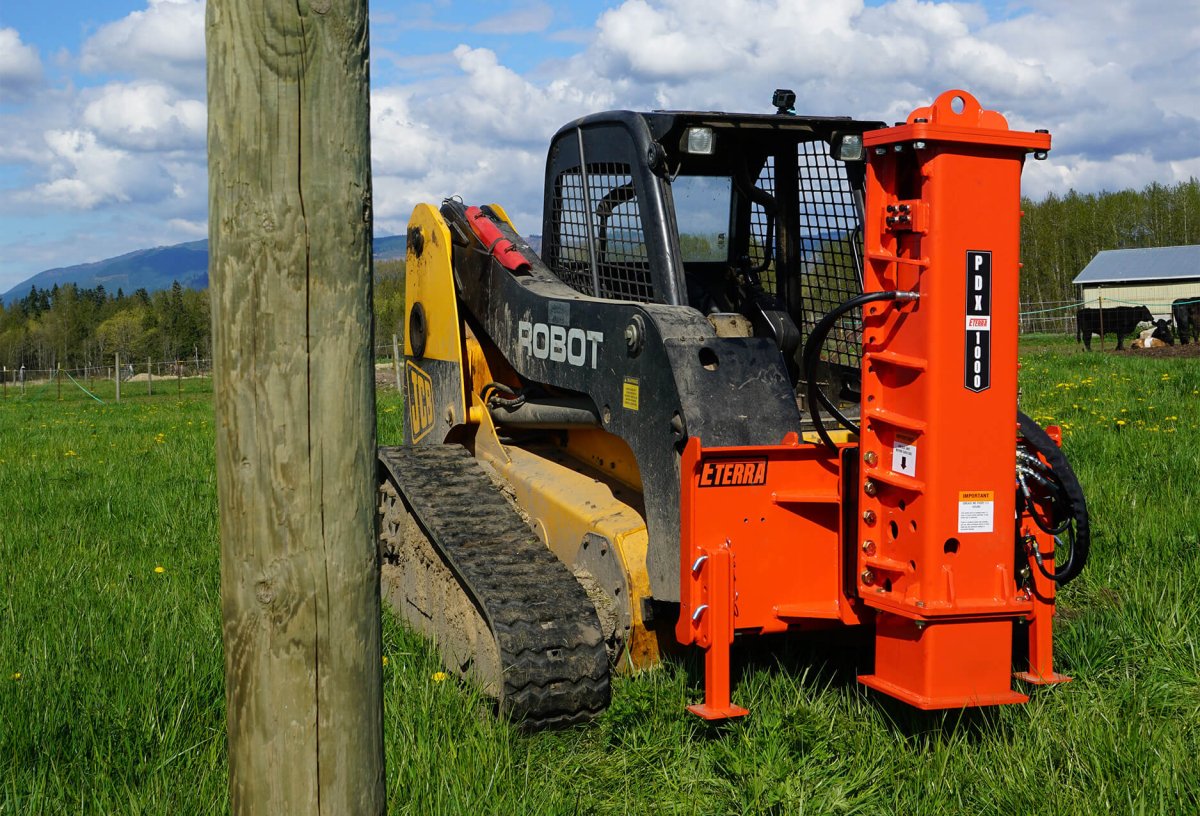

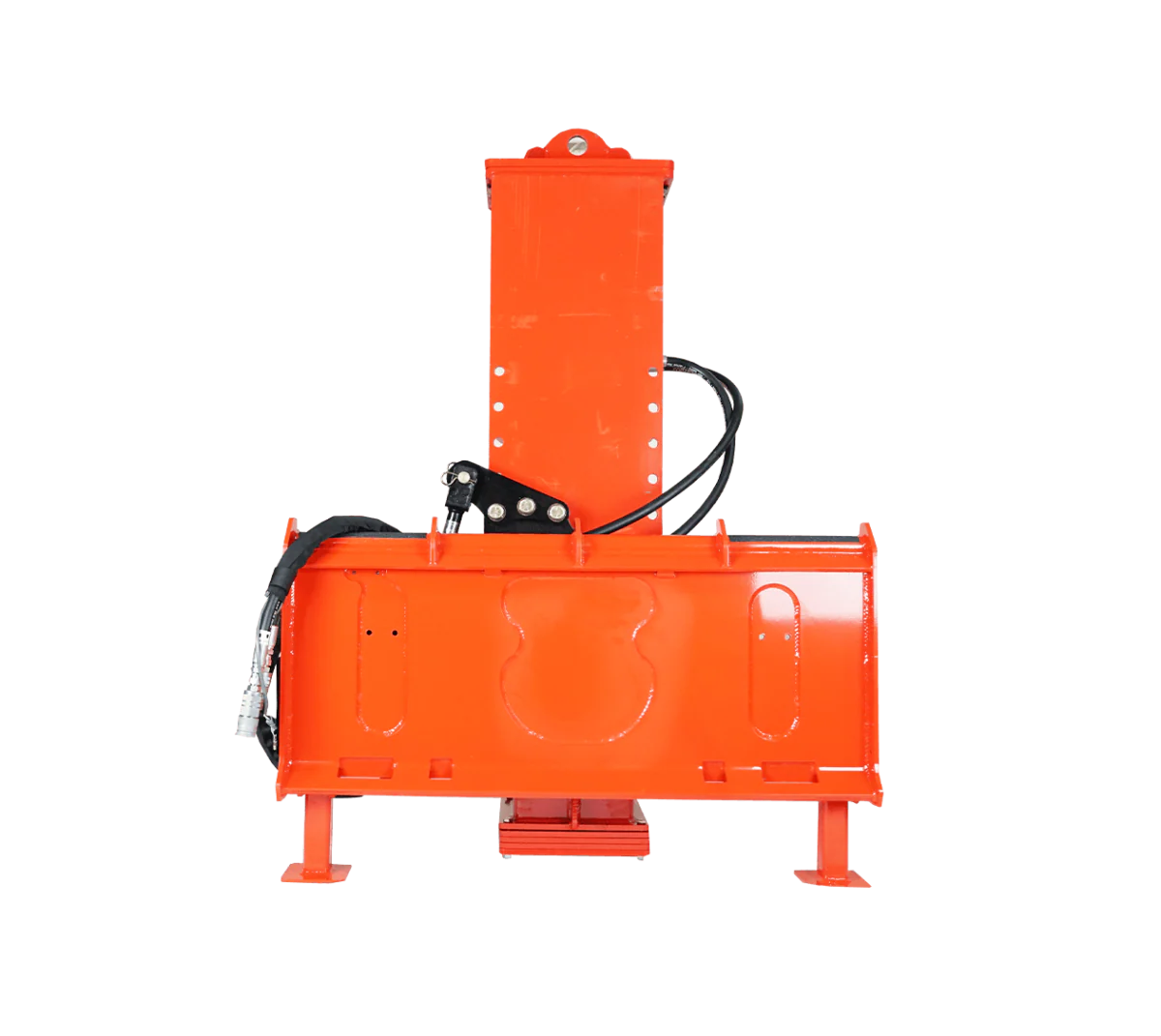

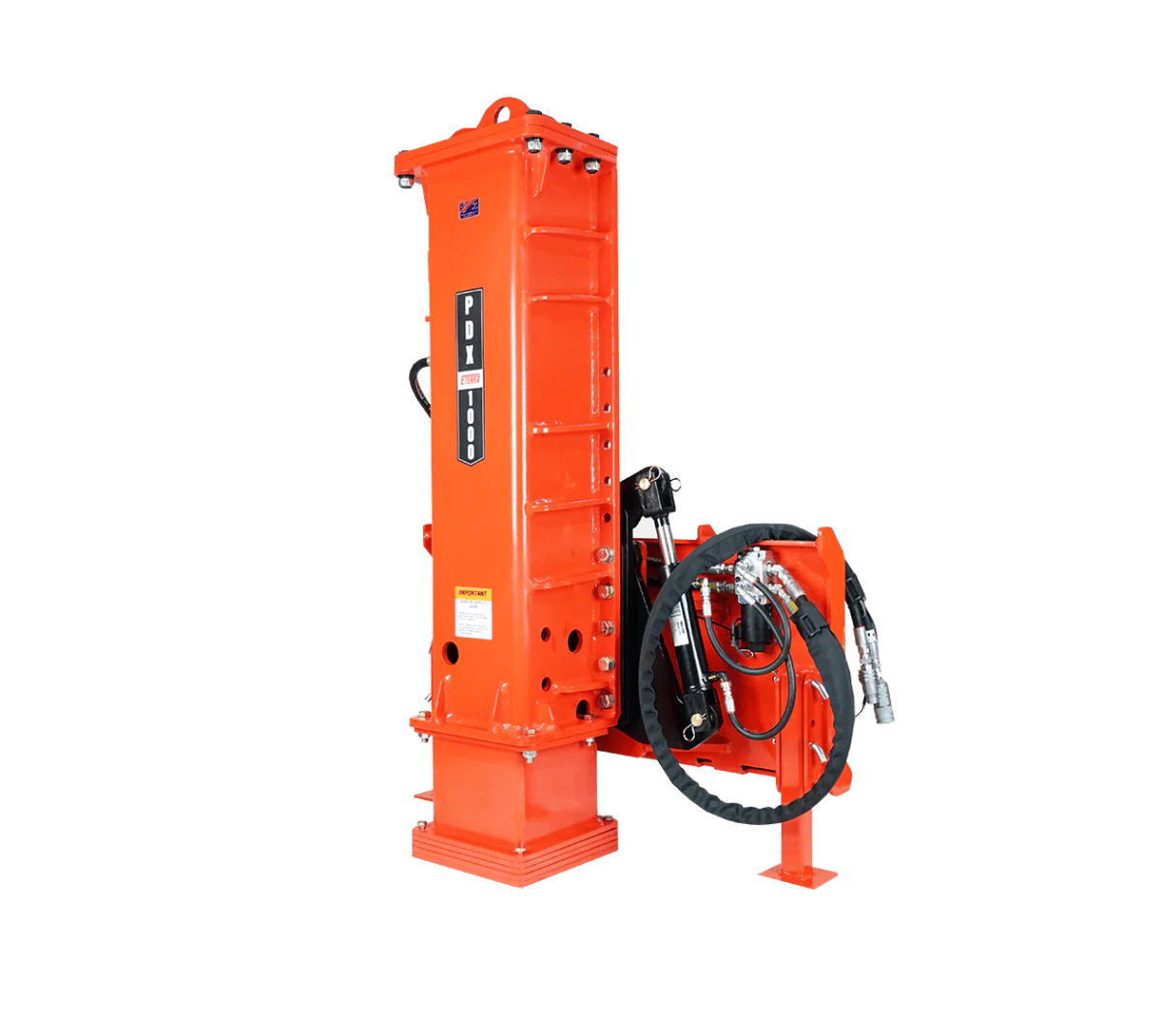

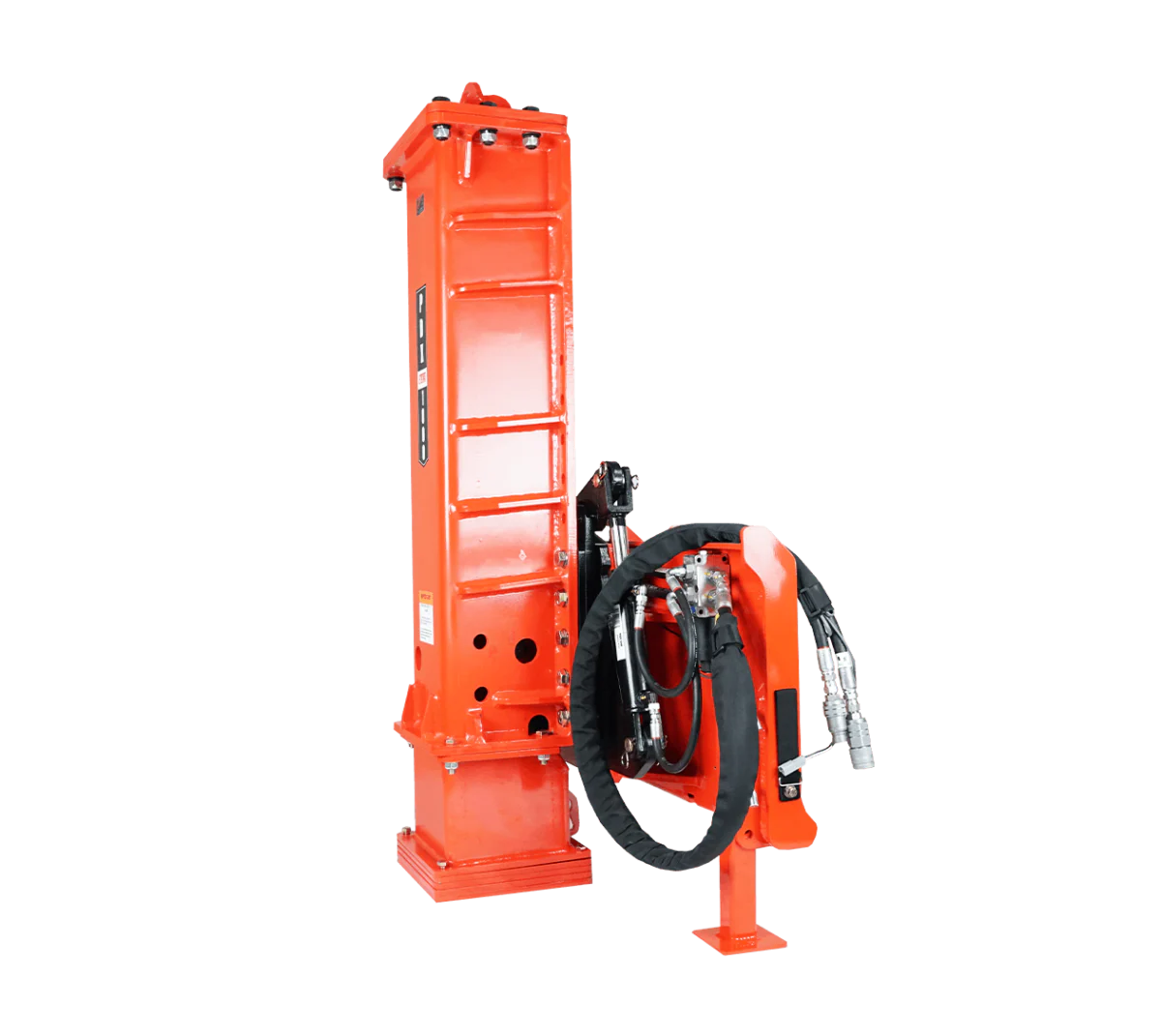

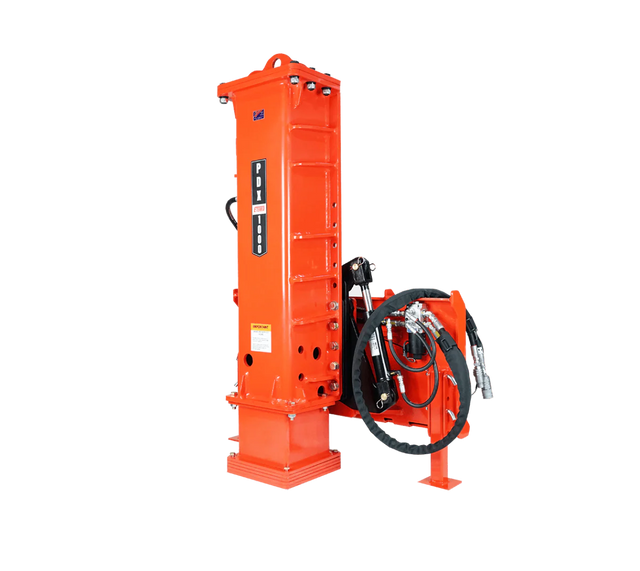

Eterra Pdx-1000 Post Driver Attachment

Simply more power and more reliability. The enclosed breaker style greatly reduces vibration and noise, and will drive posts so fast you'll wonder if you hit a soft spot.

Multiple driver head options and tilt functionality offer versatility, and a breaker spike allows for predrilling holes in extreme conditions. Easily mount on a skid steer or excavator with the simple bolt on system.

The PDX-1000 is hydraulically driven nitrogen charged, and fully isolated power cell enclosed in a durable housing, achieving 1000ft-lb energy class. Designed and assembled in the USA. Options include a domed driver head for posts 2"-8", and additional breaker spike for predrilling holes, and a tilt system providing 15 degrees of tilt in each direction.

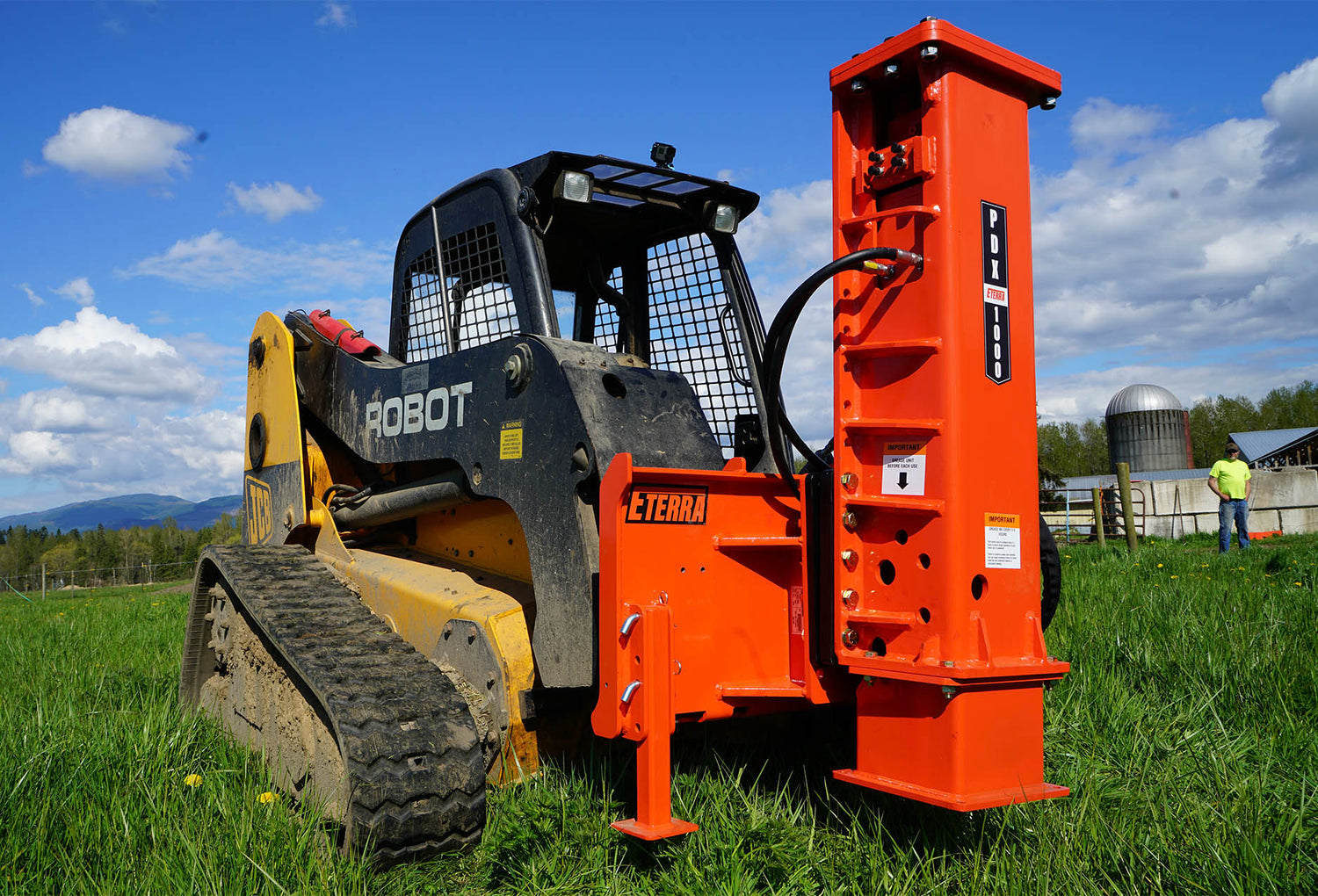

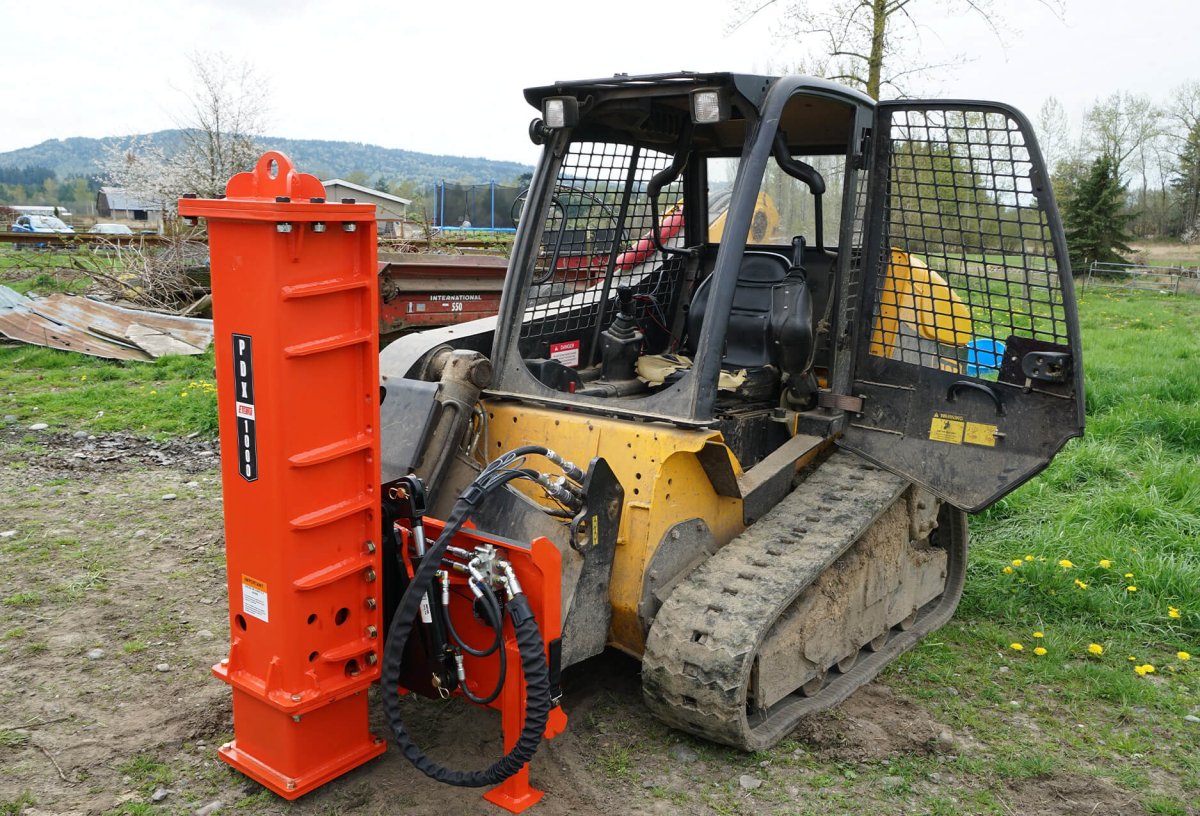

The PDX-1000 Skid Steer Post Driver uses a nitrogen charged power cell compressed by your machines hydraulics to deliver a powerful hit to drive posts quickly and effectively. It actuates at a very fast rate to ensure seamless post driving with no downtime. The tilt system can be added at any time and utilizes a high quality Rex Roth valve.

Features

• Hydraulically driven nitrogen charged power cell - Fully isolated and enclosed in durable housing
• 1000 ft-lb energy class with 32,000 lbs force impact
• Enclosed breaker style greatly reduces vibration and noise
• Multiple driver head options - Domed driver head for posts 2"-8" (9" diameter, max 8" post)
• Breaker spike option for predrilling holes in extreme conditions

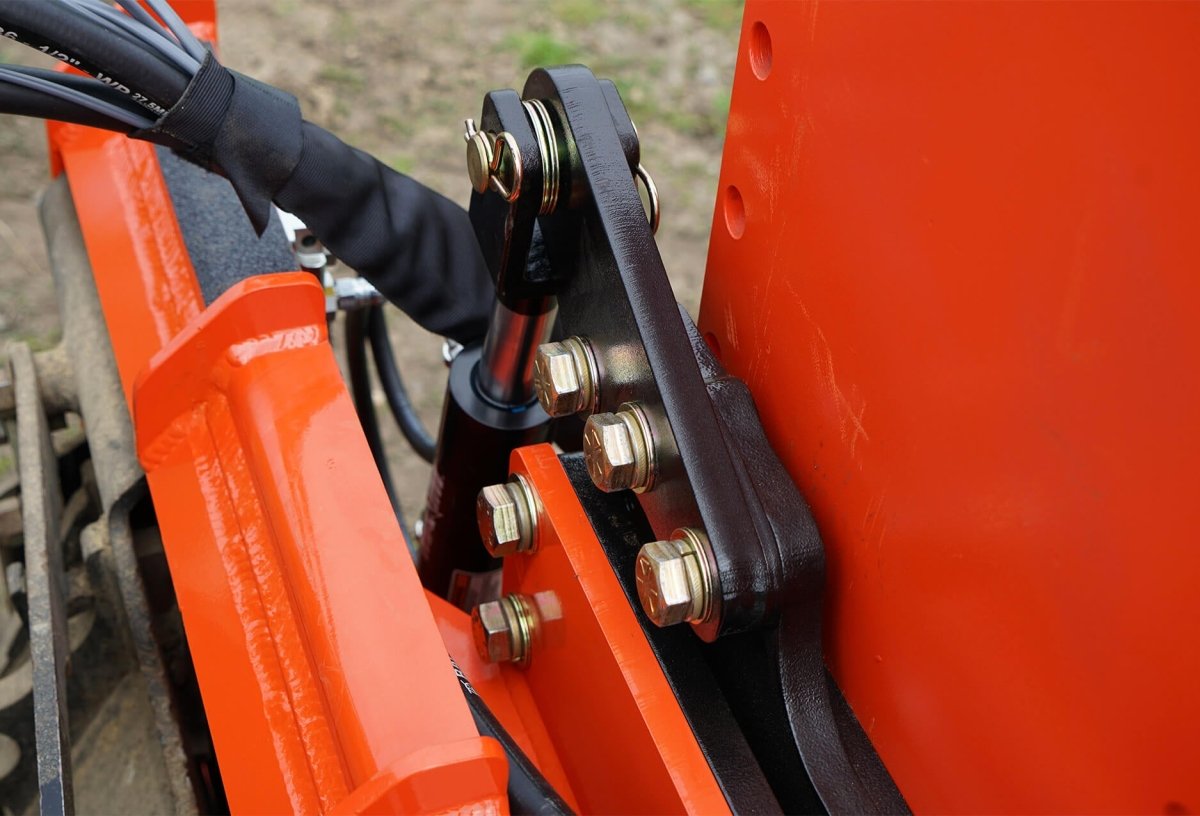

• Optional tilt system - 15 degrees of tilt in each direction (PDX-1000T)
• High quality Rex Roth valve for tilt system
• Simple bolt on mounting system - Works with skid steer or excavator
• A572 Grade 50 steel construction with heavy duty reinforced mounting plate
• Rubber isolators around power cell - Protects from impact force and reduces vibration
• 4140 Steel driver head material
• ASTM A500 Grade B tube steel housing
• Fast actuation rate ensures seamless post driving with no downtime
• Minimum machine lift capacity: 1500 lbs
• Operating pressure: 1700 PSI (minimum 1400 PSI)
• Nitrogen charge pressure: 250 PSI
• American made quality - Designed and assembled in the USA

Specifications
