Shop Star Industries  |  SKU: 1390B

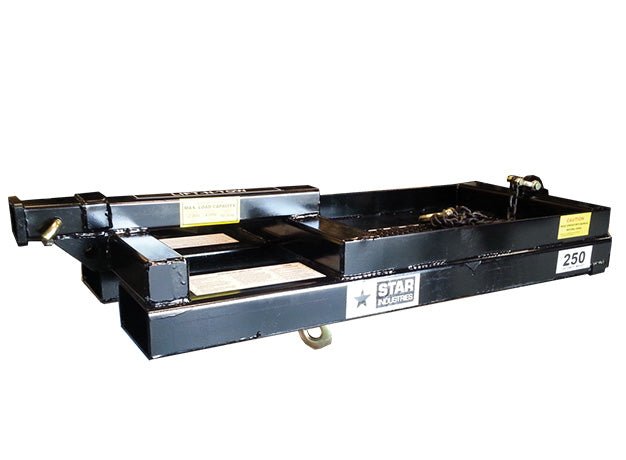

Star Industries Lift-N-Tow

$1,29500
Shipping calculated at checkout.
Options

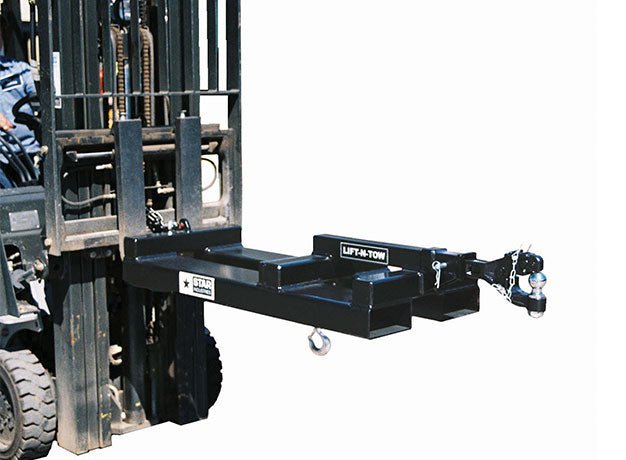

Safely lift, load & tow with your forklift

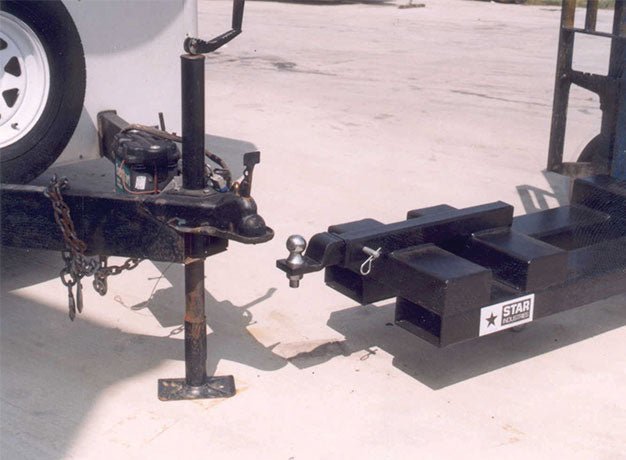

Don't risk an OSHA citation. Star Industries Lift-N-Tow is the safe and easy way to lift, load and tow with your forklift. Simply slip over the forks and swap between ball, pintle and combination hitches to lift and tow all types of loads weighing up to a massive 10,000 lbs for the standard Lift-N-Tow, a massive 16,000 lbs towing weight for the Super Duty Lift-N-Tow and 30,000 lb with the Navy Lift-N-Tow.

Features

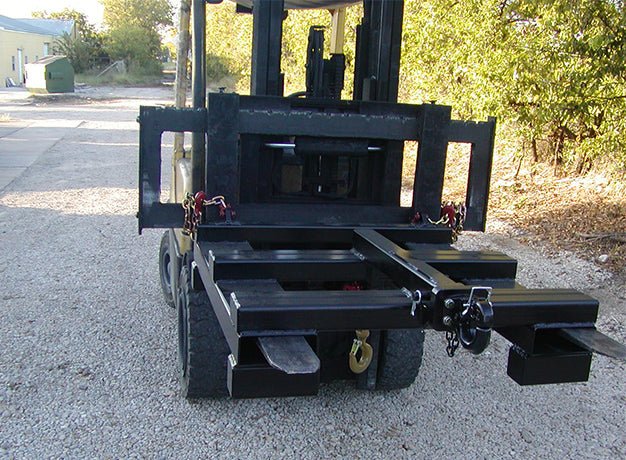

  • Universal 'slip on forks' style

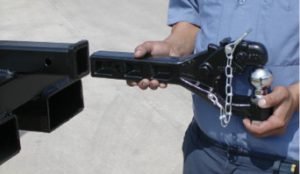

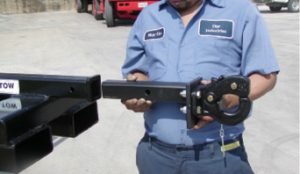

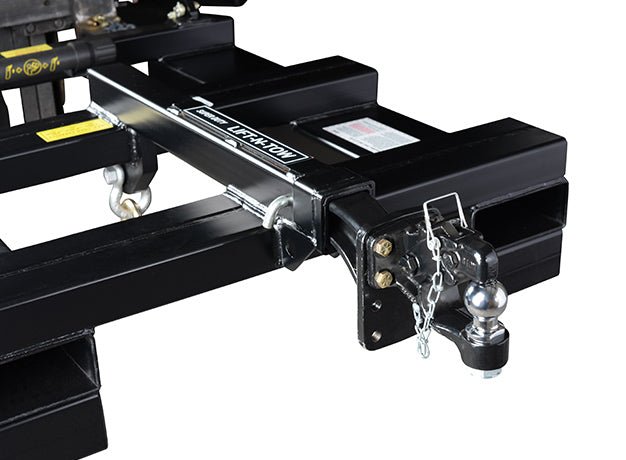

  • Easily swap between ball, pintle and combination hitches
  • Rugged heavy-duty construction for increased durability and long life
  • Includes convenient tool tray on 1390B

Lift-N-Tow Specifications

Model Accepts forks Max Lift Capacity on Swivel Hook Max Lift Capacity on Receiver Jib Max Gross Towing Weight Weight (w/o Hitch Adaptor) Fork Pocket Size Center-to-center of Fork Opening Pocket Ends
1390B - Lift-N-Tow 6" w x 2 ¾" thick 4,000 lbs 2,000 lbs 10,000 lbs 220 lbs 48" long x 6 ¾ x 3" ID 13 ¼" Open
1395B - Super Duty Lift-N-Tow 8" w x 2 ¾" thick 10,000 lbs 3,000 lbs 16,000 lbs 400 lbs 48" long x 8 ¾ x 3" ID 34 ¾" Open

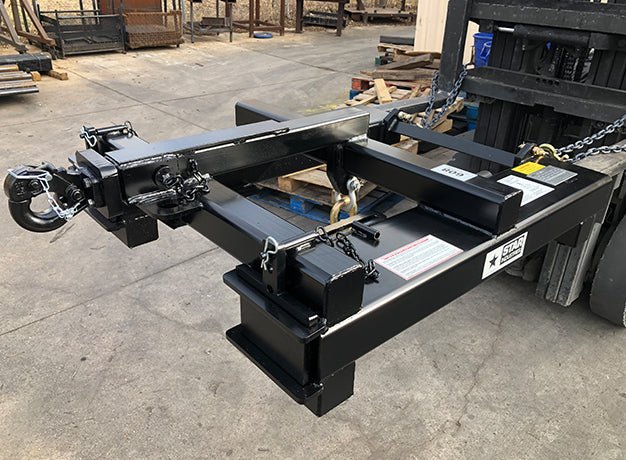

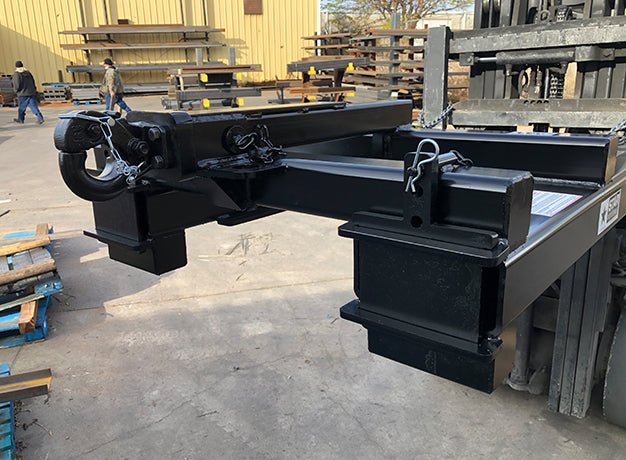

1396C - Navy Lift-N-Tow 8″ w x 2 ¾" thick 12,000 lb 6,000 lbs 30,000 lbs 505 lbs 48" long x 8 ¾ x 3" ID 34 ¾" Open

Lift-N-Tow & Hitches sold separately.

Hitch Adapter Specifications

Model For Lift-N-Tow Model Style of Adapter Max Vertical Lift Max Gross Towing Weight Horizontal Center of Gravity Weight (Adapter Only)

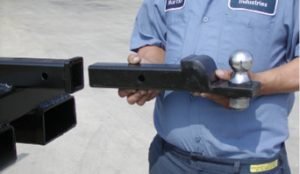

1391 1390B 2" Ball 600 lbs 10,000 lbs 28" 10 lbs
1392 1390B Pintle 2,000 lbs 10,000 lbs 29" 15 lbs
1393 1390B Combo 2,000 lbs 10,000 lbs 30" 20 lbs
1394PH 1395B Pintle 3,000 lbs 16,000 lbs 29" 21 lbs
1394CH 1395B Combo 3,000 lbs 16,000 lbs 30" 25 lbs

Note: Pintle Hitch included with model 1396C Navy Lift-N-Tow. A hitch is required for the Lift n Tow. Hitches sold separately.

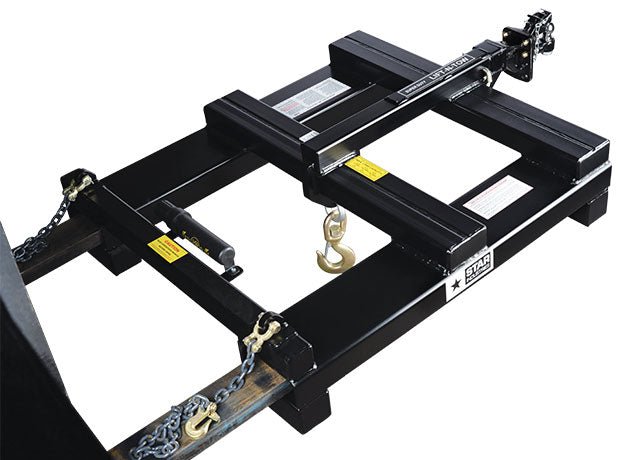

Safety Warning: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.
