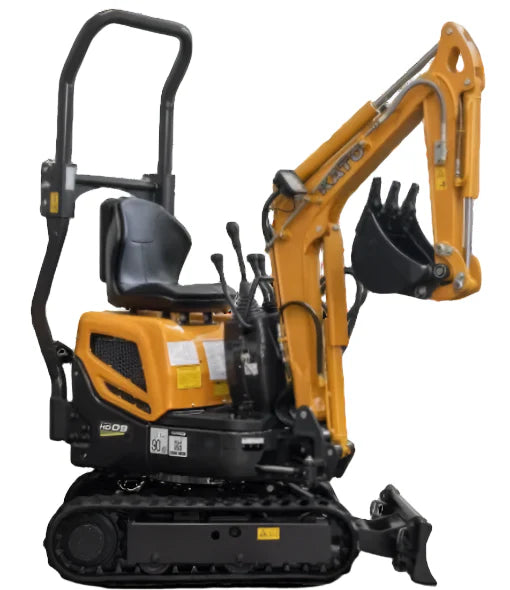

Kato HD9V5 Mini Excavator

$29,00000
Shipping calculated at checkout.
Options

Comfortable, Easy-to-Use, and Stable Mini Excavator

The V5 Mini Excavator is built for efficiency, stability, and ease of use. Featuring a fold-down canopy, folding push blade, expandable rubber tracks, and auxiliary hydraulics to the front, this machine is designed for maximum versatility. With a digging depth of 5'2", an output rating of 9.9 HP, and an operating weight of 2,400 lbs, it delivers impressive performance in a compact size.

The V5 series not only offers zero tail swing but also increases digging force by 10%. Its responsive 4-pump hydraulic system provides fast, smooth operation, while fuel efficiency and low maintenance make it a reliable choice. Safety is prioritized with features like an auto-parking brake and neutral engine start, ensuring secure and user-friendly operation.

Specifications

Performance
Bucket Capacity 0.77 ft³
Bucket Width 12"
Operating Weight 2,400 lbs.
Transport Weight 2,169 lbs.
Swing Speed 8.0 rpm
Travel Speed (Low / High) 1.1 mph / 1.9 mph
Gradeability 30°
Ground Pressure 4.4 psi
Bucket Digging Force 2,340 lbs.
Engine

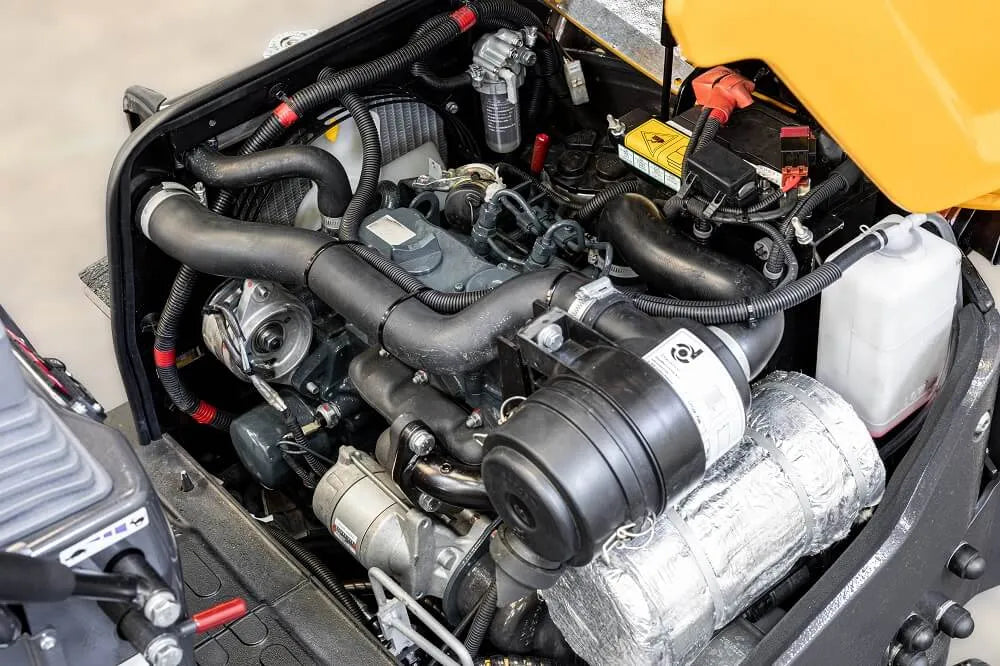

Model Kubota D722
Output Rating 9.9 hp @ 2000 rpm
Fuel Tank Capacity 2.9 gallons
Boom Swing System
Type Offset Boom with Hydraulic Cylinder
Swing Angle (L / R) 50° / 70°
Hydraulic System
Total Hydraulic Flow 5.9 gpm
Max Auxiliary Hydraulic Flow 4 gpm
Size 2’5” x 8.6”
Lift Above / Drop Below Ground 8.6” / 6”
