Shop Kato  |  SKU: KATO 25v5

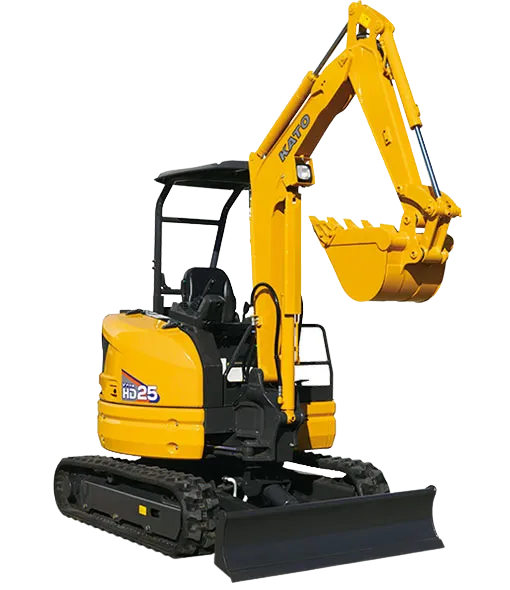

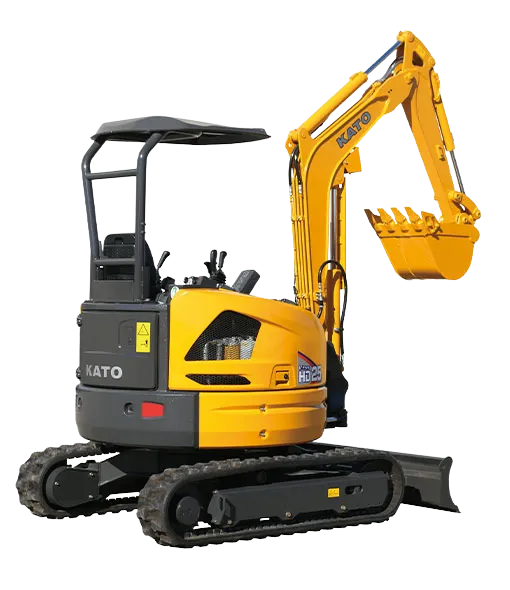

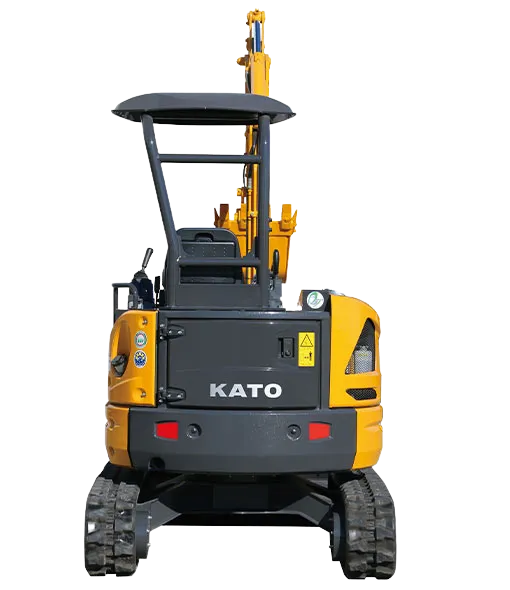

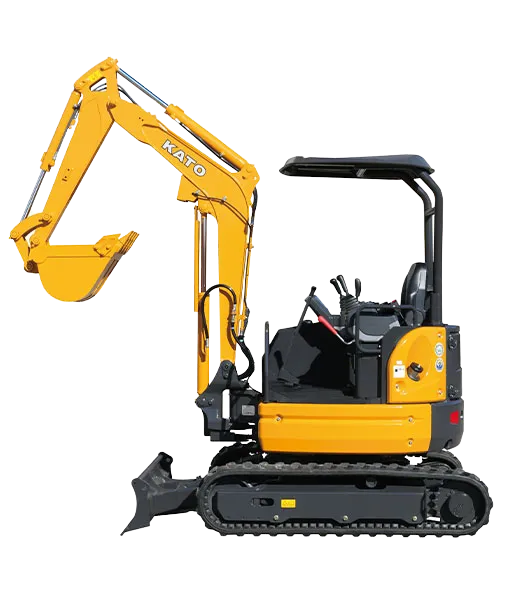

HD25 Mini Excavator

$42,00000 $43,00000
Shipping calculated at checkout.

Powerful, Stable, and Easy-to-Use Mini Excavator

The V5 Mini Excavator delivers strong digging power with a compact design, making it ideal for tight access job sites. With an 8-foot digging depth, a 23.6 HP output rating, and an operating weight of 5,919 lbs., this machine is engineered for performance and reliability. Its zero-tail swing design, 10% higher digging force, and responsive 4-pump hydraulic system make it the ultimate mini excavator for contractors.

Comfortable and user-friendly, the V5 series is fuel efficient, low-maintenance, and includes safety features such as an auto-parking brake and neutral engine start to prevent errors and ensure safe operation.

Specifications

Performance (Key Specs)
Bucket Capacity 2.8 ft³
Bucket Width 18"
Operating Weight 5,919 lbs.
Transport Weight 5,512 lbs.
Swing Speed 9 rpm
Travel Speed (Low / High) 1.5 mph / 2.7 mph
Gradeability 30°
Ground Pressure 4.5 psi
Bucket Digging Force 4,721 lbs.
Engine
Model Kubota D1305-E4B
Output Rating 23.6 hp @ 2400 rpm
Fuel Tank Capacity 11 gallons
Boom Swing System
Type Offset Boom with Hydraulic Cylinder
Swing Angle (L / R) 50° / 80°
Hydraulic System
Total Hydraulic System Flow 20 gpm
Max Auxiliary Hydraulic Flow 11 gpm
Dozer Blade
Size 5’1” x 1’3”
Lift Above / Drop Below Ground 1’2” / 1’5”
