Shop Blue Diamond Attachments  |  SKU: 174005

Blue Diamond Blue Diamond Material Roller

$10,82100
Shipping calculated at checkout.
Models

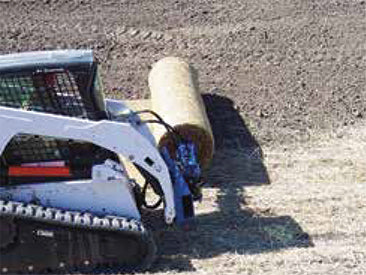

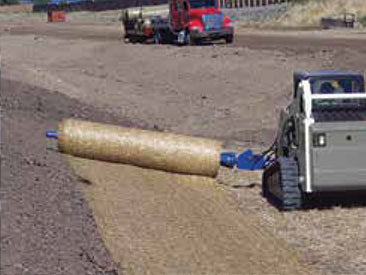

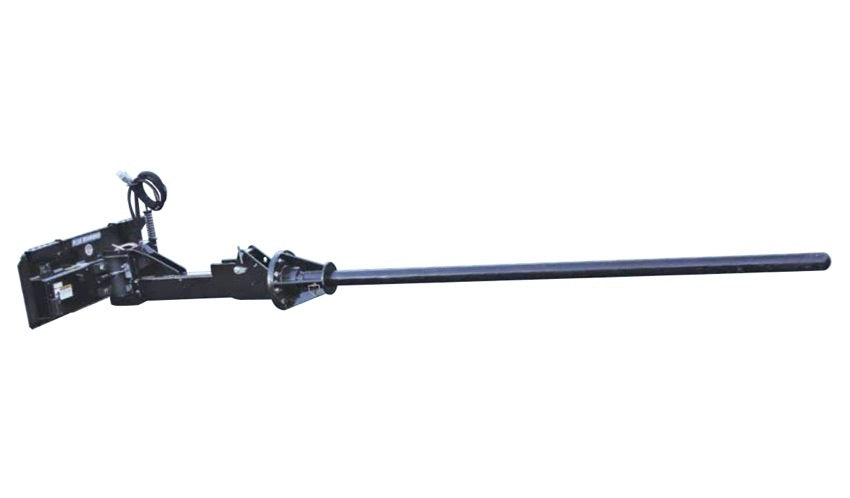

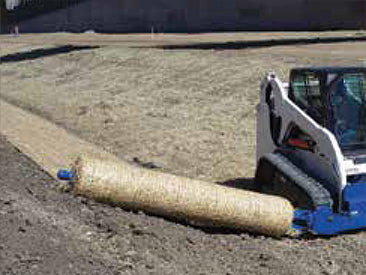

Your workday just got a lot easier. Introducing the Blue Diamond® Skid Steer Material Roller.

Precisely crafted and ruggedly built, the material roller will not only lighten your load but will also cut your crew requirements by almost half. From loading to unloading the flatbed to laying down roll after roll, any project will get done faster with less physical effort with the material roller.

Features

  • Pivot arm locks for storage and transport
  • Pivot arm adjustable stop allows for below horizontal operation
  • Quickly and easily mounts on any skid steer
  • Hydraulic actuator allows the stem to swing 180˚ left or right, 115˚ up, and 8˚ down
  • Detachable stem available in 3 lengths
  • Retaining collar with quick pin keeps material perfectly positioned on the stem

Specifications

PART NUMBER MODEL WEIGHT
174005 Material Roller, Hydraulic Side Angle (Requires Stem) 500 lbs.
174105 3.5" Diameter, Roll Stem for 4' Wide Roll 40 lbs.
174110 3.5" Diameter, Roll Stem for 6.67' Wide Roll 60 lbs.
174115 3.5" Diameter, Roll Stem for 8' Wide Roll 66 lbs.
174120 3.5" Diameter, Roll Stem for 16' Wide Roll 174 lbs.
174130 2 3/8" Diameter, Roll Stem for 4' Wide Roll 18 lbs.
174135 2 3/8" Diameter, Roll Stem for 6.67' Wide Roll 28 lbs.
174140 2 3/8" Diameter, Roll Stem for 8' Wide Roll 33 lbs.
