Shop Kenco  |  SKU: PL2150

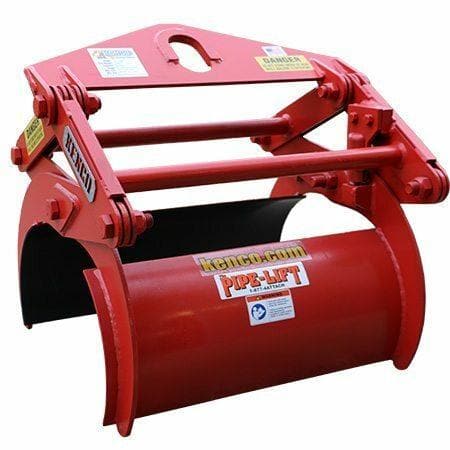

Kenco Pl2150 Pipe Lift

$2,75000
Shipping calculated at checkout.
Made in USA

Pipe Lifter with a 2,150 pound lifting capacity

  • 2150 pound capacity
  • Fits O.D 10.75 inches to 15.30 inches
  • 10", 12", and 14" PVC, STEEL, Ductile Iron or C900 PVC

DESCRIPTION

PL2150 PIPE LIFT - PATENT: 6012752

The PL2150 Kenco Pipe Lift uses the power of gravity to allow the scissor action of this lifter to clamp securely on PVC, iron or concrete pipe. If you have ever tried to move pipe using straps or teacups, you'll appreciate how the Kenco Pipe Lift increases productivity. One operator can use these concrete pipe tongs to grab, lift and move pipe without assistance.

Double your production output versus the sling and chain methods with lifting clamps. The Pipe Lift's unique, wide scissor-grip design permits a secure lift - even when the pipe is not centered. The machine operator simply sets the concrete pipe tongs down over the pipe. The legs will automatically grab and hold on tightly until the pipe is set down firmly into position.

This 2150 pound capacity lifter will handle outside diameter pipe sizes from 10.75 inches to 15.30 inches. Lifts 10", 12", and 14" PVC, STEEL, Ductile Iron or C900 PVC.

*The tongs are rubber lined to ensure a secure grip on the smooth surfaces.



PL1500 Through PL3500 are 30" wide. The PL4500, PL7000 and PL8500 are 36" wide.
Note: There may be pipe tongs lifting devices not listed. Pipe outside diameter and weight are the determining factors for choosing the correct lifter.

ADDITIONAL INFORMATION

WEIGHT 240 lbs
DIMENSIONS 42 × 42 × 24 in



MODEL OD RANGE
INCHES/CM		 PVC, STEEL, ID / OD (TYP.) DUCTILE/ C900 PVC ID/OD (TYP.) RCP ID/OD (TYP.) CAPACTIY LBS/KG A B C WEIGHT LBS./KG
PL1500 4.50" - 9.05"
11.43 - 22.98 		4"/4.50"
6"/6.63"
8"/8.63" 		4"/4.80"
6"/6.90"
8"/9.05" 		N/A 1500 / 680.5 25.75 19.25 11.75 115/52.3
PL2000 8.63" - 13.20"
21.92 - 33.52 		8"/8.63"
10"/10.75"
12"/12.75" 		8"/9.05"
10"/11.10"
12"/13.20" 		N/A 2000 / 907.2 29 22 16 150 / 68.2
PL2150 10.75" - 15.30"
27.30 - 38.86 		10"/10.75"
12"/12.75"
14"/14.00" 		10"/11.10"
12"/13.20"
14"/15.30" 		N/A 2150 / 975.2 35 26 17.5 180 / 81.8
PL2250 12.75" - 17.40"
32.38 - 44.19 		12"/12.75"
14"/14.00"
16"/16.00" 		12"/13.20"
14"/15.30"
16"/17.40" 		12"/16.00" 2250 / 1021 37.25 32 18.75 270 / 122.7
PL2500 14.00" - 23.00"
35.56 - 58.42 		14"/14.00"
16"/16.00" 		14"/15.30"
16"/17.40"
18"/19.50"
20"/21.60" 		12"/16.00"
15"/19.50"
18"/23.00" 		2500 / 1134 43.5 35.75 25.25 320 / 145.5
PL2750 18.00" - 25.80"
45.72 - 65.53 		18"/18.00"
24"/24.00" 		18"/19.50"
20"/21.60"
24"/25.80" 		15"/19.50"
18"/23.00" 		2750 / 1247 46.5 38.5 28.25 350 / 159.1
PL3000 23.00" - 32.00"
58.42 - 81.28 		24"/24.00"
30"/30.00" 		24"/25.80"
30"/32.00" 		18"/23.00"
21"/26.50"
24"/31.50" 		3000 / 1361 52.75 48 33.25 500 / 227.3
PL3500 30.00" - 38.50"
76.20 - 97.79 		30"/30.00"
36"/36.00" 		30"/32.00"
36"/38.30" 		24"/31.50"
27"/35.00"
30"/38.50" 		3500 / 1688 52.75 54.75 41 580 / 263.6
PL4500 36.00" - 45.50"
91.44 - 115.57 		36"/36.00"
42"/42.00" 		36"/38.30"
42"/44.50" 		30"/38.50"
36"/45.50" 		4500 / 2041 66.5 72 50 1240 / 563.6
PL7000 42.00" - 52.50"
106.68 - 133.35 		42"/42.00"
48"/48.00" 		42"/44.50"
48"/50.80" 		36"/45.50"
42"/52.50" 		7000/3175 72.75 74.5 55.25 1380/627.3
PL8500 48.00" - 59.50"
121.92 - 151.13 		48"/48.00"
54"/54.00" 		48"/50.80"
54"/57.56" 		42"/52.50"
48"/59.50" 		8500/3856 77 84.5 62.75 1530/695.5
