Shop Blue Diamond Attachments  |  SKU: 108946-HB

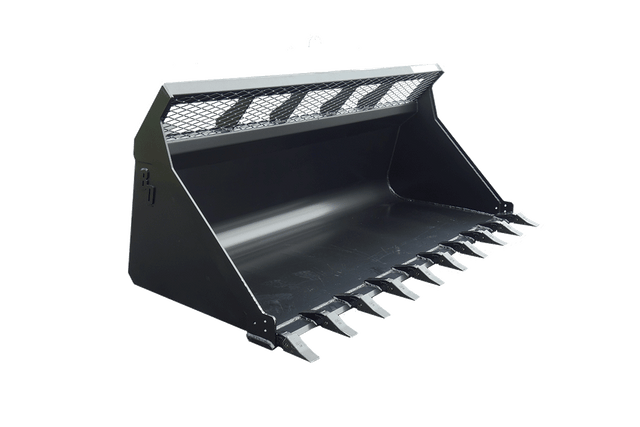

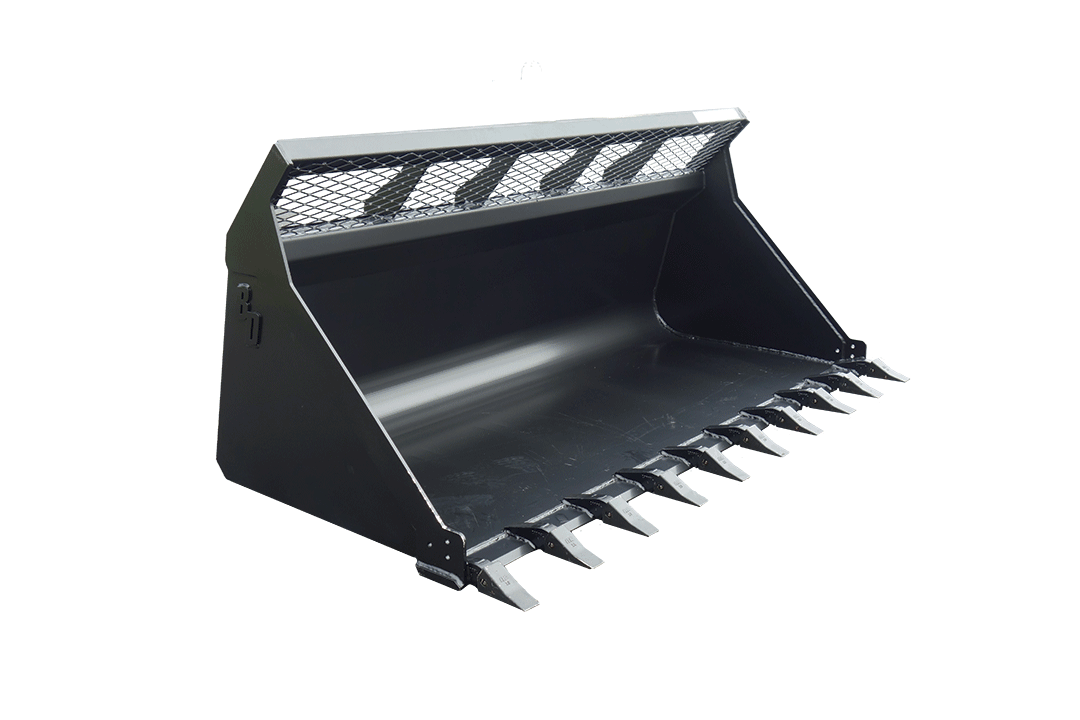

Blue Diamond Utility Buckets – High Capacity/High Back

Regular price $5,29300
Shipping calculated at checkout.
Size
Style

Maximize productivity with the Blue Diamond High-Capacity High Back Utility Bucket featuring massive capacity and exceptional visibility.

The Blue Diamond High-Capacity High Back Utility Buckets are key for productivity on the jobsite. With a durable reinforced back and massive capacity (28 inches high by 37 inches deep), these buckets are sure to meet whatever demands you can throw at them. The mesh in the back provides exceptional visibility while maintaining structural integrity, and the optional bolt-on side cutters help scrape materials into the bucket. Built with 1/4-inch material in the back and floor, double plate reinforcement on the mount, heavy top crossbar, and boxed-in bottom corners, these buckets deliver the strength and durability needed for demanding applications.

Features

  • High capacity: 28" high x 37" deep
  • 1/4" material in back and floor for durability
  • Double plate reinforcement on mount
  • Heavy top crossbar and boxed-in bottom corner for strength
  • Mesh back for exceptional visibility
  • Rolled back for easy clean out
  • 1/2" wear bars on bottom
  • Safety steps for operator convenience
  • Smooth model includes bolt-on edge (BOE)
  • Tooth option available
  • Optional bolt-on side cutters
  • Available in 72", 78", 84", 90", and 96" widths
  • Massive capacity for increased productivity

Specifications

Part Number Model Weight
Tooth Models
108946-HB 72" High-Back/High-Capacity Utility - Tooth 930 lbs
108950-HB 78" High-Back/High-Capacity Utility - Tooth 965 lbs
108954-HB 84" High-Back/High-Capacity Utility - Tooth 1,033 lbs
108957-HB 90" High-Back/High-Capacity Utility - Tooth 1,035 lbs
108959-HB 96" High-Back/High-Capacity Utility - Tooth 1,055 lbs
Smooth Models with Bolt-On Edge
108944-HB 72" High-Back/High-Capacity Utility - Smooth w/BOE 945 lbs
108948-HB 78" High-Back/High-Capacity Utility - Smooth w/BOE 980 lbs
108952-HB 84" High-Back/High-Capacity Utility - Smooth w/BOE 1,015 lbs
108956-HB 90" High-Back/High-Capacity Utility - Smooth w/BOE 1,050 lbs
108958-HB 96" High-Back/High-Capacity Utility - Smooth w/BOE 1,070 lbs
