Shop Blue Diamond Attachments  |  SKU: 108260

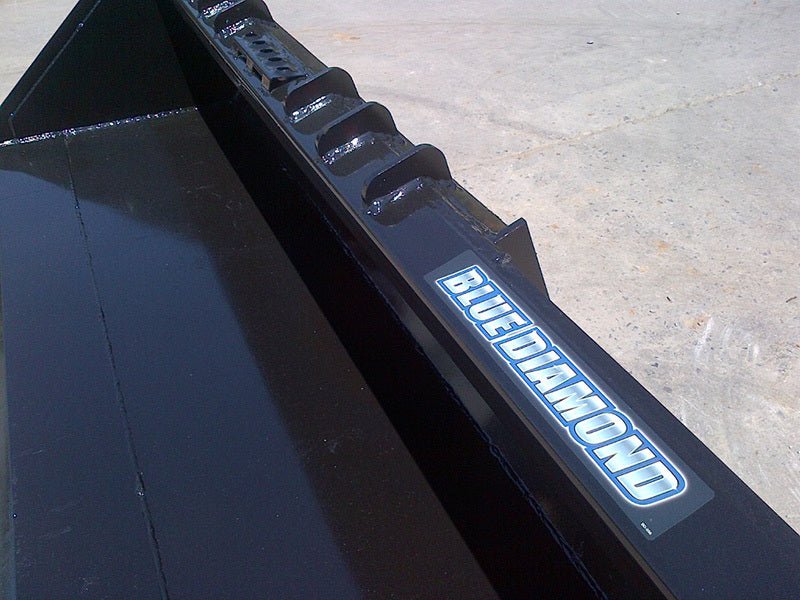

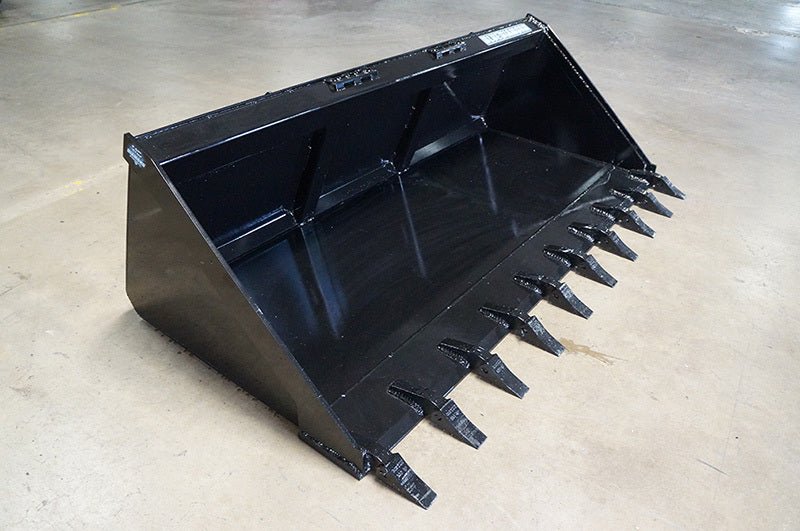

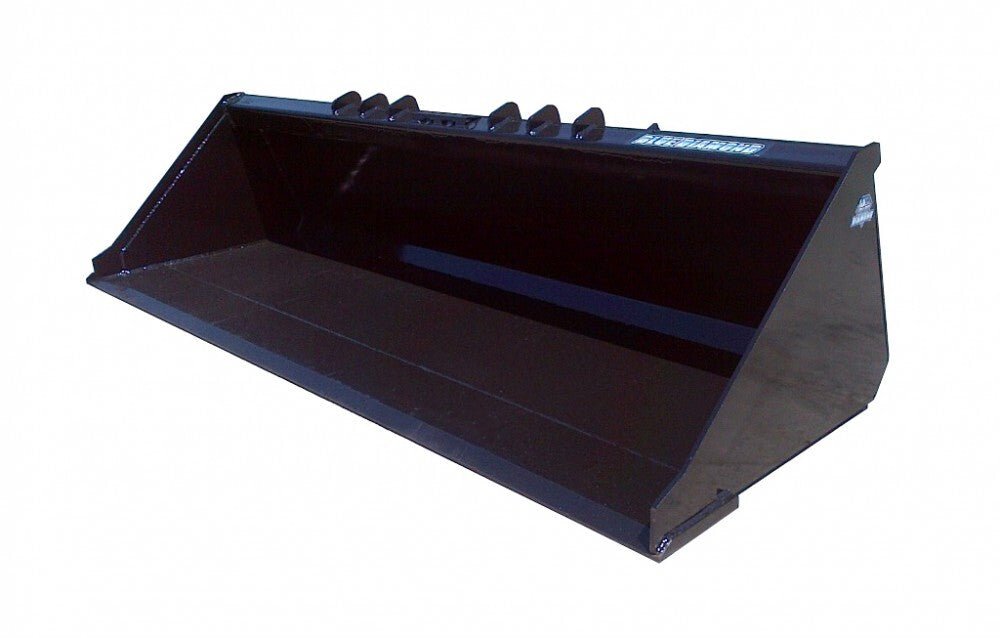

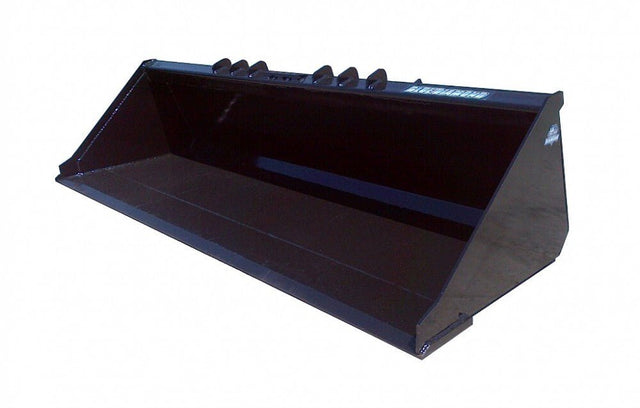

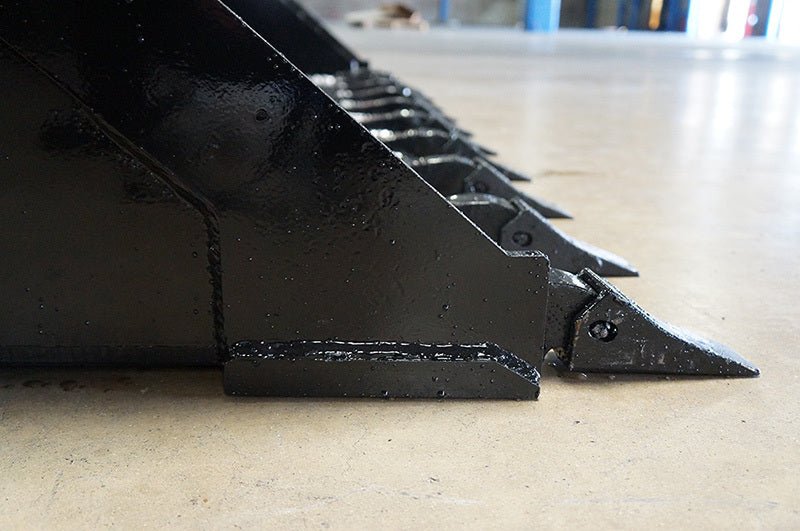

Blue Diamond Low Profile – Severe Duty Bucket

$2,40200
Shipping calculated at checkout.
Size
Options

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market.

It is available in 60", 72", 78", 84", or 90" widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2" bottom, double-layer 1/4" back, and a 1" x 8" cutting blade. Rental Recommended.

Features

  • 1/2″ floor
  • Double layer 1/4″ back
  • Heavily gusseted quick attach
  • Tooth buckets use a 1″ x 8″ cutting edge
  • Available in low profile, long bottom, and high capacity
  • Low profile: 19" tall, 29" deep
  • Long bottom: 19" tall, 35" deep

Specifications

PART NUMBER MODEL STRUCK CAPACITY WEIGHT
108260 66\" Low Profile, Severe Duty, Smooth 11.4 cu ft 650 lbs.
108263 66\" Low Profile, Severe Duty, Tooth 11.4 cu ft 675 lbs.
108270 72\" Low Profile, Severe Duty, Smooth 11 cu ft 710 lbs.
108273 72\" Low Profile, Severe Duty, Tooth 11 cu ft 724 lbs.
108275 78\" Low Profile, Severe Duty, Smooth 12 cu ft 690 lbs.
108277 78\" Low Profile, Severe Duty, Tooth 12 cu ft 757 lbs.
108280 84\" Low Profile, Severe Duty, Smooth 12.9 cu ft 738 lbs.
108282 84\" Low Profile, Severe Duty, Tooth 12.9 cu ft 813 lbs.
108283 90\" Low Profile, Severe Duty, Tooth 18.8 cu ft 925 lbs.
108284 72\" Low Profile, Severe Duty, Smooth-Long Bottom 23 cu ft 732 lbs.
108285 72\" Low Profile, Severe Duty, Tooth-Long Bottom 23 cu ft 774 lbs.
108286 78\" Low Profile, Severe Duty, Smooth-Long Bottom 25 cu ft 759 lbs.
108287 78\" Low Profile, Severe Duty, Tooth-Long Bottom 25 cu ft 826 lbs.
108290 84\" Low Profile, Severe Duty, Smooth-Long Bottom 27 cu ft 848 lbs.
108293 84\" Low Profile, Severe Duty, Tooth-Long Bottom 27 cu ft 965 lbs.
108296 90\" Low Profile, Severe Duty, Tooth-Long Bottom 18.8 cu ft 875 lbs.
