Shop Blue Diamond Attachments  |  SKU: 314150

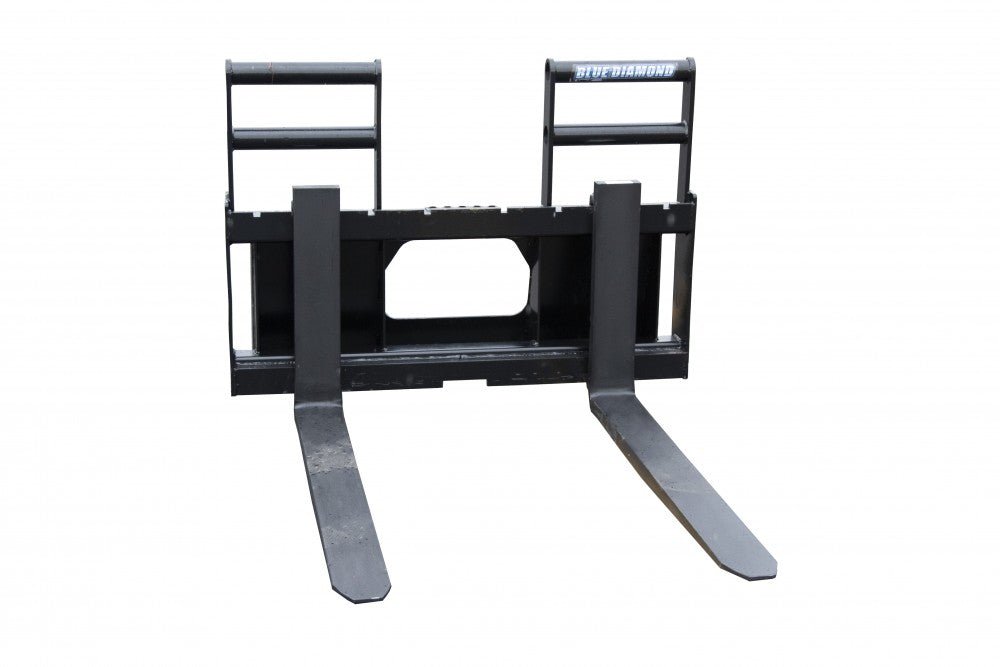

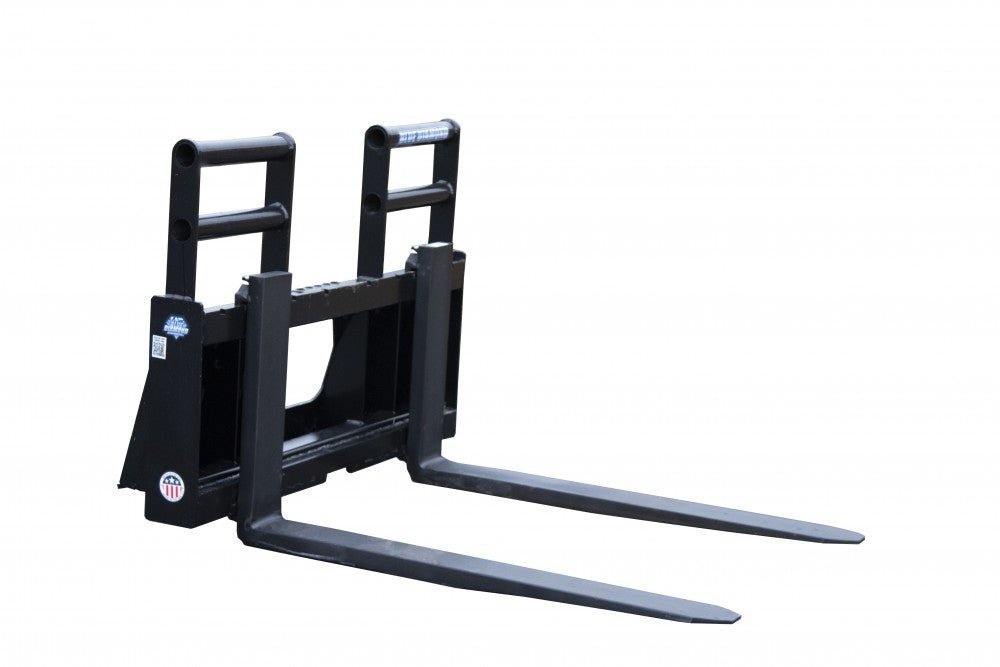

Blue Diamond Pallet Forks – Class 3 10,000 Lbs. Capacity

$2,98500
Shipping calculated at checkout.
Tine Size

Lift up to 10,000 lbs with Blue Diamond Class 3 Heavy Duty Pallet Forks designed for large frame track loaders and wheel loaders.

Blue Diamond Heavy Duty Pallet Forks are available to fit large frame track loaders and wheel loaders that have the skid steer quick attach. With a 10,000 lb capacity, these Class 3 pallet forks deliver the strength needed for heavy-duty material handling applications. The cutout in the backrest offers easy cab entry for skid steers and is also designed to clear center linkage on wheel loaders, making this attachment versatile across multiple machine types. The 50-inch wide frame can accommodate a number of fork lengths from 48 inches to 96 inches, with fork dimensions of 2 inches by 5 inches for maximum strength and durability.

Features

  • 10,000 lbs lift capacity
  • Class 3 frame for heavy-duty applications
  • 50" wide frame
  • Fork dimensions: 2" x 5"

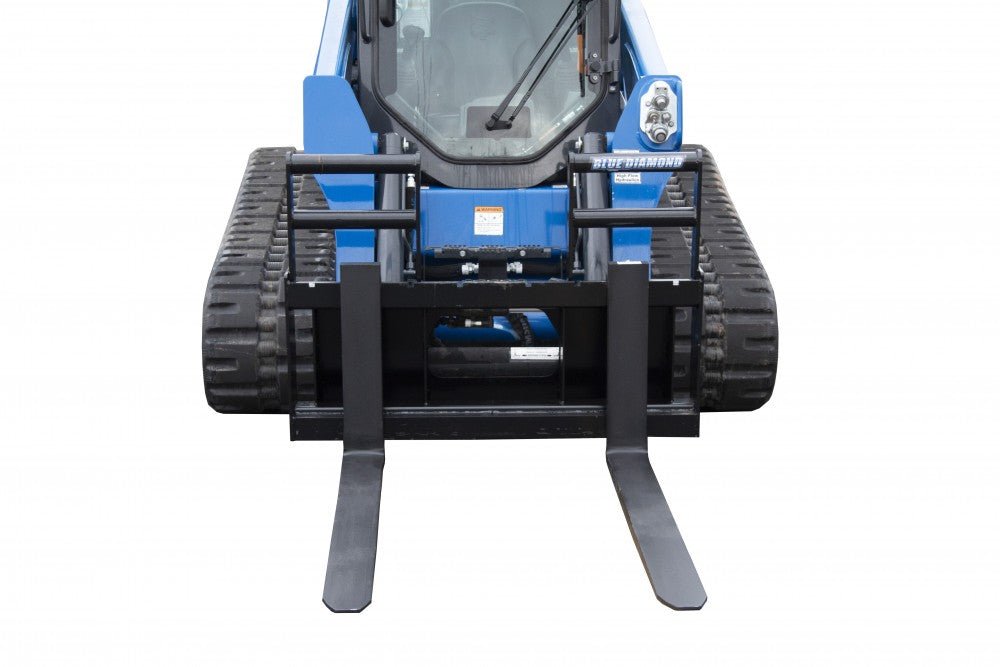

  • Cutout backrest for easy cab entry
  • Designed to clear center linkage on wheel loaders
  • Fits large frame track loaders and wheel loaders
  • Compatible with skid steer quick attach
  • Available tine lengths: 48", 60", 72", 84", and 96"
  • Available tine thicknesses: 1 3/4" and 2"
  • Versatile backrest design fits multiple applications

Specifications

Part Number Model Tine Size Lift Capacity Weight
314150 Frame 48" x 1 3/4" 10,000 lbs 595 lbs
314152 Frame 60" x 1 3/4" 10,000 lbs 732 lbs
314155 Frame 60" x 2" 10,000 lbs 758 lbs
314160 Frame 72" x 2" 10,000 lbs 828 lbs
314165 Frame 84" x 2" 10,000 lbs 848 lbs
314167 Frame 96" x 2" 10,000 lbs 875 lbs
Frame Specifications
Frame Width 50"
Fork Dimensions 2" x 5"
Class Rating Class 3
