Shop Blue Diamond Attachments  |  SKU: 114175

Blue Diamond Pallet Forks - Block & Brick - Heavy and Standard duty

$48000
Shipping calculated at checkout.
Size

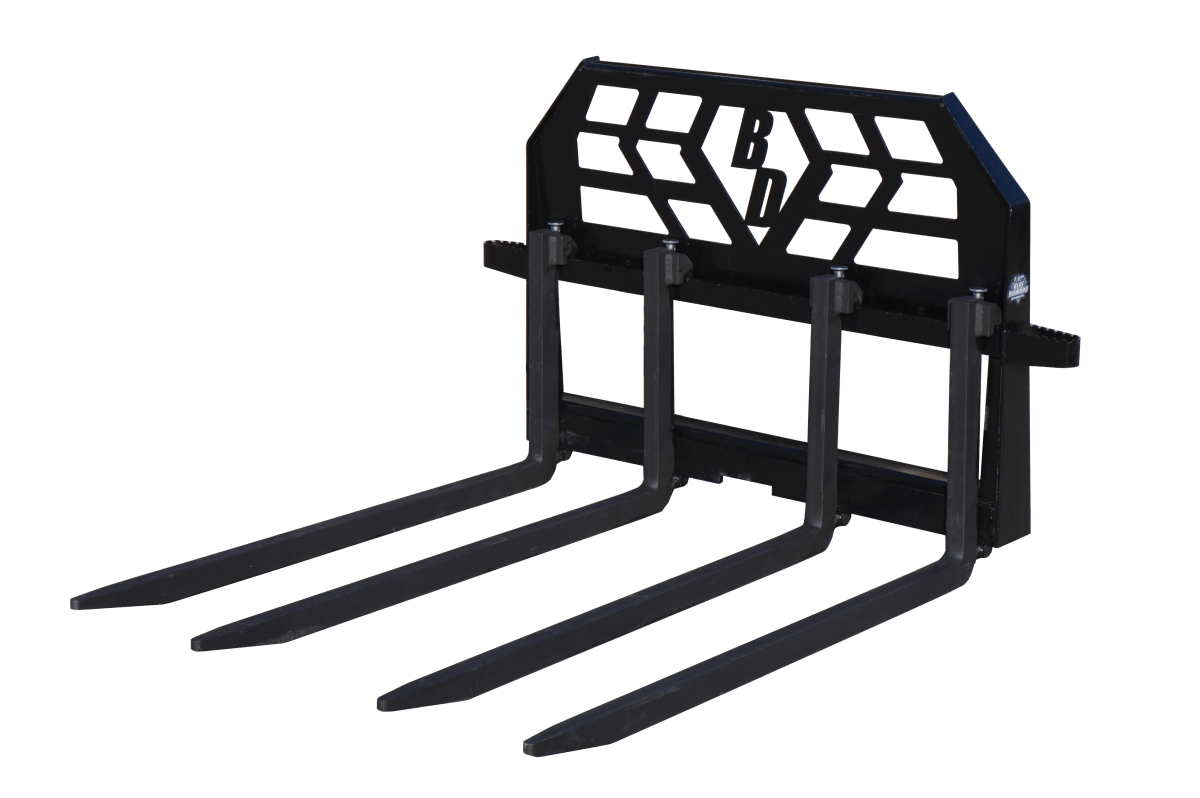

Blue Diamond Block & Brick Pallet Forks for masonry handling

The Blue Diamond® Heavy and Standard Duty Block & Brick Pallet Forks are built to fit a wide range of equipment, including skid steers, tractors, and telehandlers with skid steer quick attach. Designed for construction and landscaping crews, these pallet forks make moving large quantities of block, brick, and masonry materials faster and more efficient.

Available in both 42″ and 48″ tine lengths, these forks are built for strength and reliability. Standard and heavy-duty options ensure you can choose the right fit for your lifting capacity needs. Models with steps and D-rings offer additional convenience and safety features for operators.

  • Fits skid steers, tractors, and telehandlers with skid steer quick attach
  • Available in 42″ and 48″ tine lengths
  • Standard and heavy-duty options available
  • Designed for block, brick, and masonry handling
  • Models with operator steps and D-rings for added safety

Specifications – Assemblies (314 Series)

Part Number 314500 314505 314515 314520 314510
Model Pallet Fork, STD, W/Steps Pallet Fork, STD, W/Steps Pallet Fork, STD, W/Steps Pallet Fork, HD, W/Steps/D-Ring Pallet Fork, STD, W/Steps
Tine Size 48” x 2” x 1 1/2” 48” x 2” x 2” 48” x 2” x 1 1/2” 48” x 2” x 2” 48” x 2” x 2”
Lift Capacity 3,200 lbs 4,000 lbs 3,200 lbs 4,800 lbs 4,800 lbs
Weight 313 lbs 445 lbs 363 lbs 410 lbs 471 lbs

Specifications – Tines Only (114 Series)

Part Number 114175 114178 114185 114180
Model 42" Block/Brick Tines STD Class 2 48" Block/Brick Tines STD Class 2 42" Block/Brick Tines STD Class 2 48" Block/Brick Tines STD Class 2
Tine Size 42" x 2" x 1 1/2" 48" x 2" x 1 1/2" 42" x 2" x 2" 48" x 2" x 2"
Lift Capacity 3,200 lbs 3,200 lbs 4,800 lbs 4,800 lbs
Weight 64 lbs 69 lbs 77 lbs 84 lbs

Note: 114 Series part numbers are tines only. 314 Series are complete assemblies with 4 tines included.
