Shop Blue Diamond Attachments  |  SKU: 114045

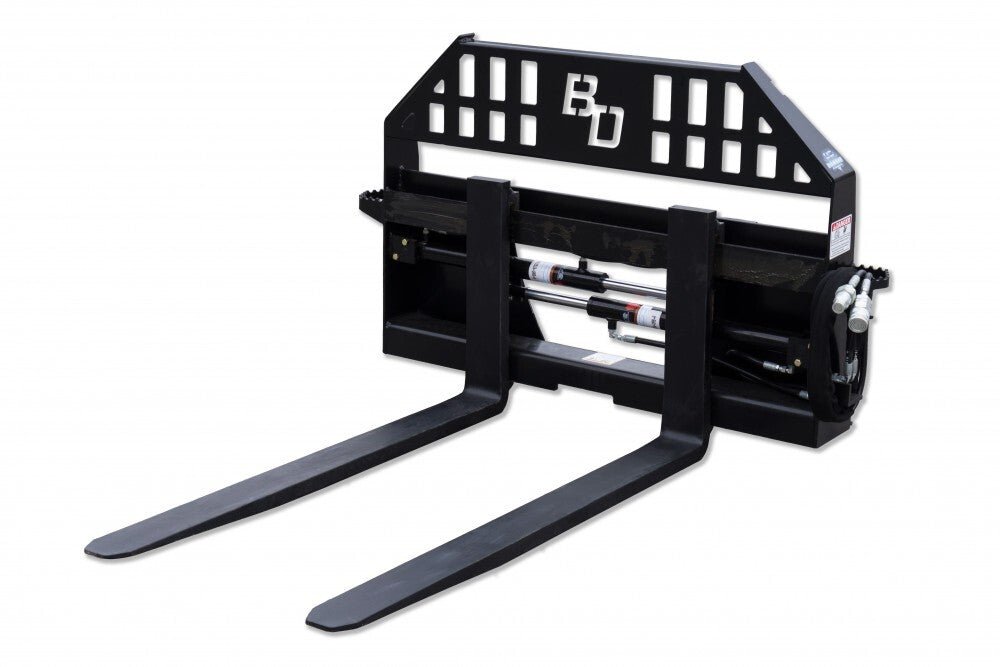

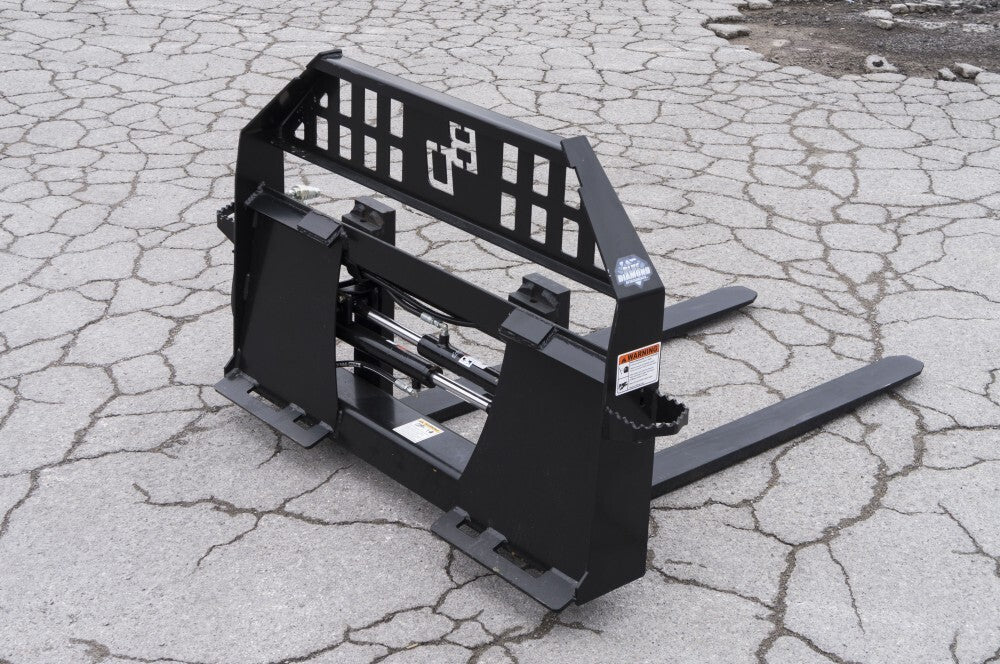

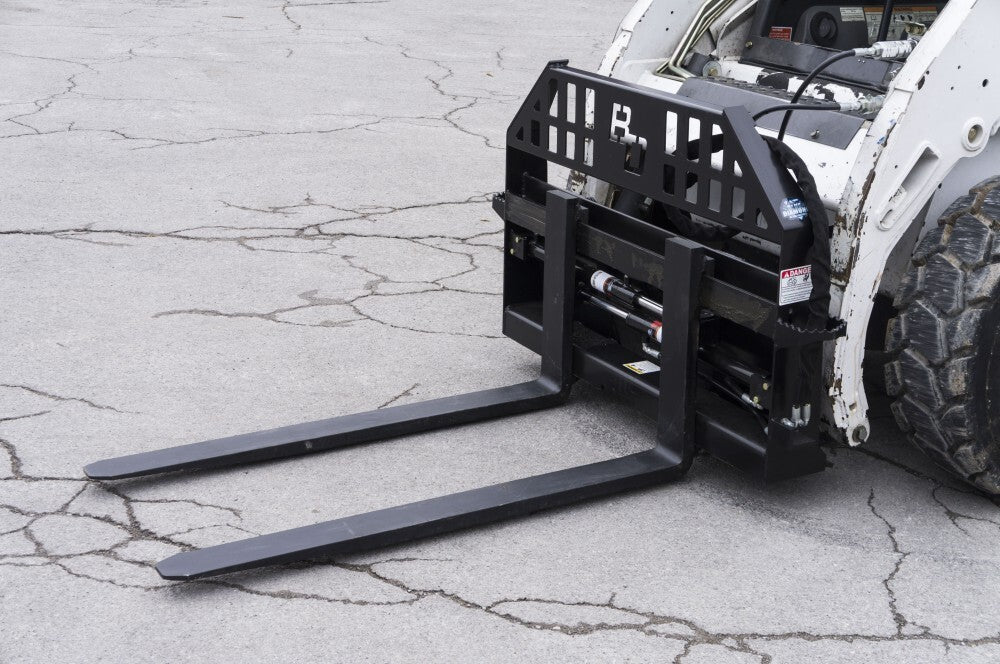

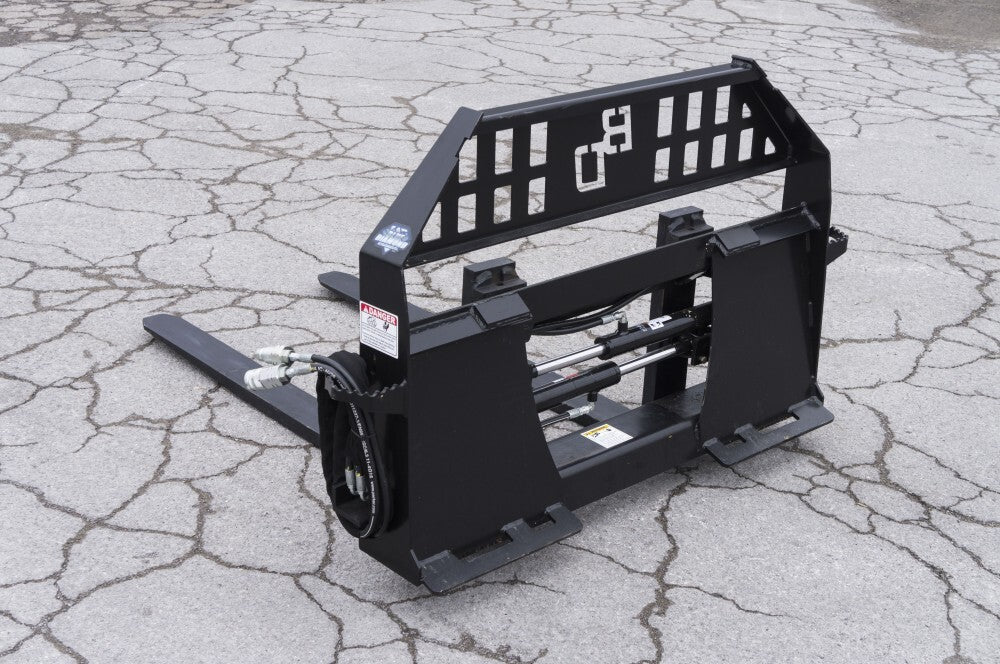

Blue Diamond Blue Diamond Hydraulic-Adjusting Pallet Forks

$3,24000
Shipping calculated at checkout.
Tine Size/Capacity

The Blue Diamond® Hydraulic-Adjusting Pallet Forks are a must-have attachment for any skid steer owner that moves or loads pallets, lumber, or nearly anything else.

Save time by not having to jump out every time you need to adjust the tine width, increasing your productivity.

Features

  • Adjusts hydraulically from 8″ to 40″ on center.
  • Offers great load visibility
  • 4000 lb. capacity
  • Includes hoses and couplers
  • 48″ tines

Specifications

PART NUMBER MODEL TINE SIZE LIFT CAPACITY WEIGHT
114045 Pallet Fork, Hydraulic 48" 4,000 LBS 419 lbs.
114047 Pallet Fork, Hydraulic 60" 4,000 LBS 460 lbs.
114050 Pallet Fork, Hydraulic 48" 6,000 LBS 624 lbs.
114055 Pallet Fork, Hydraulic 60" 6,000 LBS 672 lbs.
114057 Pallet Fork, Hydraulic 72" 6,000 LBS 700 lbs.
