Digga Soil Conditioner

$12,29000
Shipping calculated at checkout.
Made in USA
Size
Options

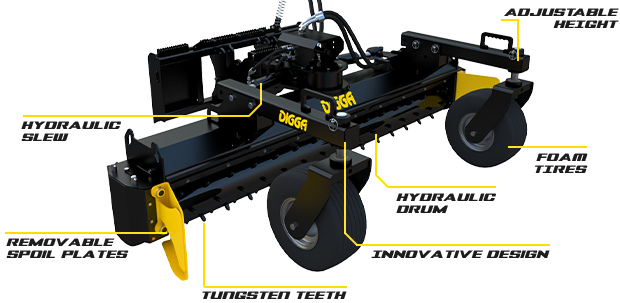

Grade, level, rake, and remove debris while pulverizing and preparing ground for seedbed, turf, or lawn removal with the Digga Soil Conditioner.

The Digga Soil Conditioner for skid steer and small wheel loaders grades, levels, rakes, and removes debris, pulverizing and preparing the ground for new seedbed, turf, or to remove old lawn and weeds - all with one tool. Ideal for leveling, grading, seedbed preparation, site preparation, lawn care, golf courses, wineries, paving, and contractors, this American-made attachment features an ingenious center pivot design that ensures the drum is always centered to the machine. With minimal maintenance (only 5 grease points), direct drive system, and welded-on tungsten carbide teeth for durability, the Soil Conditioner delivers exceptional performance and long life.

Features

  • Grades, levels, rakes, and removes debris in one pass
  • Center pivot design keeps drum centered to machine
  • Minimal maintenance with only 5 grease points
  • Direct drive system for reliability
  • Capable of running on standard flow and high flow
  • Welded-on tungsten carbide teeth for extra long drum life
  • Floating pivot for better finish on undulating ground
  • Multiple electrical harness options (Cat/ASV 8 Pin, 14 Pin, Bobcat 7 Pin & Plug "N" Play controller)
  • Available in 72" and 90" drum widths
  • Manual slew, hydraulic slew, and hydraulic slew pro options
  • Eaton 6000 Series motor
  • 25° slew angle
  • Made in the USA with highest grade materials
  • 12-month warranty

Specifications

72" Model
Specification Manual Slew Hydraulic Slew Hydraulic Slew Pro
Recommended Flow 17-30 GPM 17-24 GPM 17-30 GPM
Motor Type Eaton 6000 Series
Max Pressure 3,500 PSI @ 33 GPM 3,500 PSI @ 24 GPM 3,500 PSI @ 33 GPM
Max Flow (Do Not Exceed) 40 GPM @ 2,900 PSI 24 GPM @ 3,500 PSI 40 GPM @ 2,900 PSI
Slew Angle 25°
Max Horsepower 67 HP
Drum Width 72"
Overall Width 84"
Length (Wheels Down) 69.5"
Length (No Wheels) 49"
90" Model
Specification Manual Slew Hydraulic Slew Hydraulic Slew Pro
Recommended Flow 17-30 GPM 17-24 GPM 17-30 GPM
Motor Type Eaton 6000 Series
Max Pressure 3,500 PSI @ 33 GPM 3,500 PSI @ 24 GPM 3,500 PSI @ 33 GPM
Max Flow (Do Not Exceed) 40 GPM @ 2,900 PSI 24 GPM @ 3,500 PSI 40 GPM @ 2,900 PSI
Slew Angle 25°
Max Horsepower 67 HP
Drum Width 90"
Overall Width 102"
Length (Wheels Down) 69.5"
Length (No Wheels) 49"
Weight 1,270 lbs 1,350 lbs 1,350 lbs
