Shop Blue Diamond Attachments  |  SKU: 160810

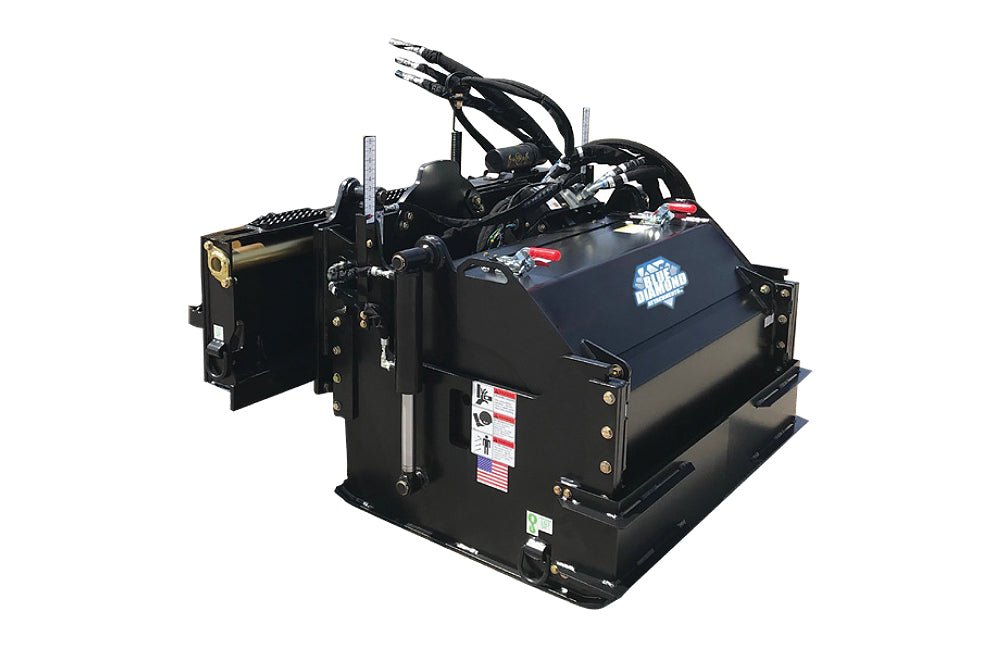

Blue Diamond Cold Planer Severe Duty High-Flow

$37,27000
Shipping calculated at checkout.
Options

The Blue Diamond® Severe Duty High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub.

These high-end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment. Rental Recommended.

Features

  • Hydraulic adjustment controls
  • Hydraulic side shift
  • High-torque, planetary drive
  • High drum weight = less vibration
  • 1 1/2″ thick drum tube
  • Easy access tooth replacement
  • Water kit available
  • Fine-cut drum available
  • Hard facing & stand-off blocks
  • Up to 8″ cutting depth

Applications

  • Removing asphalt surfaces prior to overlay
  • Widening shoulders
  • Repairing potholes
  • Restoring drainage lines
  • Mixing stabilizing agents into base for a more durable repair

Specifications

PART NUMBER MODEL # OF TEETH MIN-MAX FLOW MIN-MAX PRESSURE WEIGHT
160810 18" Severe Duty 46 24-45 GPM 2000-3500 PSI 1,990 lbs.
160810-HP 18" Severe Duty 46 30-45 GPM 3000-5000 PSI 2,050 lbs.
160815 24" Severe Duty 56 27-45 GPM 2000-3500 PSI 2,300 lbs.
160815-HP 24" Severe Duty 56 30-45 GPM 3000-5000 PSI 2,300 lbs.
160820 30" Severe Duty 66 30-45 GPM 2000-3500 PSI 2,770 lbs.
160820-HP 30" Severe Duty 66 30-45 GPM 3000-5000 PSI 2,550 lbs.
160825 40" Severe Duty 76 30-45 GPM 3000-5000 PSI 2,975 lbs.
160825-HP 40" Severe Duty 76 30-45 GPM 3000-5000 PSI 3,000 lbs.
160830-HP 40" Severe Duty 106 30-45 GPM 3250-5000 PSI 3,200 lbs.
