Shop Blue Diamond Attachments  |  SKU: 100502

Blue Diamond Vibratory Post Driver Series 2

$8,93200
Shipping calculated at checkout.
Options

Do not let the size of the Blue Diamond® Vibratory Series 2 Post Driver fool you!

This unit packs more of a punch than most hammer-style drivers on the market. By using hydraulic orbital technology, this vibratory post driver uses your machine's auxiliary flow in the most efficient way.

Features

  • Easy to transport and store
  • Available with 4″, 6″, 9″, 10", or 12″ adapter
  • Requires 7-26 GPM auxiliary flow
  • Weighs 540 lbs.
  • Optional tilt function
  • Interchangeable mount

Specifications

PART NUMBER MODEL WEIGHT

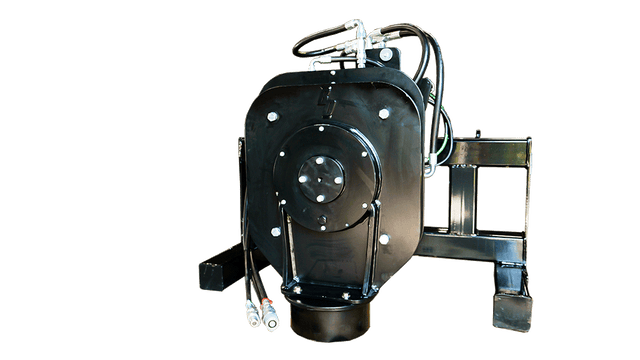

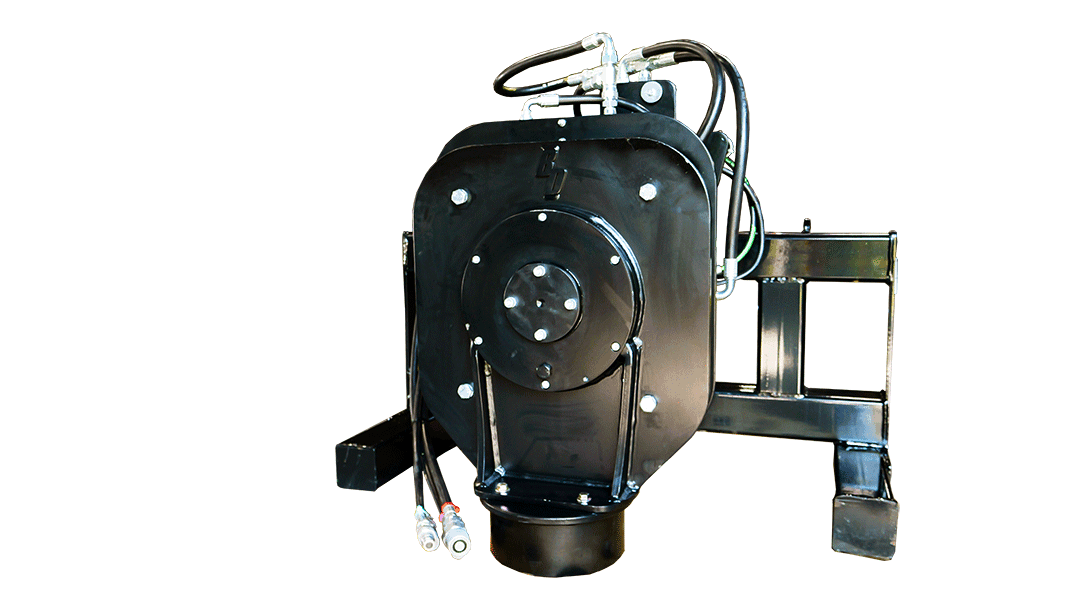

100502 Post Driver, Vibratory (Requires Mount) 264 lbs
100507 Post Driver, Vibratory, W/Tilt (Requires Mount) 400 lbs

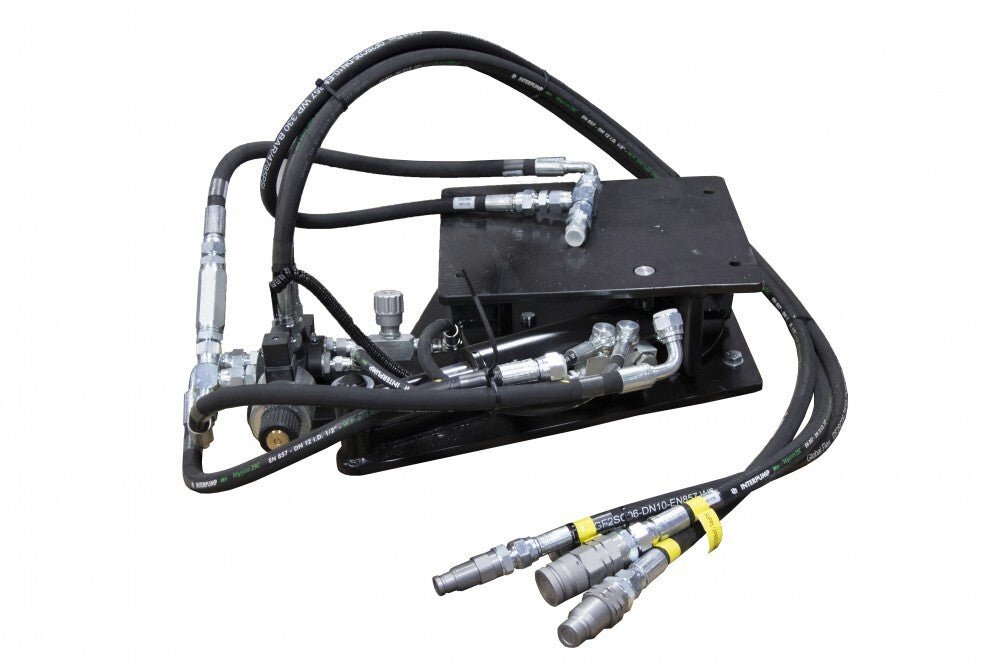

100510 Vibratory Tilt Option 123 lbs

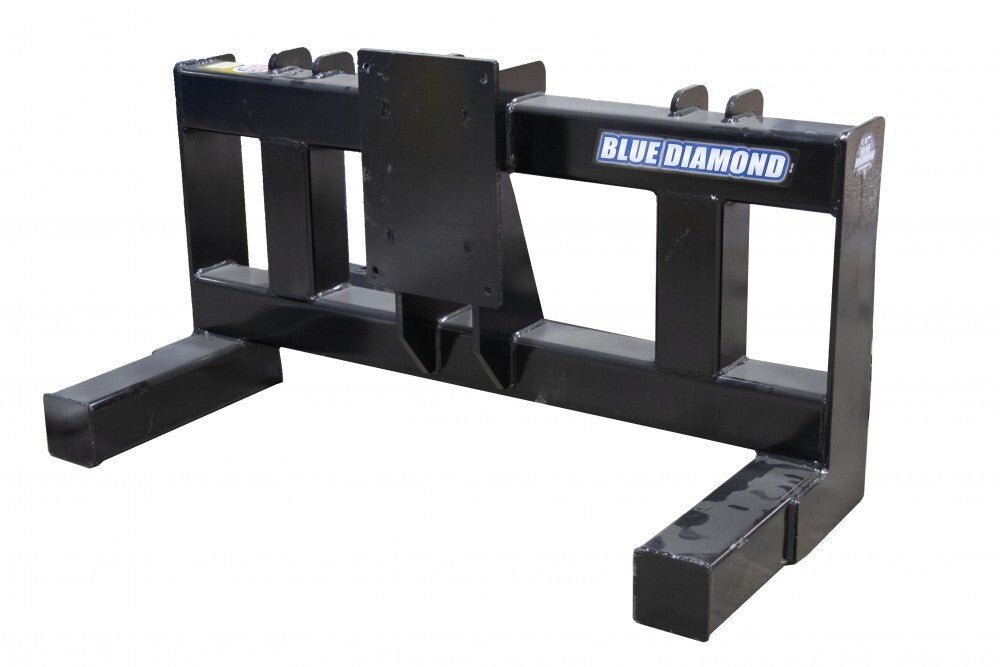

100555 Skid Steer Mount 125 lbs
100516 4" Round Post Adapter 15 lbs
100521 6" Round Post Adapter 17 lbs
100526 9" Round Post Adapter 19 lbs
100528 10" Round Post Adapter 37 lbs
100531 12" Round Post Adapter 50 lbs
100552 12" Square Flat Post Adapter 41 lbs
100553 12" Round Flat Post Adapter 35 lbs
