Shop Digga  |  SKU: 5DDS-11

Digga Augers For Excavators & Backhoes 4.5-12T, Truck Cranes & Telehandlers

$4,77000
Shipping calculated at checkout.
Drive Options
Max Torque
Package Type

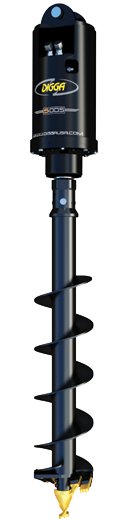

Digga's range of drilling augers for 4.5-12T excavators & backhoes, and truck cranes & telehandlers are the ultimate in performance, quality and cost effectiveness.

Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control. Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.

Available in Single Speed, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

Single Speed Auger Drive Features:
  • Compact high torque Digga manufactured gearbox
  • Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
  • 2 piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Single speed & two speed models available
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Over 30 years design and manufacturing experience
  • Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
Single Speed Specs 5DDS 6DDS 7DDS 9DDS 12DDS
Torque (FT-LBS @ 3000 PSI) 3,903 4,909 6,162 7,811 9,893
Max Torque (FT-LBS @ 3500 PSI) 4,553 5,728 7,189 9,112 11,542
Recommended Flow (GPM) 10-36 12-36 14-36 18-48 22-48
Motor Type Eaton Eaton Eaton Eaton Eaton
Max Pressure (Do Not Exceed) 3500 PSI @ 27 GPM 3500 PSI @ 29 GPM
Max Flow (Do Not Exceed) 55 GPM @ 1700 PSI 55 GPM @ 1800 PSI
Max Horse Power 55 55 55 60 60
Pressure Relief Valve Included Included Included Included Included
Standard Output Shaft 2.5" Hex 2.5" Hex 2.5" Hex 2.5" Hex 2.5" Hex
Halo Optional Optional Optional Optional Optional

Recommended Auger A6 / RC6 A6 / RC6 A6 / RC6 A8 / RC8 A8 / RC8
Max Drilling Diameter (Clay / Shale)¹ 24" 30" 30" 48" 36"
Max Drilling Diameter (Earth)¹ 40" 40" 48" 48" 48"
Weight (lbs.) 290 290 290 350 350
Overall Length (in.) 33.7" 33.7" 33.7" 37.2" 37.2"
Diameter (in.) 11.4" 11.4" 11.4" 11.4" 11.4"


Single Speed Output
5DDS 6DDS 7DDS 9DDS 12DDS
OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE
GPM RPM PSI FT-LBS GPM RPM PSI FT-LBS GPM RPM PSI FT-LBS GPM RPM PSI FT-LBS GPM RPM PSI FT-LBS
10 24 1,500 1,951 12 22 1,500 2,455 14 21 1,500 3,081 18 21 1,500 3,905 22 20 1,500 4,947
14 33 1,700 2,212 16 30 1,700 2,782 18 27 1,700 3,492 22 26 1,700 4,426 26 24 1,700 5,606
18 42 1,900 2,472 20 37 1,900 3,109 22 33 1,900 3,903 26 31 1,900 4,947 30 28 1,900 6,266
22 52 2,100 2,732 24 45 2,100 3,437 26 39 2,100 4,314 30 35 2,100 5,467 34 32 2,100 6,925
26 61 2,300 2,992 28 52 2,300 3,764 30 45 2,300 4,725 34 40 2,300 5,988 38 35 2,300 7,585
30 71 2,500 3,252 32 60 2,500 4,091 34 51 2,500 5,135 38 45 2,500 6,509 42 39 2,500 8,244
34 80 2,700 3,513 36 67 2,700 4,418 36 54 2,700 5,546 42 49 2,700 7,029 46 43 2,700 8,904
36 85 2,900 3,773   2,900 4,746   2,900 5,957 46 54 2,900 7,550 48 45 2,900 9,564
  3,200 4,033   3,200 5,073   3,200 6,368 48 57 3,200 8,071   3,200 10,223
  3,300 4,293   3,300 5,400   3,300 6,779   3,300 8,592   3,300 10,883
  3,500 4,553   3,500 5,728   3,500 7,189   3,500 9,112   3,500 11,542

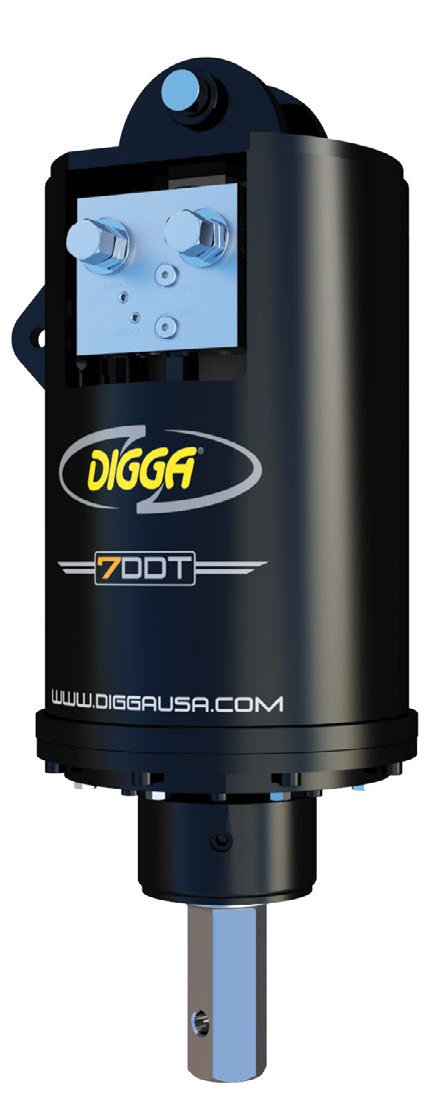

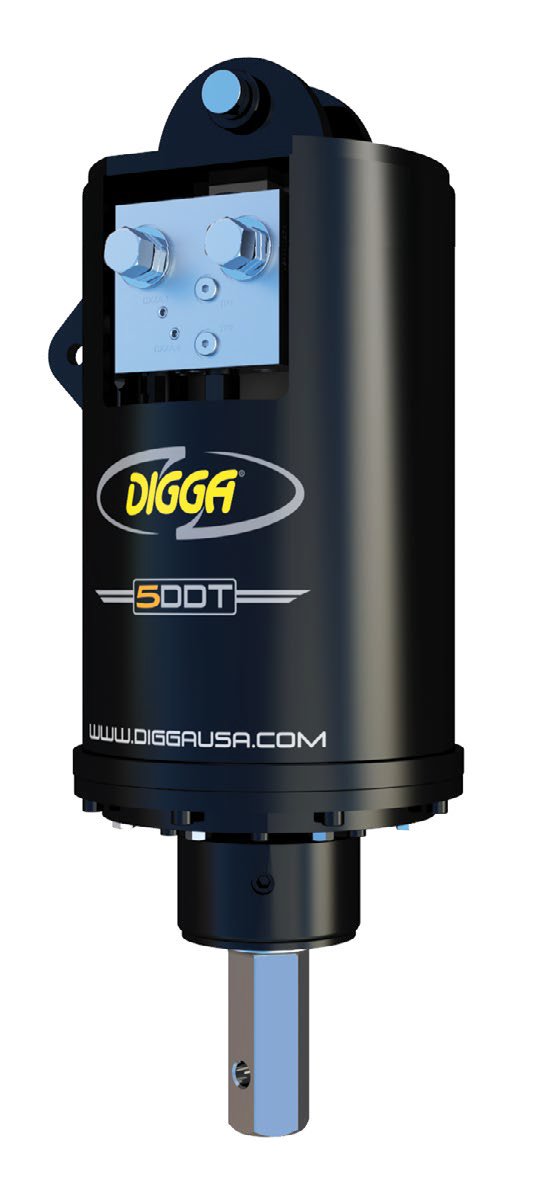

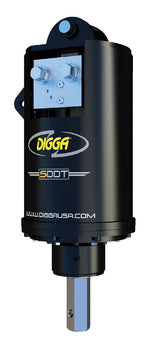

Digga's 2-Speed Drilling Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 10 - 48gpm. We distribute our 2-Speed Drilling Augers throughout North America.

2-Speed Auger Drive Features:
  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton VIS motor
  • Integrated PRV (Pressure Relief Valve)
  • Extreme duty shaft locking system
  • Drive fits down the hole for greater digging depth
  • 5 year gearbox and 3 year motor warranty
  • Low maintenance

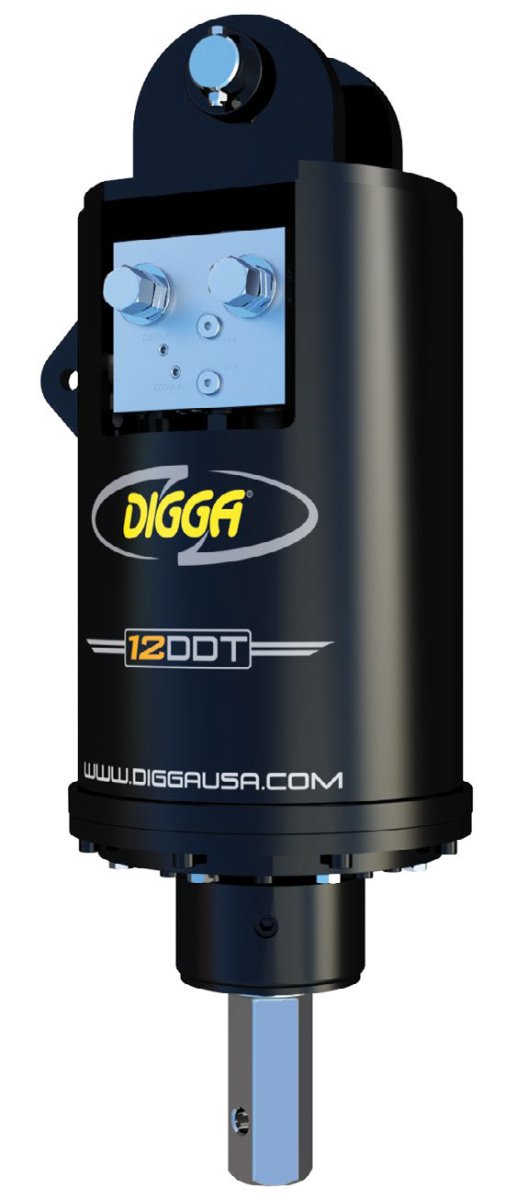

2-Speed Specs 5DDT 6DDT 7DDT 12DDT
Torque (FT-LBS @ 3000 PSI) 4,067 5,012 6,306 10,310
Max Torque (FT-LBS @ 3500 PSI) 4,745 5,847 7,357 12,028
Recommended Flow (GPM) 10-36 10-36 10-36 10-46
Motor Type Eaton Eaton Eaton Eaton
Max Pressure (Do Not Exceed) 3500 PSI @ 27 GPM 3500 PSI @ 29 GPM
Max Flow (Do Not Exceed) 53 GPM @ 1800 PSI 53 GPM @ 1950 PSI
Max Horse Power 55 55 55 60
Pressure Relief Valve Included Included Included Included
Standard Output Shaft 2.5" Hex 2.5" Hex 2.5" Hex 2.5" Hex

Recommended Auger A6 / RC6 A6 / RC6 A6 / RC6 A8 / RC8
Max Drilling Diameter (Clay / Shale)¹ 24" 30" 30" 36"
Max Drilling Diameter (Earth)¹ 40" 40" 48" 48"
Weight (lbs.) 350 350 350 376
Overall Length (in.) 34.4" 34.4" 34.4" 35.7"
Diameter (in.) 14.4" 14.4" 14.4" 14.4"
(¹) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.

2-Speed Output
5DDT 6DDT 7DDT 12DDT
OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE OUTPUT SPEED OUTPUT TORQUE
GPM HI TORQUE LOW SPEED LO TORQUE HIGH SPEED PSI HI TORQUE LOW SPEED LO TORQUE HIGH SPEED GPM HI TORQUE LOW SPEED LO TORQUE HIGH SPEED PSI HI TORQUE LOW SPEED LO TORQUE HIGH SPEED GPM HI TORQUE LOW SPEED LO TORQUE HIGH SPEED PSI HI TORQUE LOW SPEED LO TORQUE HIGH SPEED GPM HI TORQUE LOW SPEED LO TORQUE HIGH SPEED PSI HI TORQUE LOW SPEED LO TORQUE HIGH SPEED
10 23 34 1,000 1,356 895 10 18 28 1,000 1,671 1,103 10 15 22 1,000 2,102 1,387 10 9 14 1,000 3,437 2,268
20 45 69 1,500 2,034 1,342 20 37 56 1,500 2,506 1,654 20 29 44 1,500 3,153 2,081 20 18 27 1,500 5,155 3,402
30 68 103 2,000 2,711 1,790 30 55 83 2,000 3,341 2,205 30 44 56 2,000 4,204 2,775 30 27 41 2,000 6,873 4,536
36 81 123 2,500 3,389 2,237 36 66 100 2,500 4,177 2,757 36 52 80 2,500 5,255 3,468 40 36 54 2,500 8,592 5,670
  3,000 4,067 2,684   3,000 5,012 3,308   3,000 6,306 4,162 46 41 62 3,000 10,310 6,805
  3,500 4,745 3,132   3,500 5,847 3,859   3,500 7,357 4,856   3,500 12,028 7,939
