Shop Blue Diamond Attachments  |  SKU: 159010

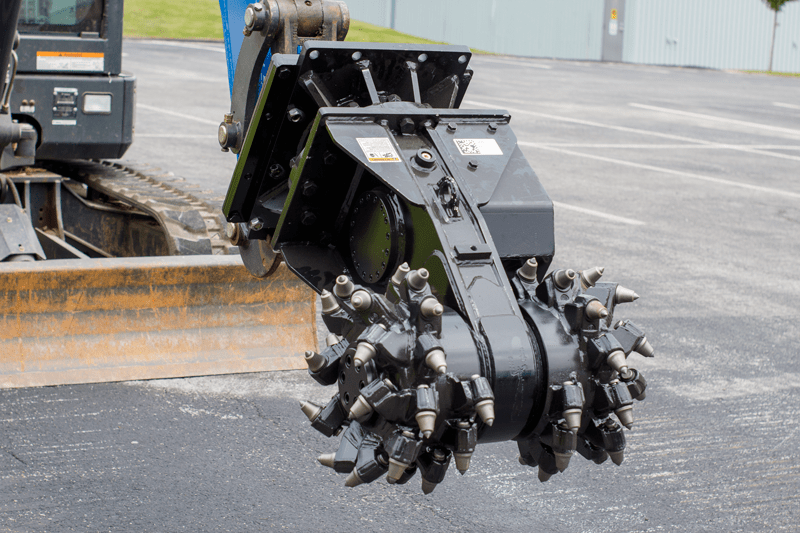

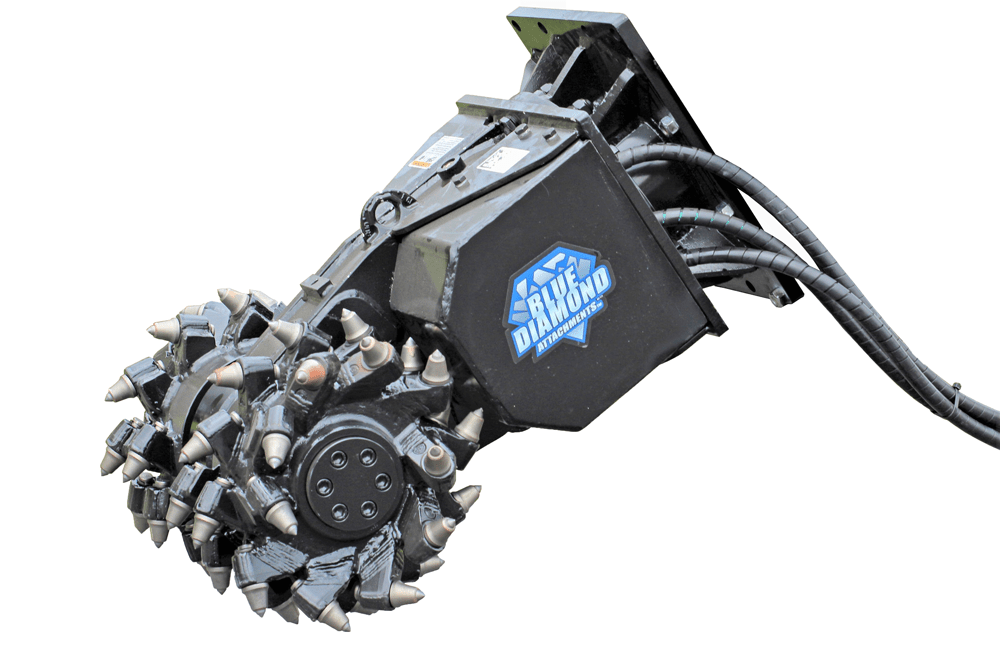

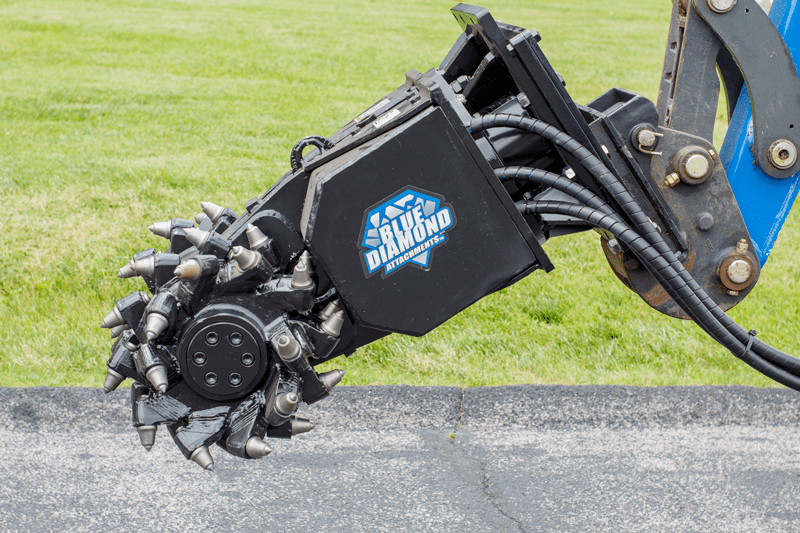

Blue Diamond Rock And Concrete Grinders

$24,69500
Shipping calculated at checkout.
Made in USA
Options

The Blue Diamond® Rock & Concrete Grinders are a must-have tool for any application where rock, concrete, and asphalt need to be removed.

They allow for a clean trench to be made with vertical walls. Four different models are available. Mounts are available to fit most excavators and skid steers.

Features

  • All American-made parts & components
  • Powerful high torque hydraulic motors
  • Robust cutting drums to ensure maximum production & prolonged life
  • Customizable drums to accommodate performance maximized applications
  • Durable spur gears & housing
  • Bolt-on mount for excavator or skid steer

Specifications

PART NUMBER MODEL WEIGHT (WITHOUT MOUNT) CUTTING WIDTH HEAD DIAMETER REQUIRED FLOW (GPM) CARRIER WEIGHT
159010 G1S 265 lbs. 19" 9" 5-12 1,300-5,000 lbs.
159015 G1 635 lbs. 21" 11" 8-20 6,900-17,000 lbs.
159020 G2 1,035 lbs. 25" 16.5" 12-26 17,000-30,000 lbs.
159025 G3 2,045 lbs 31" 22″ 30-45 22,000-39,000 lbs
159030 G3XL 2,290 lbs 32" 23" 34-65 33,000-66,000 lbs
159035 G4 4,100 lbs 40" 29" 50-85 50,000-90,000 lbs
