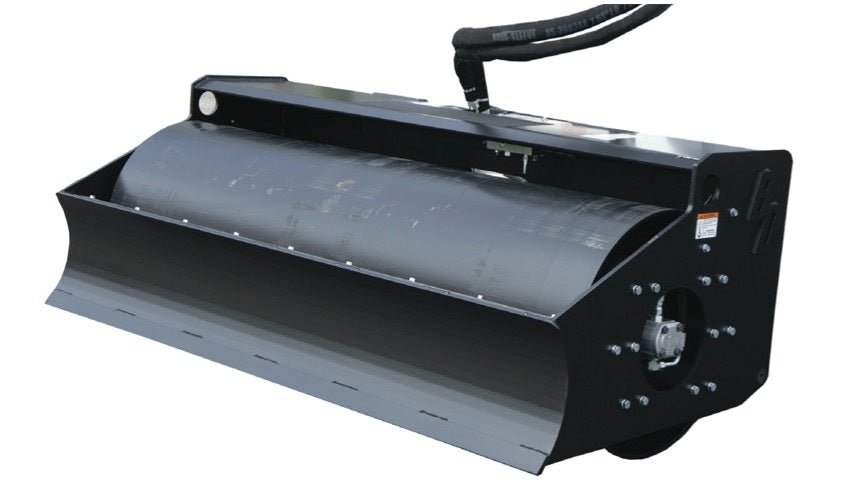

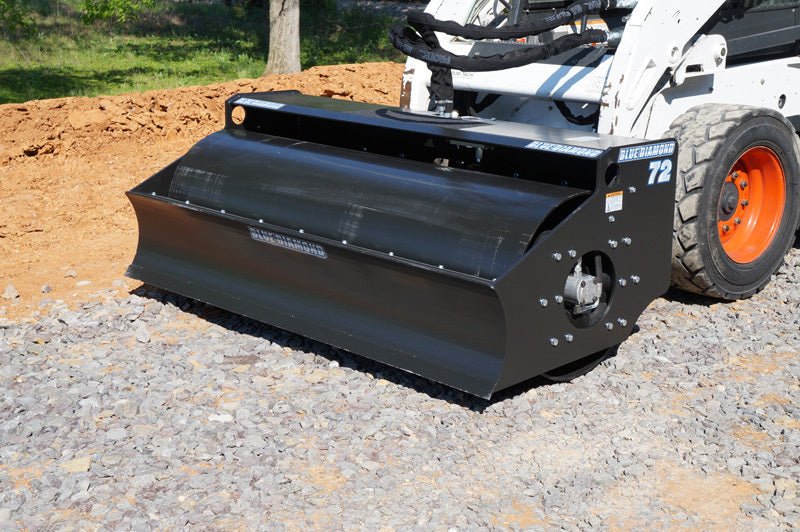

Blue Diamond Vibratory Roller For Skid Steer

The Blue Diamond® Vibratory Rollers are available in 73″ and 84″ working widths. All models feature hydraulically powered exciter systems designed with oil-mist lubrication.

All models minimize exciter shaft deflection, lower operating temperatures, and provide our customers with the industry's lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame, minimizing transmission of vibration to the host machine. All models come with a universal quick-attach system. Smooth or pad foot drum options are available.

Features

• Industry leading bearing design

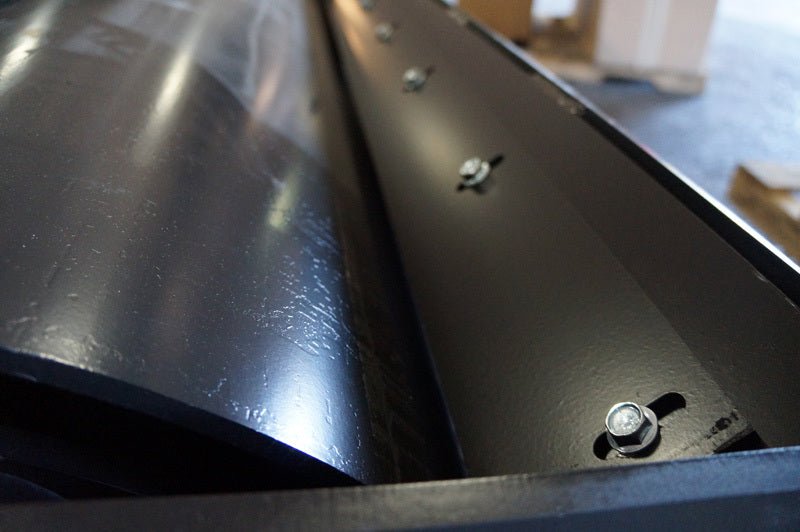

• Integral knockdown blade
• Smooth or pad foot models
• Exciter systems are oil mist lubricate
• Vibrating drums are effectively isolated from the roller frame
• 12 heavy duty rubber shock mounts
• Control valve block compensates for the correct flow of oil to prevent over speeding and over pressure of the exciter shaft
• Universal adapter plate

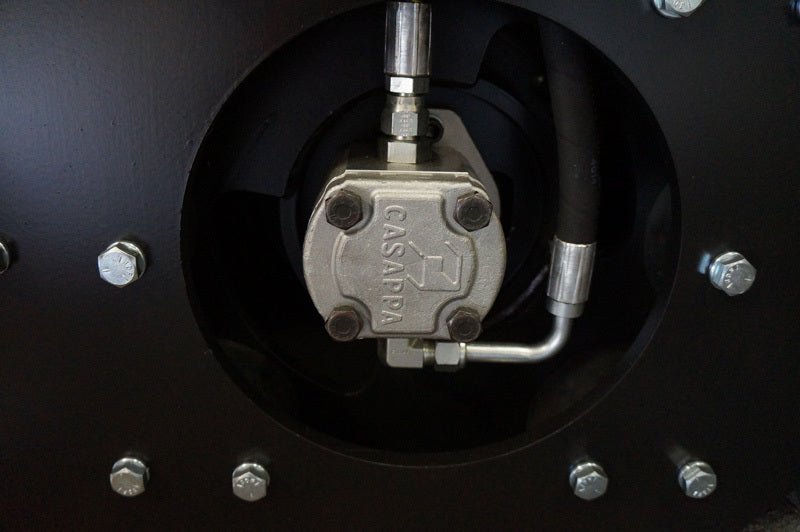

• Drive motor is inside a heavy-duty steel frame
