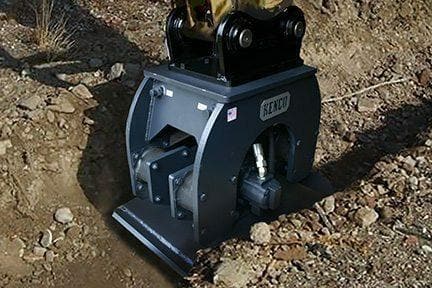

Kenco Plate Compactor

Call for Pricing

Shipping calculated at checkout.
Made in USA

Heavy-Duty Vibrating Plate Compactors for Excavators & Backhoes

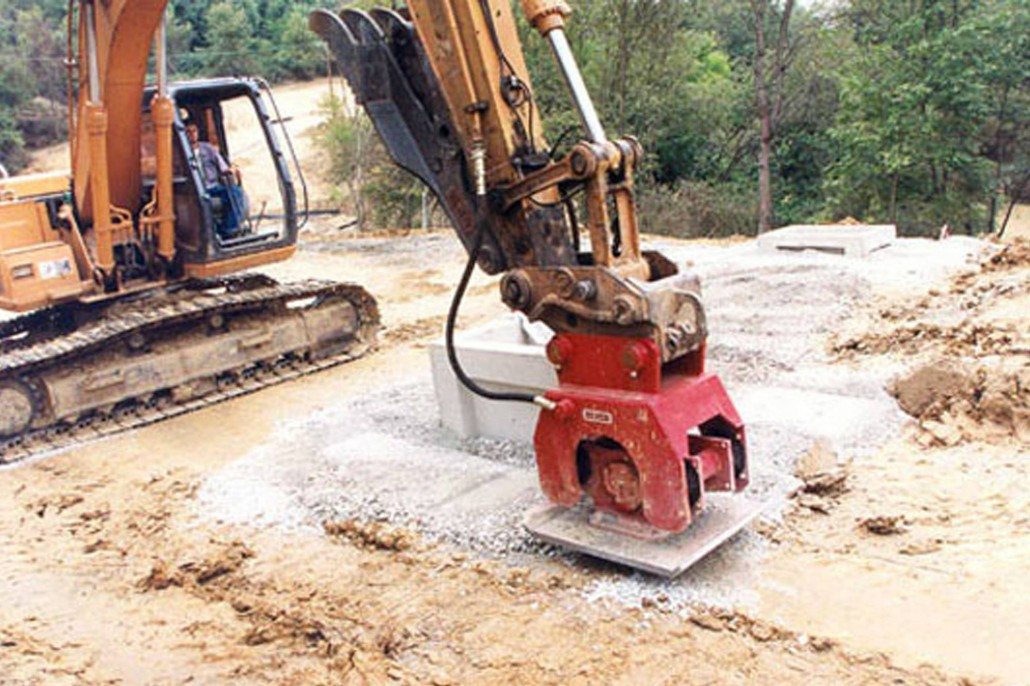

The Kenco Plate Compactor is the perfect tool for soil compaction in trenches, foundations, or slope applications. Built with a rugged design, it provides the strength needed to compact soil, drive sheeting, posts, or beams, and perform in demanding construction environments. Models are available to fit machines ranging from 3.5 to 45 tons, making this attachment versatile for contractors working with backhoes, mini-excavators, or large excavators.

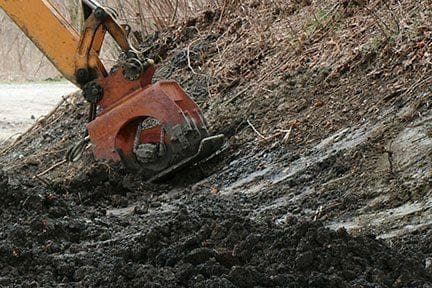

  • Ideal for trench compaction, foundations, and slope work
  • Heavy-duty design with high impulse force for demanding applications
  • Narrow base plate options for tight trench work (KC12 & KC15)
  • Available for backhoes, mini-excavators, and large excavators (3.5 – 45 tons)
  • Easy to install and built to withstand continuous use

Models & Fit: - KC-12 / KC-15 / KC-20 → Medium backhoes & mini-excavators - KC-30 → Large rubber tire backhoes & mid-size excavators - KC-40 / KC-50 → Large excavators

Specifications:

Model Impulse Force (lbs) Frequency (cpm) Flow (gpm) Weight (lbs) Machine Size (tons)
KC-12 3,500 2100 10 350 3.5–9
KC-15 5,000 2100 13–20 700 3.5–9
KC-20 6,500 2000 20 900 5–10
KC-30 13,500 2000 30 1600 10–22
KC-40 20,000 2000 42 2600 22–45
KC-50 22,000 2100 55 2600 22–45
