Shop Blue Diamond Attachments  |  SKU: 130009/130005

Blue Diamond Blue Diamond Backhoe Attachment

Regular price $3,87300
Shipping calculated at checkout.
Model

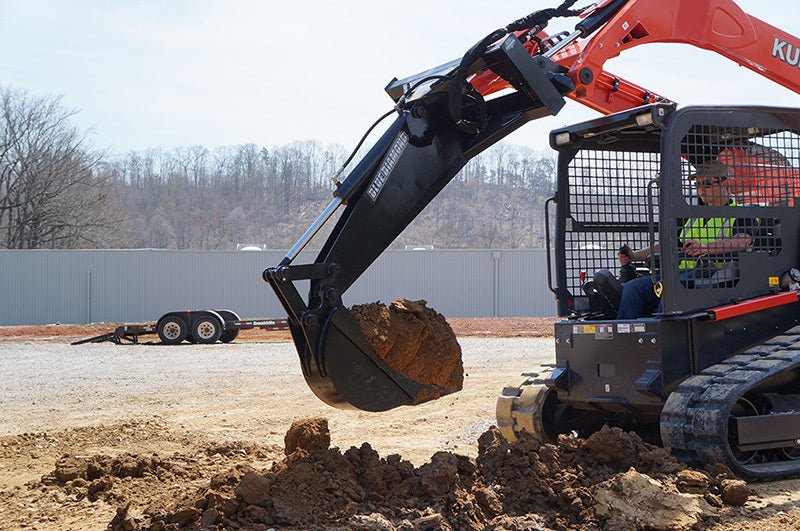

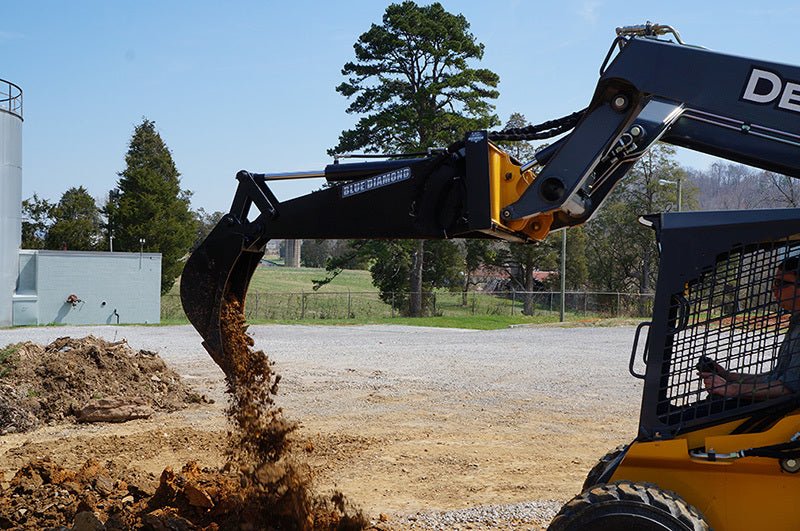

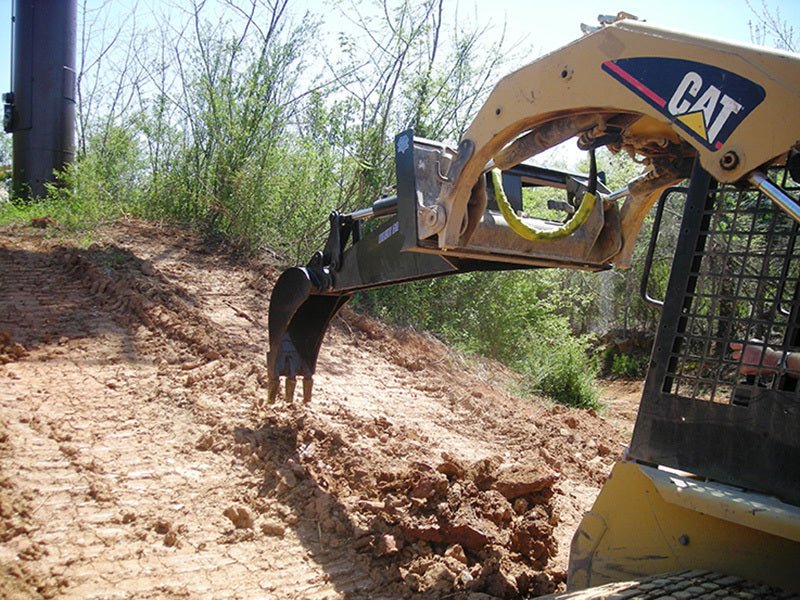

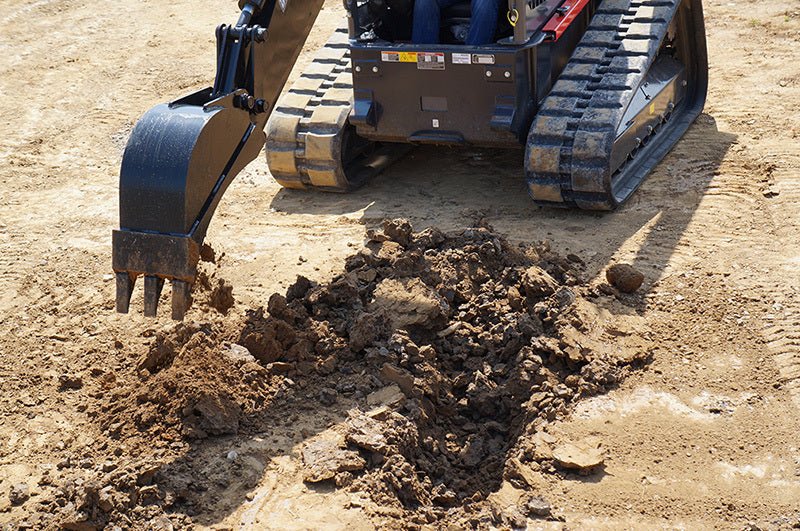

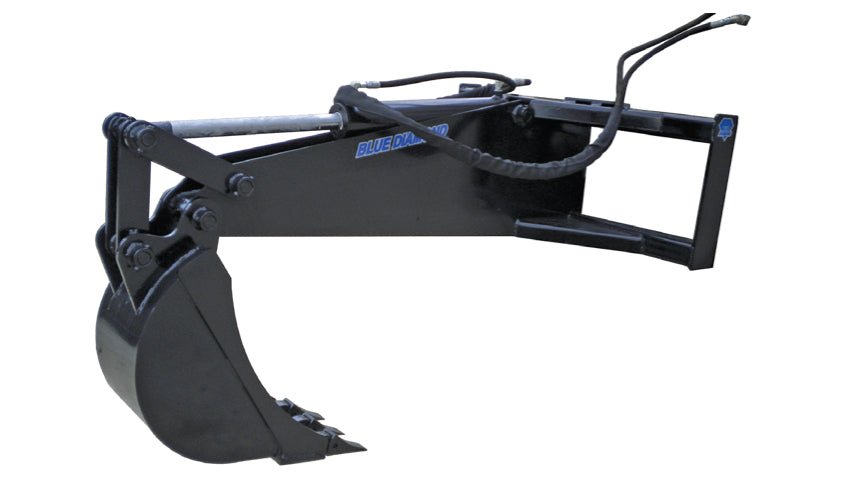

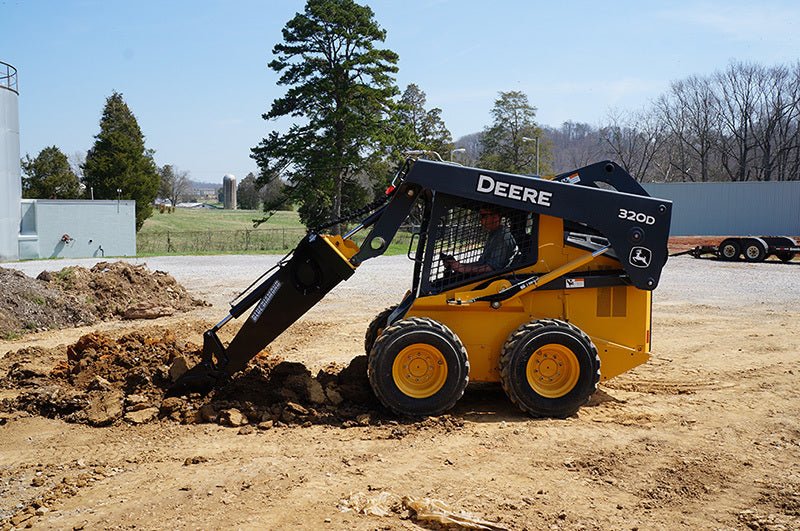

Dig trenches quickly and easily with your skid steer using the Blue Diamond Backhoe attachment.

The Blue Diamond Backhoe attachment transforms your skid steer into a powerful trenching machine. Featuring the biggest cylinder in the industry (3 1/2" bore, 20" stroke) and the largest bucket capacity, this attachment delivers exceptional bucket rotation and breakout force through its advanced linkage geometry. When fully extended, the overall length is 8 feet with a digging depth of 6 feet. This powerful attachment outperforms other backhoes in both production and strength, making it ideal for utility work, landscaping, and construction projects.

Features

  • 3 1/2" bore, 20" stroke cylinder - largest in the industry
  • 8' overall length when fully extended
  • 6' maximum digging depth

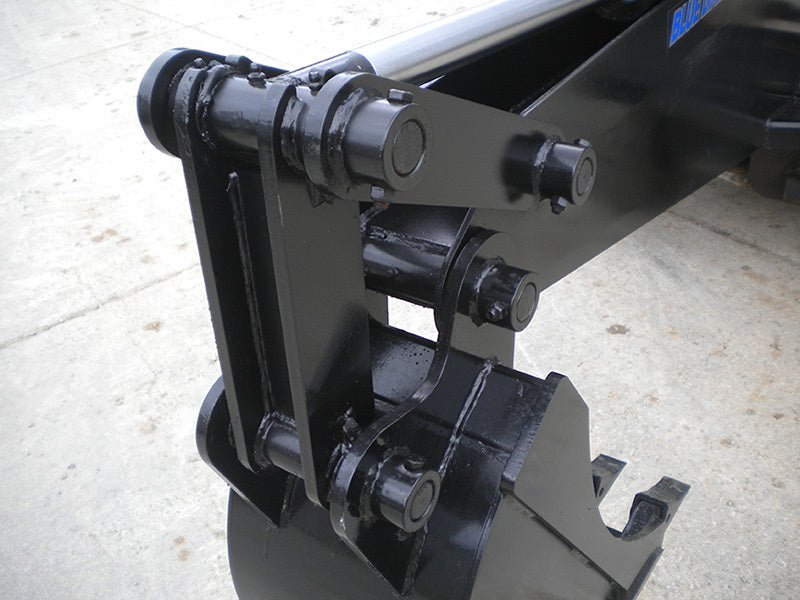

  • Advanced linkage geometry for exceptional bucket rotation and breakout force

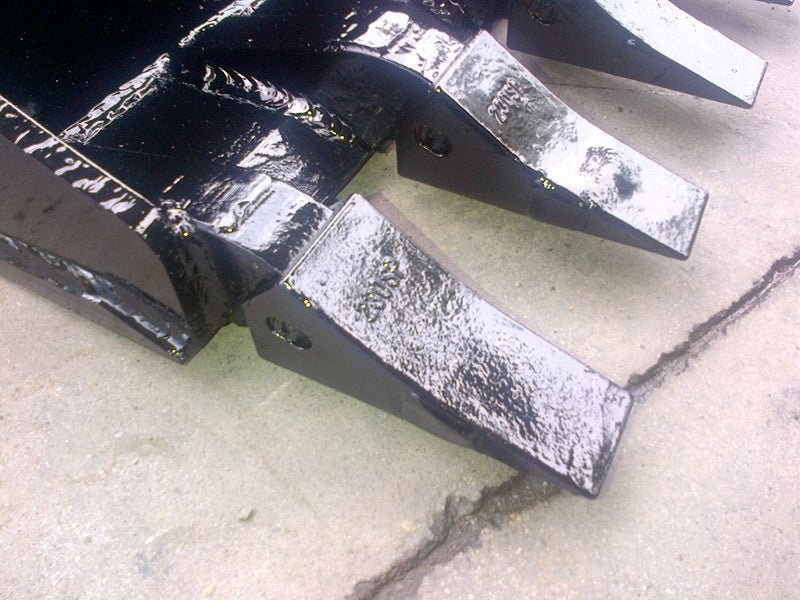

  • Replaceable side pin #230 cast teeth
  • Bucket sizes: 8", 9", 12", 18", 24", and 30"
  • Large capacity bucket design
  • Grease fittings on all pivot points
  • Includes flat face couplers
  • Quick on and off machine attachment
  • No specific machine requirements
  • Easy to operate
  • No electrical hookups required

Specifications

Part Number Model Weight
130005 Backhoe, Hydraulic (No Bucket) 391 lbs
130009 8" Backhoe Bucket 103 lbs
130010 9" Backhoe Bucket 103 lbs
130015 12" Backhoe Bucket 139 lbs
130020 18" Backhoe Bucket 169 lbs
130025 24" Backhoe Bucket 202 lbs
130027 30" Backhoe Bucket 202 lbs
