Shop Blue Diamond Attachments  |  SKU: 116207

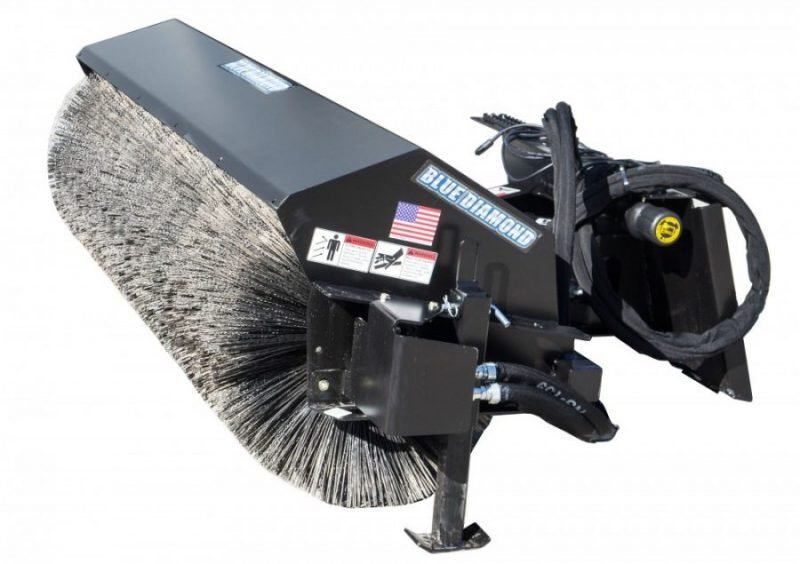

Blue Diamond Blue Diamond Series 2 Heavy Duty Rotating Angle Broom

$6,17000
Shipping calculated at checkout.
Options

The Blue Diamond® Series 2 Heavy Duty Rotating Angle Broom is available in manual and hydraulic.

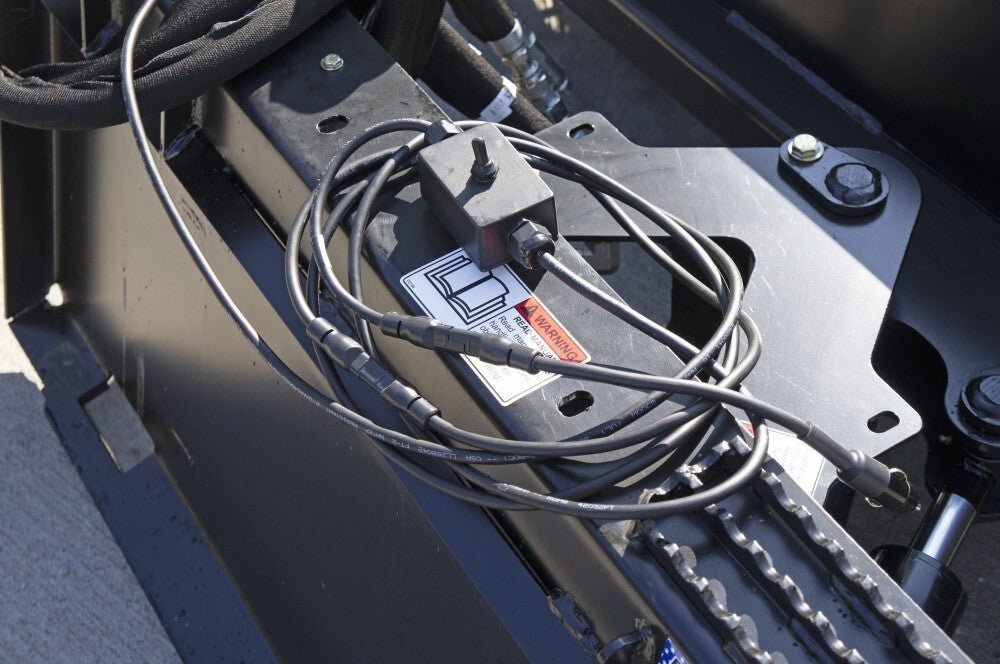

A simple to use control comes with the hydraulic angle model to control from inside the cab of your skid steer. The bristles are available in poly or poly-steel mix and are protected by retractable legs when not in use. Rental Recommended.

Features

  • 60″, 72”, 84”, and 96″ widths
  • 26” diameter bristles
  • Manual or hydraulic options

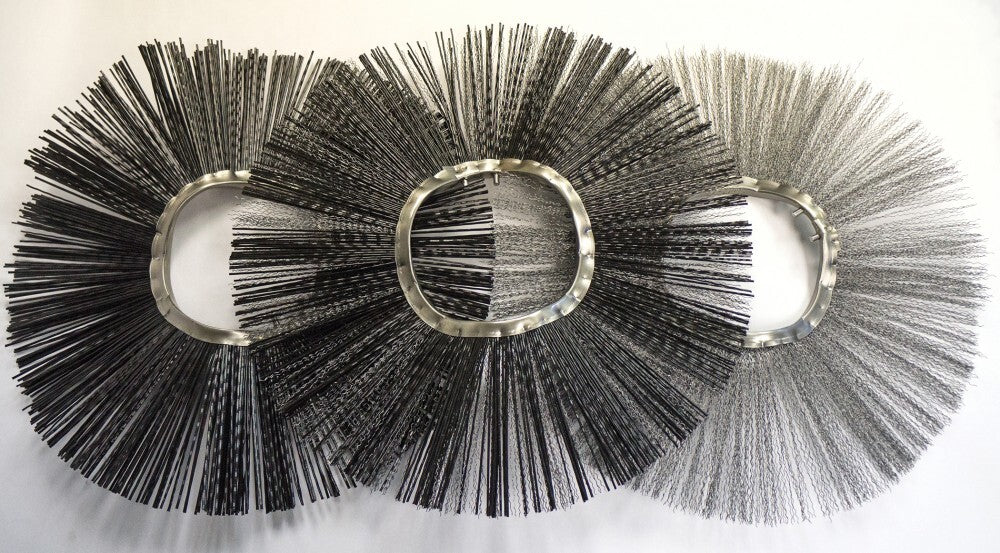

  • Poly or poly steel mix
  • Stands protect bristles when not in use
  • 14-pin OEM connector available
  • 1-year warranty

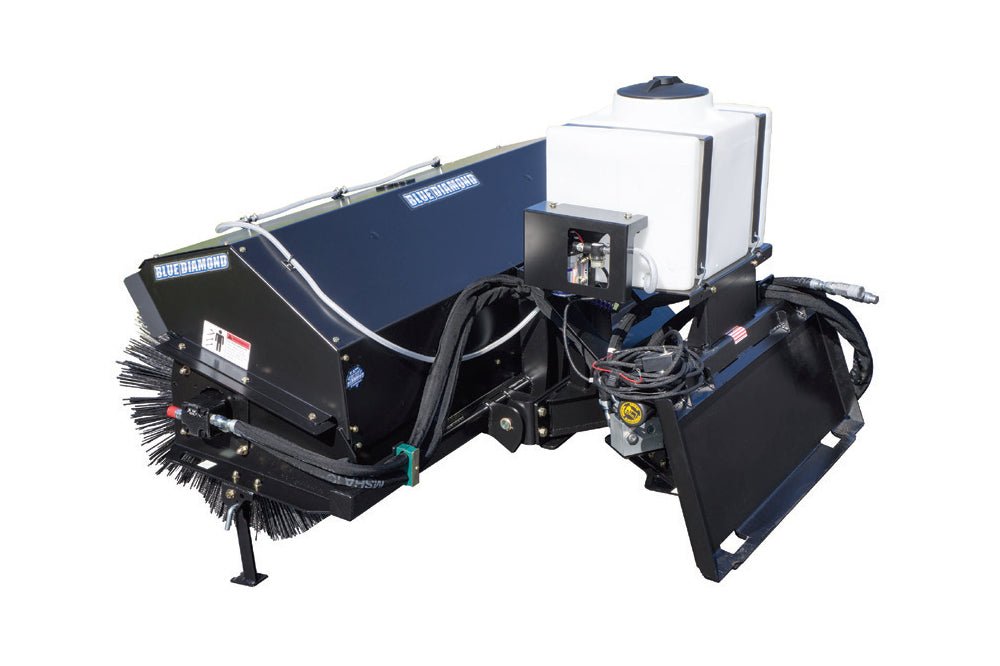

  • Optional water kit (25 gallon)
  • Pivot Angle of 30 degrees
ANGLE BROOM HD SERIES 2 MANUAL

ANGLE BROOM HD SERIES 2 SPEC SHEET

PART NUMBERS MODEL WEIGHT
116207 60" Manual Angle 620 lbs.
116212 72" Manual Angle 665 lbs.
116217 84" Manual Angle 811 lbs.
116222 96" Manual Angle 980 lbs.
116205 60" Hydraulic Angle (Requires Wiring Harness) 652 lbs.
116210 72" Hydraulic Angle (Requires Wiring Harness) 687 lbs.
116215 84" Hydraulic Angle (Requires Wiring Harness) 756 lbs.
116220 96" Hydraulic Angle (Requires Wiring Harness) 824 lbs.
