Shop Star Industries  |  SKU: 1360B

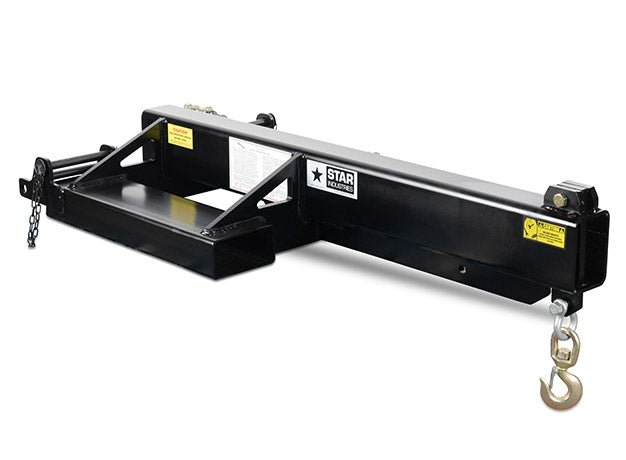

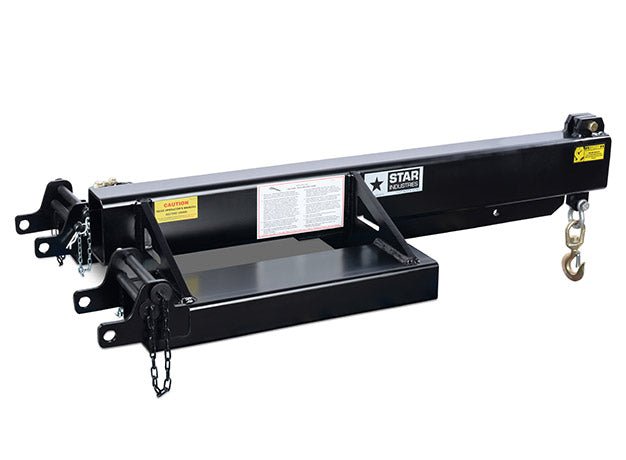

Star Industries Forklift Jib Boom

$2,77800
Shipping calculated at checkout.
Options

Extend the reach of your forklift

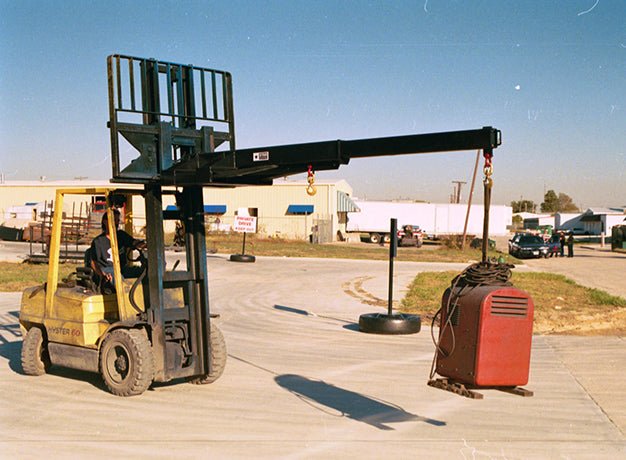

Extend the reach of your forklift with a Star Industries heavy duty forklift jib. The telescopic boom extends up to a massive 12 feet making it the perfect solution to place heavy loads over or under obstacles.

Features

  • Pull spring-loaded pin to telescope—release pin and boom locks in desired position
  • Internal stop ensures telescopic section cannot be accidentally pulled all the way out

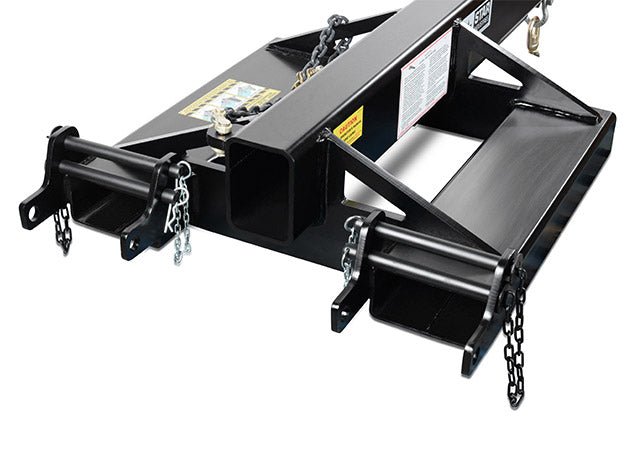

  • Jib slides on the forks and is pinned behind the heel to secure it to the forklift
  • Universal fit (slip-on-the forks) design permits use on most all forklifts
  • One bolted shackle and swivel hook is included

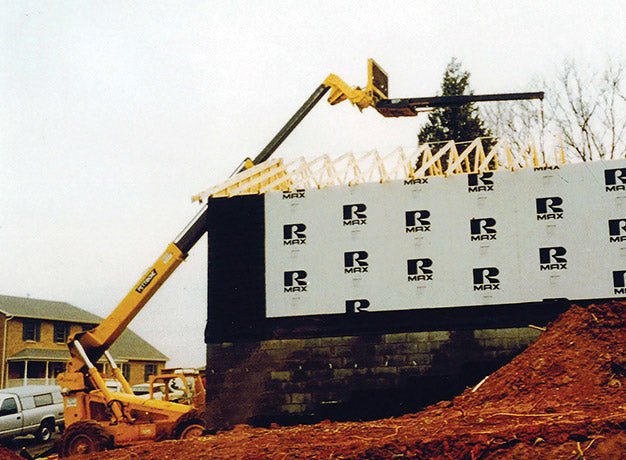

  • Suitable for straight-mast and extendable-reach type forklifts

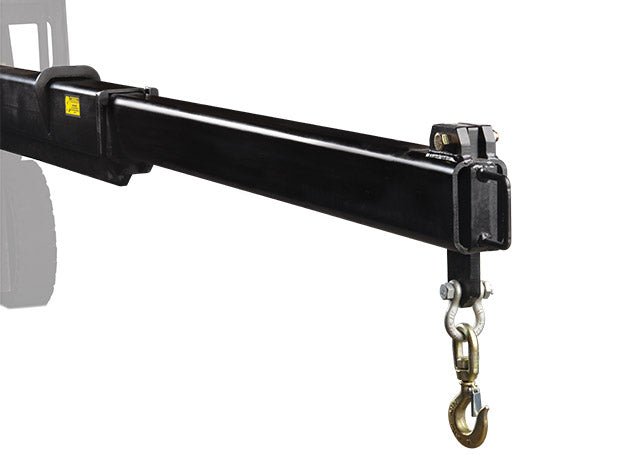

  • Telescopic two section tubular steel boom
  • Manually telescopes from 7′ to 12′

Specifications

Model 1360B
Max Load Capacity 6000 lbs. @ 4′
Empty Weight 585 lbs
Extends 7’ 0” to 12’ 0”
Vertical Center of Gravity Centerline
Horizontal Center of Gravity Fully retracted 36 5/16″
Horizontal Center of Gravity Extended midway 43 ¾”
Horizontal Center of Gravity Fully extended 54 7/16″

Hook Positions:

Hook Position 4 3 2 1
Distance 12′ 0″ 9′ 0″ 7′ 0″ 4′ 0″
Maximum load on a single hook 2,000 lbs. 3,000 lbs. 4,000 lbs. 6,000 lbs.

Fork Pocket Size:
30″ long x 7½” x 3½” ID

Center to Center of Fork Pockets:
24″ / Pocket Ends are open.

Fixed Length JIB Options:

Model Capacity Reach
1360B Varies (see chart on technical drawings tab) Varies (see chart on technical drawings tab)
1360B-5FXL 6,000 lbs. 5′ (ft)
1360B-6FXL 5,000 lbs. 6′ (ft)
1360B-7FXL 4,000 lbs. 7′ (ft)

Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.
