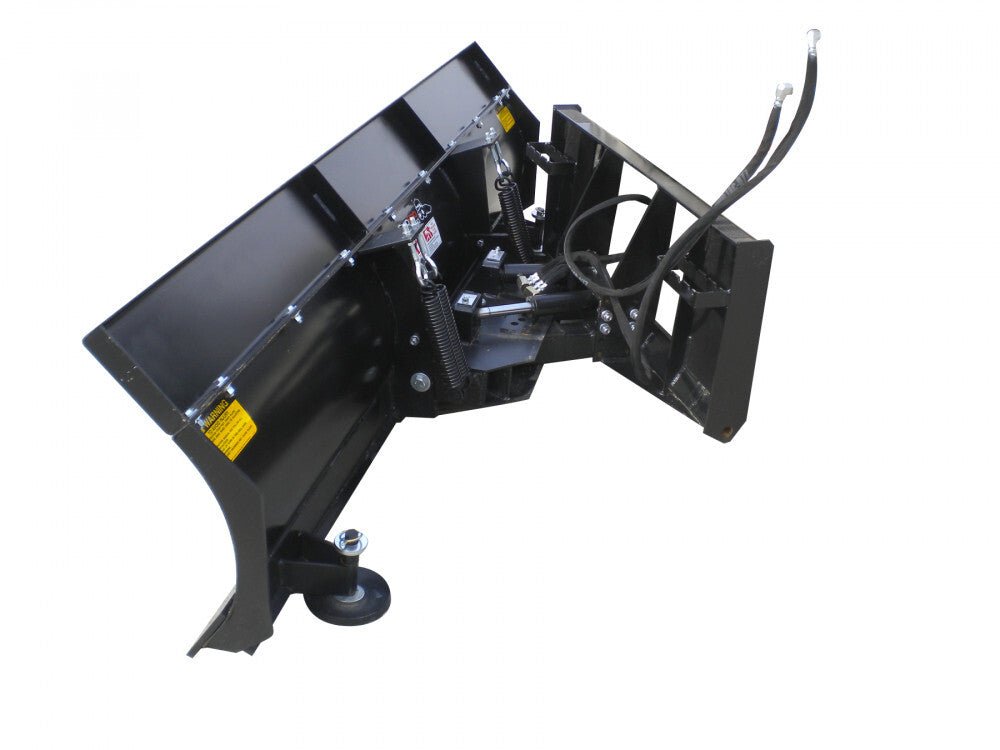

Blue Diamond Standard Duty Series 2 Multi-Purpose Blade

Regular price $5,42500
Shipping calculated at checkout.
Width

The Blue Diamond® Standard Duty Series 2 Multi-Purpose Blade for skid steers is great for snow and light dirt work.

At 22" tall, this blade is a great fit for most users and has an optional 8" height extension that can be bolted on for high-volume applications. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.

Features

  • Available in 72" and 84" widths
  • 22″ blade height
  • Optional bolt-on 8″ height extension
  • Full-trip mouldboard
  • Steel cutting edge
  • Hydraulic angle

Specifications

PART NUMBER STRAIGHT WIDTH ANGLED WIDTH ANGLE HEIGHT WEIGHT
123415 72" 62 1/4\" 30° 22\" 560 lbs
123420 84\" 72 1/2\" 30° 22\" 590 lbs
