Shop Digga  |  SKU: 1MDS2-3-ML

Digga Augers For Mini Loaders 0.85 - 1T

$2,43000
Shipping calculated at checkout.
Drive Options

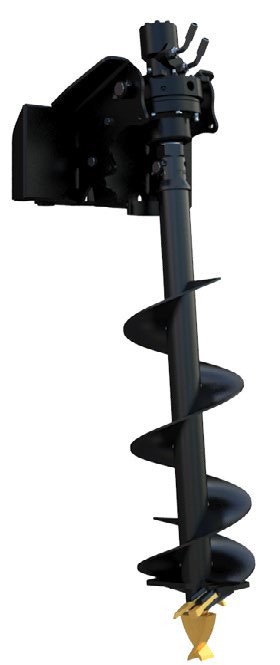

Digga Augers for 0.85 - 1 Ton Mini Loaders - ultimate in performance, quality and cost effectiveness.

Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga using only the highest-grade materials and strictest quality control. Backed by industry leading warranty and local factory support.

Important: Mounting plate is specific to make and model of Mini Loader. Please call +1 (800) 342-3876 to specify what machine the mount is attaching to.

Features

  • Compact Digga manufactured gearbox
  • Fitted with a Digga designed Eaton motor
  • 2 piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shafts pull out warranty
  • 5-year gearbox and 3-year motor warranty
  • Over 30 years design and manufacturing experience

Specifications - Model 1MDS

Specification Value
Torque (ft.-lbs. @ 3000 PSI) 2,119
Max Torque (ft.-lbs. @ 3500 PSI) N/A
Recommended Flow (GPM) 6-16
Motor Type Eaton
Max Pressure 3000 PSI @ 11 GPM
Max Flow 15 GPM @ 2300 PSI
Max Horsepower 20
Pressure Relief Valve Optional
Standard Output Shaft 2" Hex
Halo Optional
Recommended Auger A4 / RC4
Max Drilling Diameter (Clay / Shale) 12"
Max Drilling Diameter (Earth) 24"
Dimensions (LxD) 16.6" x 8"
Weight 72 lbs

Max/min drilling diameter dependent on ground conditions. Guide is a recommendation only.

Performance Specifications - Model 1MDS

Output Speed Output Torque
GPM RPM PSI FT-LBS
6 26 1,500 1,060
8 35 1,700 1,201
10 43 1,900 1,342
12 52 2,100 1,484
14 61 2,300 1,625
16 69 2,500 1,766
- - 2,700 1,907
- - 2,900 2,049
- - 3,100 2,190
- - 3,300 2,331
- - 3,500 2,473
