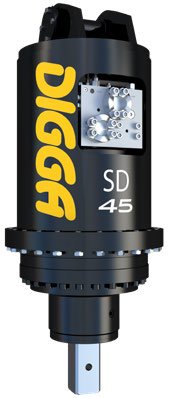

Digga Augers For Excavators 15-30T

Digga's range of drilling augers for 15-30t excavators are the ultimate in performance, quality and cost effectiveness.

Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with a radial piston motor, an integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.

Features

• 2-speed drive system for versatile drilling applications
• Compact high torque Digga manufactured gearbox
• Radial piston motor with integrated pressure relief valve (PRV) - Eliminates the need for bulky valve blocks
• Reduces potential leak points for improved reliability
• ECV (Energy Control relief Valve) fitted standard
• Extreme duty shaft locking system
• No complex hoses, valving or filtration required
• Can also be used as a screw anchor drive
• Max torque: 32,892 - 50,465 FT-LBS @ 3,500 PSI (model dependent)
• Max pressure: 3,500 PSI @ 100 GPM
• Max flow: 100 GPM @ 3,500 PSI
• Standard output shaft: 100 mm Square
• 1 year gearbox & 1 year motor warranty
• American made quality - Manufactured by Digga in America

Specifications
