Shop Digga  |  SKU: XO20IH-2F

Digga Auger Bit Extensions

$37000
Shipping calculated at checkout.
Extension Type
Hub Type
Length

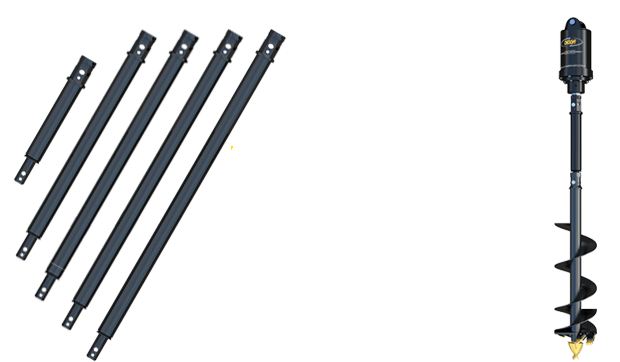

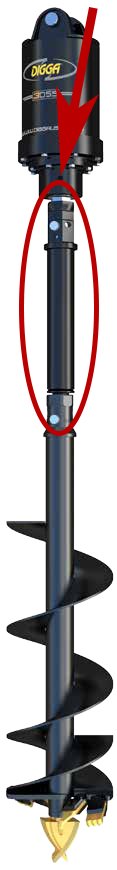

Increase the drilling depth of your auger bit with a Digga extension.

Available for drive units with 2" hex, 2.5" hex, 3" hex, and 100mm square shafts. Outer and inner extensions come in sizes ranging from 2', 3', 4', 6', 8' and 10' lengths.

Features

  • Easy fit design - no adapters required for faster connection and disconnection
  • Welded hub and shaft reduces excess play in connections for straighter holes
  • Telescopic design (XT25 & XT40) - inner extensions slide inside outer extensions and augers for easier transport and storage
  • Various lengths available: 2 ft. / 3 ft. / 4 ft. / 6 ft. / 8 ft. & 10 ft.
  • American made quality - manufactured in-house by Digga using highest-grade materials and strictest quality control

Specifications

Specification XO20 XO25 XT25 XO30 XO40 XT40 XO40-HD
Type Outer Outer Telescopic (Inner) Outer Outer Telescopic (Inner) Outer
Auger Bit Suitability A4 / RC4 A6 / RC6 / DR6 / A8 / RC8 A6 / RC6 / DR6 / A8 / RC8 RC10 RC11 RC11 RC11
Drive Suitability 1MDS - 4DSS 4DDS - 7DDS 4DDS - 7DDS 9DDS - 16DDS 20DDS - 30DDS 20DDS - 30DDS SD45 - SD70
Machine Suitability Up to 4.5 ton Up to 15 ton Up to 15 ton 13 - 16 ton Up to 30 ton Up to 30 ton Up to 50 ton
Maximum Torque 5000 ft.-lbs. 11500 ft.-lbs. 7000 ft.-lbs. 16100 ft.-lbs. 30800 ft.-lbs. 30800 ft.-lbs. 70000 ft.-lbs.
Standard Hub 2.0 in. Hex 2.5 in. Hex 2.5 in. Hex 3.0 in. Hex 100 mm Square 100 mm Square 100 mm Square
Body - Dia x Wall (in.) 3.5" x 0.3" 5.5" x 0.337" 2.5 in. Hex 6.75" x 0.375" 8.625" x 0.322" 100 mm Square 8.625" x 0.5"
Length Options (ft.) 2' / 3' / 4' / 6' / 8' 4' / 6' / 8' / 10' 4' / 6' / 8' 4' / 6' / 8' / 10' 6' / 8' / 10' 6' / 8' / 10' 6' / 8' / 10'
Availability Stock Item
