Shop Blue Diamond Attachments  |  SKU: 108776

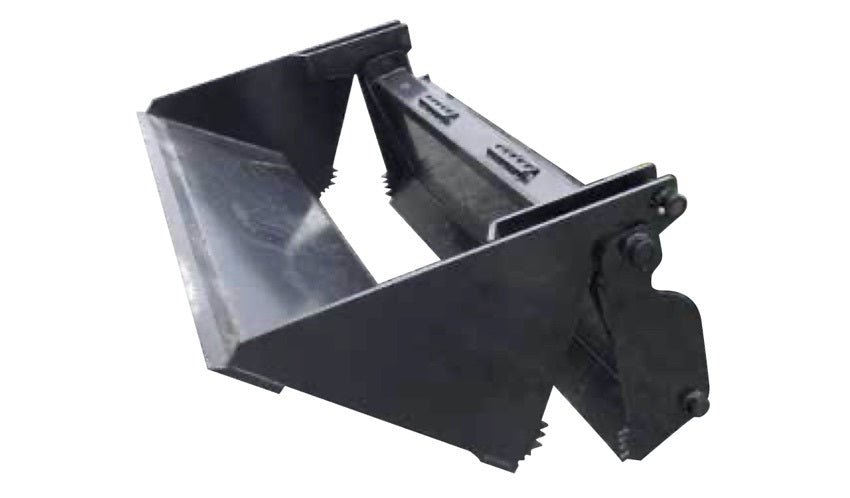

Blue Diamond Skid Steer 4-In-1 Bucket

$5,61400
Shipping calculated at checkout.
Size
Options

The Blue Diamond® Skid Steer 4 in 1 Bucket has set the standard with this extremely durable attachment.

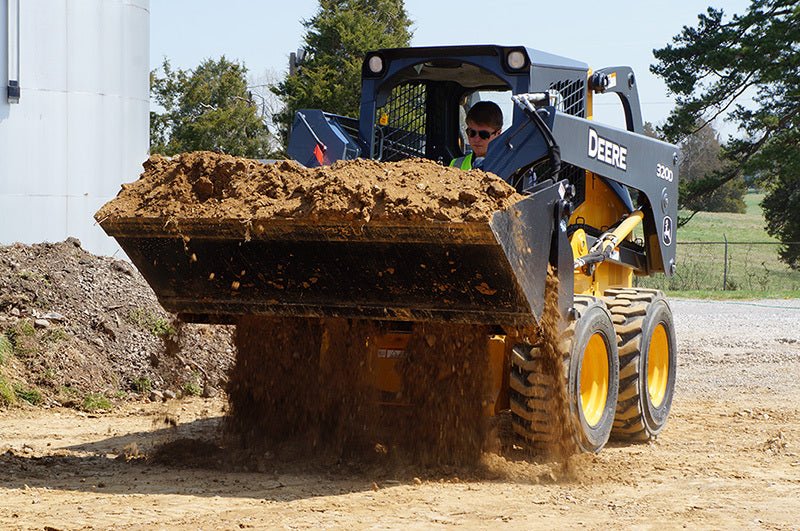

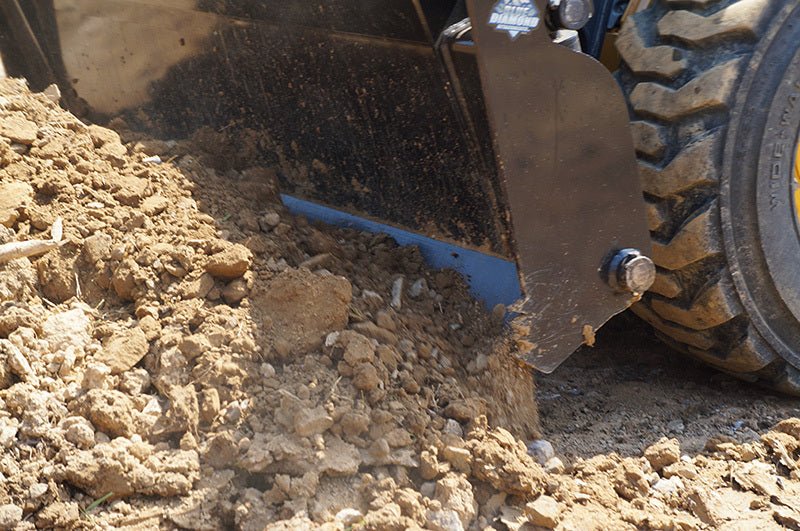

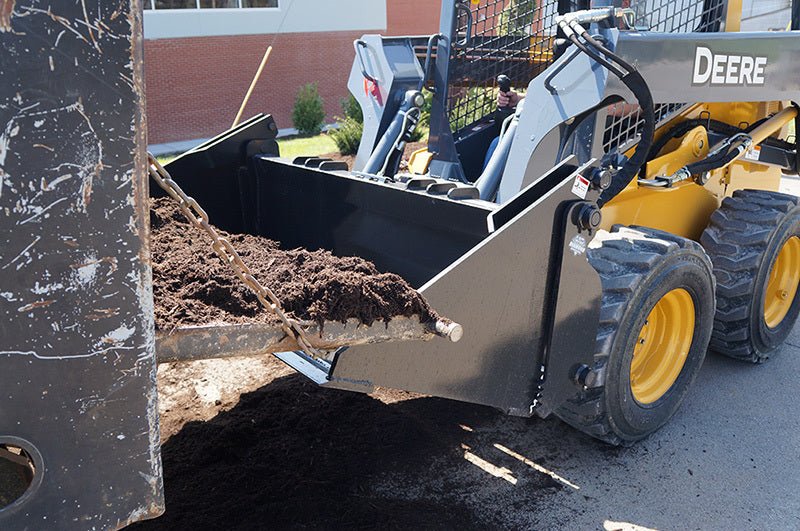

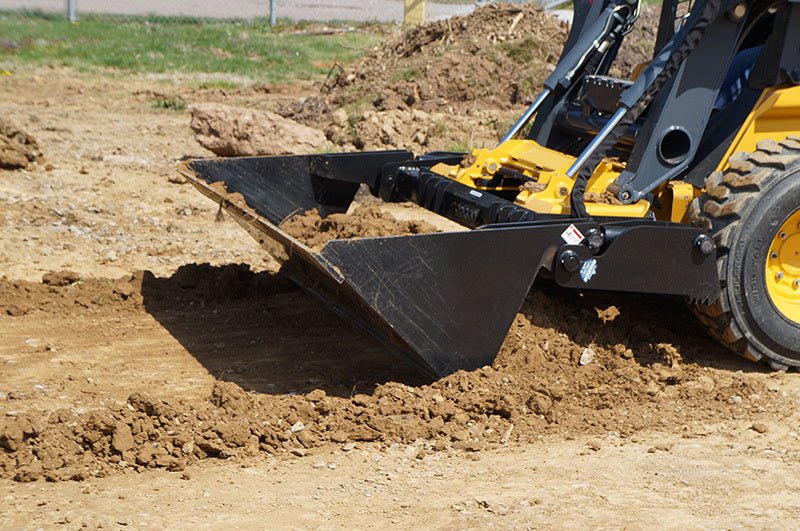

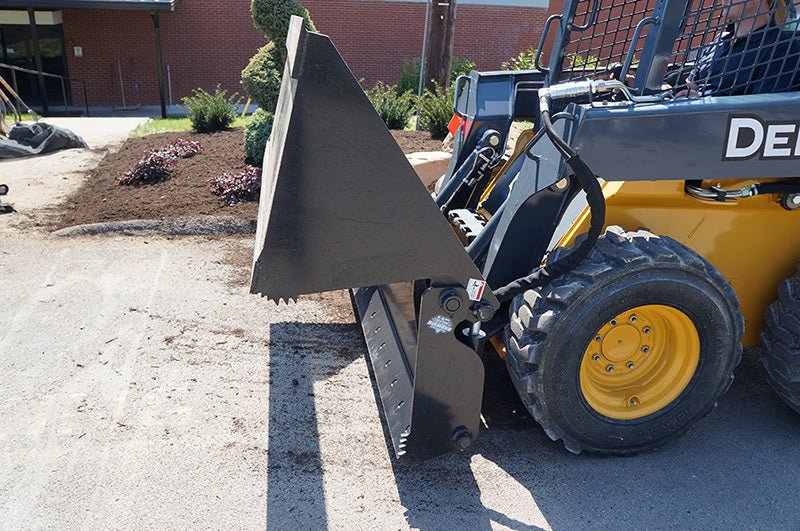

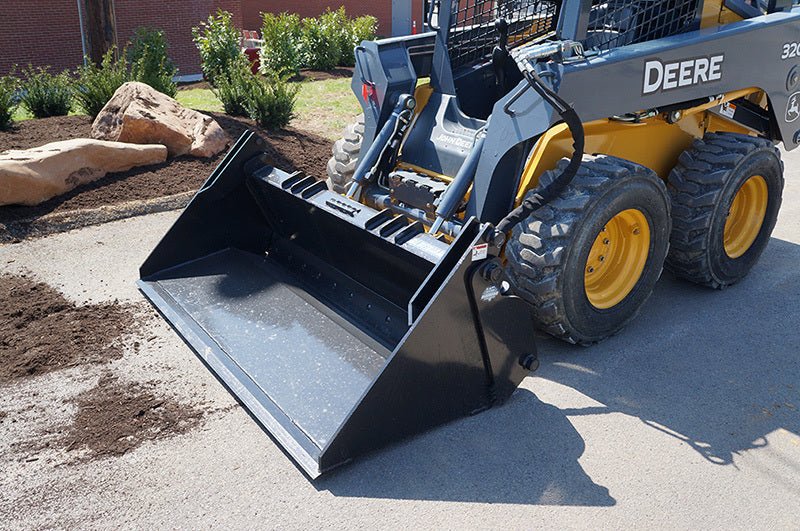

It will make a skid steer or compact track loader into a very versatile machine. It can be used as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket, or back drag with the open bucket like a box blade. It uses 2 powerful cylinders and can be greased on all pivot points. Pilot operated check valve to control drifting is available. Other options available are teeth or a bolt-on edge. The hose routing keeps the hoses out of the pinch point, and the oversize pins and bushings with grease fittings will keep this attachment functioning effectively for many years! Rental Recommended.

Features

  • Protected hoses
  • Standard bolt-on edge on dozer portion
  • Front bolt-on edge available

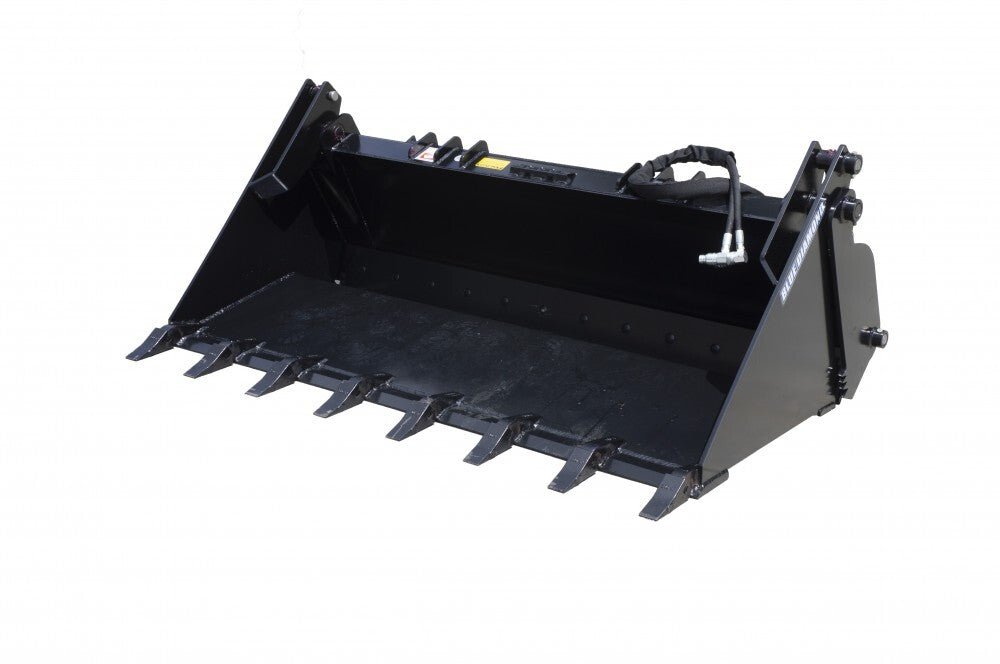

  • Weld on shanks and teeth available

Specifications

PART NUMBER MODEL WEIGHT STRUCK CAPACITY
108780 66" 4-in-1, W/Smooth Edge 862 lbs 13.9 cu ft
108785 72" 4-in-1, W/Smooth Edge 908 lbs 15.2 cu ft
108790 78" 4-in-1, W/Smooth Edge 979 lbs 16.5 cu ft
108795 84" 4-in-1, W/Smooth Edge 1,004 lbs 17.7 cu ft
108776 60" 4-in-1, W/Teeth 855 lbs 12 cu ft
108781 66" 4-in-1, W/Teeth 750 lbs 13.9 cu ft
108786 72" 4-in-1, W/Teeth 981 lbs 15.2 cu ft
108791 78" 4-in-1, W/Teeth 959 lbs 16.5 cu ft
108796 84" 4-in-1, W/Teeth 932 lbs 17.7 cu ft
